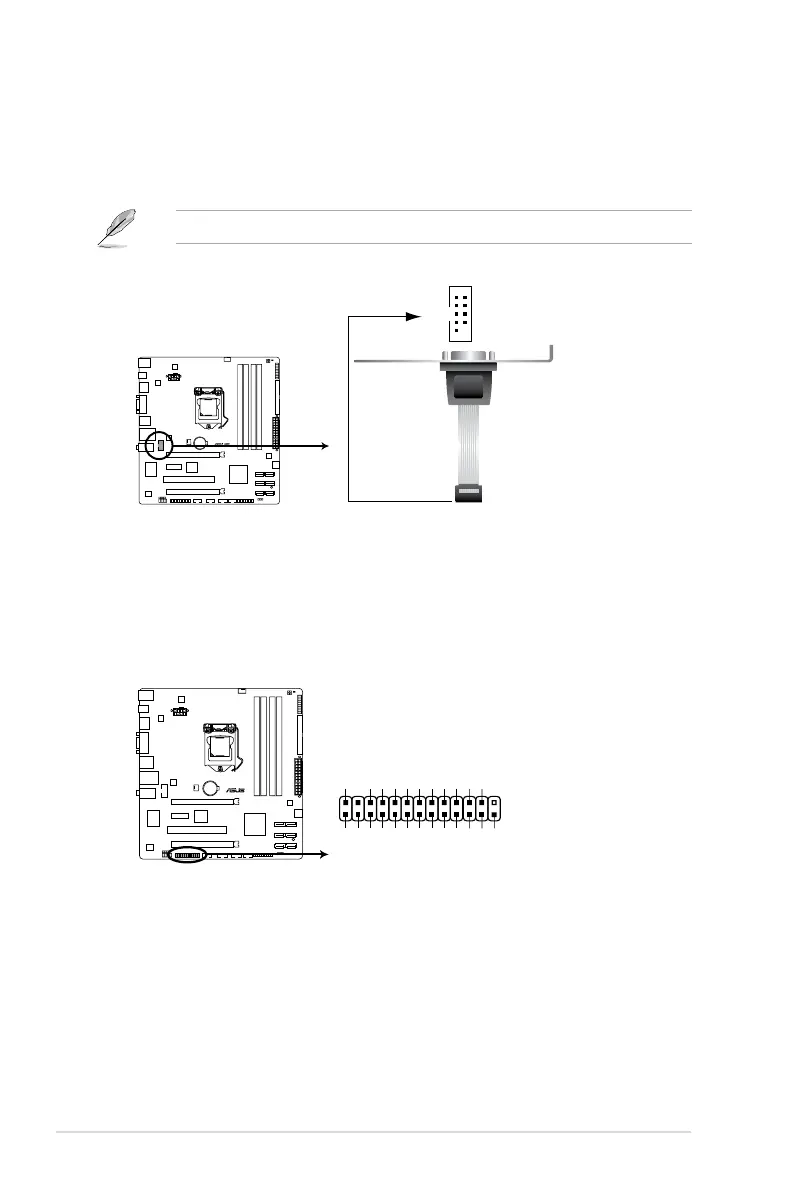

1-24 Chapter 1: Product introduction
4. Serial port connectors (10-1 pin COM1)
The connector is for a serial (COM) port. Connect the serial port module cable to the
connector, then install the module to a slot opening at the back of the system chassis.
The serial port bracket (COM1) is purchased separately.
P8H67-M
P8H67-M Serial port (COM1) connector
PIN 1
COM1
5. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT
standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
P8H67-M
P8H67-M Parallel Port Connector
PIN 1
LPT
STB#
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
ACK#
BUSY
PE
SLCT
AFD
ERR#
INIT#
SLIN#
GND
GND
GND
GND
GND
GND
GND
GND

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8H67-M LE and is the answer not in the manual?

Asus P8H67-M LE Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel H67
CPU SocketLGA 1155
Maximum Memory32GB
Memory TypeDDR3
PCIe x16 Slots1
PCIe x1 Slots2
PCI Slots1
Audio ChipsetRealtek ALC887
LAN ChipsetRealtek 8111E
Max. LAN Speed10/100/1000Mbps
RAID SupportRAID 0, 1, 5, 10
Memory Slots4
Memory StandardDDR3 1333/1066 MHz
SATA 6Gb/s2
USB 2.0 Ports10
USB 3.0 Ports2
Audio Channels8
Video PortsDVI, VGA
