Asus P8H67-M LE User Manual

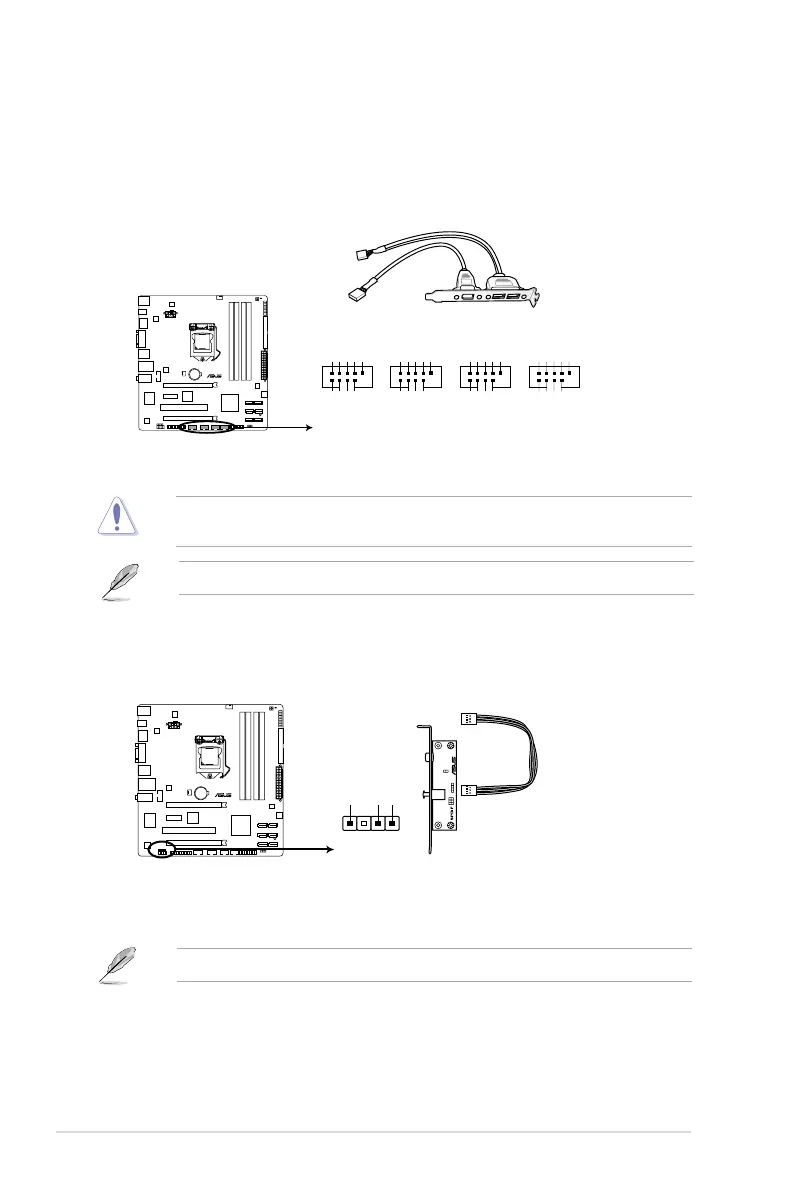

1-26 Chapter 1: Product introduction
7. USB connectors (10-1 pin USB78, USB910, USB1112, USB1314 )
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with the USB 2.0 specication that supports up
to 480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
P8H67-M
P8H67-M USB2.0 connectors
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11-
USB_P11+
GND
USB1112
PIN 1
USB+5V USB_P14- USB_P14+ GND NC
USB+5V
USB_P13-
USB_P13+
GND
USB1314
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
8. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
SPDIF_OUT
+5V SPDIFOUT GND
P8H67-M
P8H67-M Digital audio connector
The S/PDIF module is purchased separately.

Asus P8H67-M LE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
Audio Chipset	Realtek ALC887
LAN Chipset	Realtek 8111E
Max. LAN Speed	10/100/1000Mbps
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Standard	DDR3 1333/1066 MHz
SATA 6Gb/s	2
USB 2.0 Ports	10
USB 3.0 Ports	2
Audio Channels	8
Video Ports	DVI, VGA
