Asus P9D-E/4L User Manual

ASUS P9D-E/4L
2-9

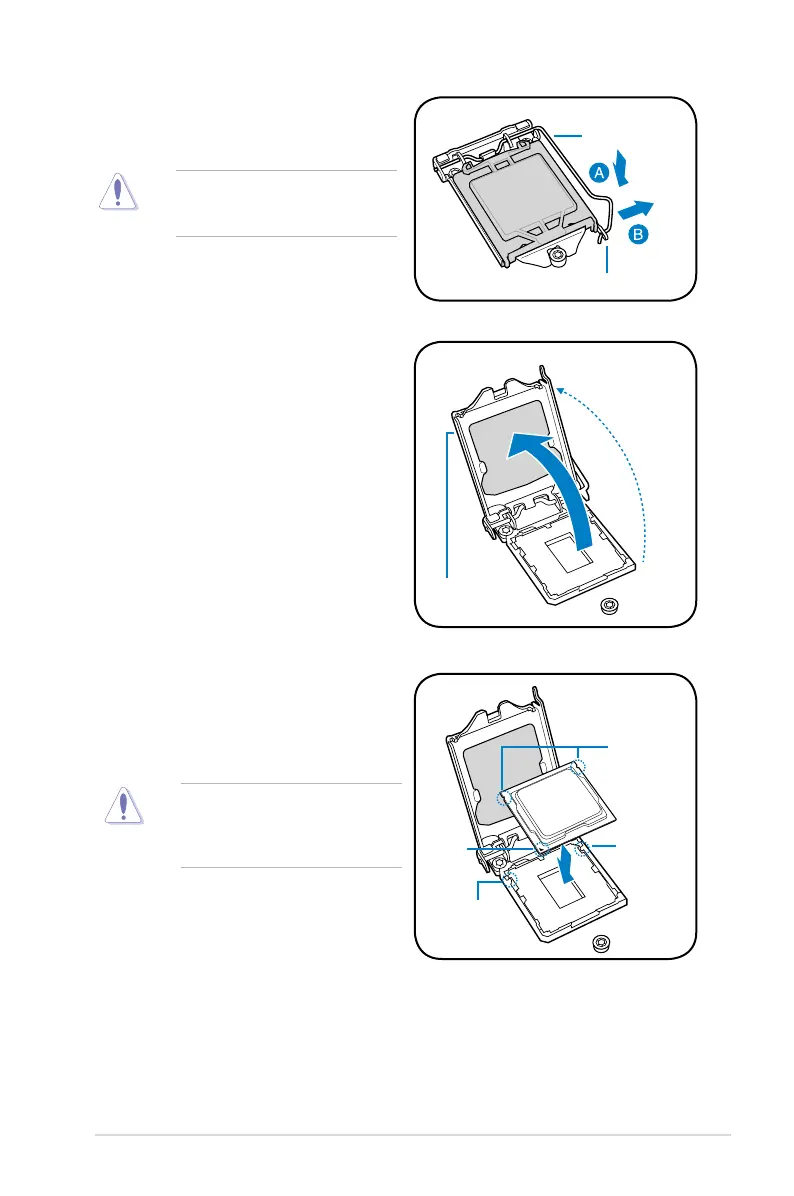

Do not remove the PnP cap yet from
the CPU socket. Doing so may bend
the pins of the socket.
Retention tab
Load lever
2. Press the load lever with your thumb
(A), then move it to the right (B) until it is
released from the retention tab.
3. Lift the load lever until the load plate is
completely lifted.
Load plate
4. Position the CPU above the socket,
ensuring that the gold triangle mark is
on the bottom-left corner of the socket,
then fit the CPU notches to the socket's
alignment keys.
The CPU fits in only one orientation.
DO NOT force the CPU into the
socket to prevent bending the pins on
the socket and damaging the CPU.
Gold
triangle
mark
CPU notches
Alignment
key
Alignment
key

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
