Chapter 2: Hardware information

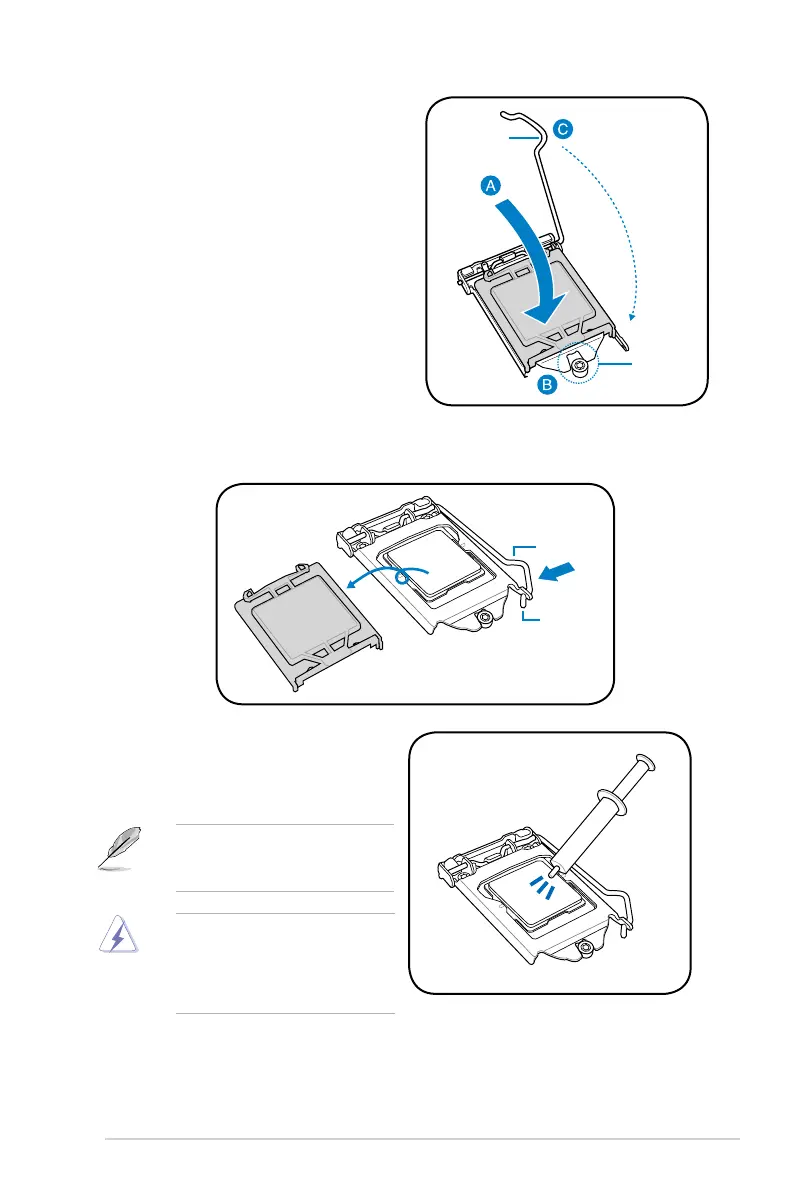

5. Close the load plate (A), ensuring that
the front edge of the load plate slides
under the retention lock (B) then push
down the load lever (C).
Retention
lock
Load lever
6. Insert the load lever under the retention tab to remove the PnP cap from the CPU
socket.
Retention tab
Load lever
7. Apply some Thermal Interface Material
to the exposed area of the CPU that the
heatsink will be in contact with, ensuring
that it is evenly spread in a thin layer.
Some heatsinks come with pre-
applied Thermal Interface Material. If
so, skip this step.
The Thermal Interface Material is
toxic and inedible. DO NOT eat it. If
it gets into your eyes or touches your
skin, wash it off immediately and seek
professional medical help.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
