18

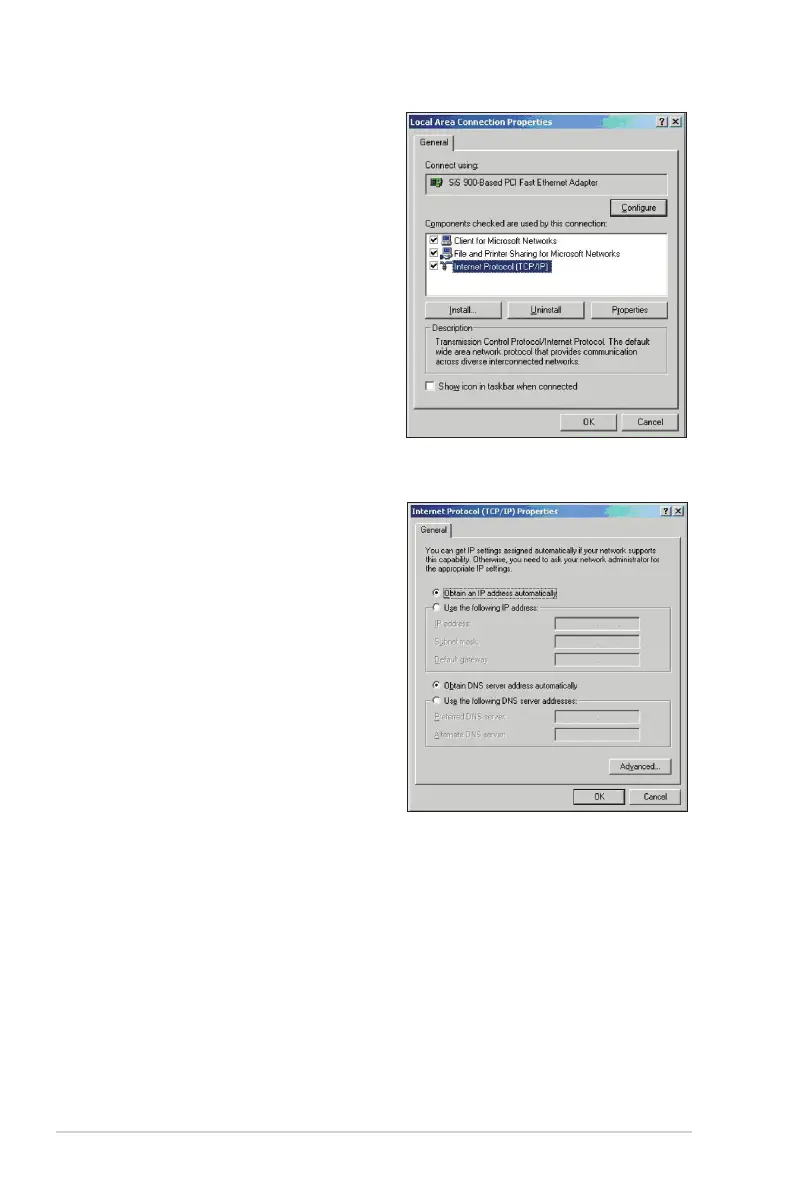

RT-N10E Chapter 3: Conguring the clients
Windows
®
2000
1. Click Start > Control Panel >
Network and Dial-up Connection.
Right-click Local Area Connection
then click Properties.
2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.

Other manuals for Asus RT-N10E

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus RT-N10E and is the answer not in the manual?

Asus RT-N10E Specifications

General IconGeneral
Frequency Band2.4 GHz
Max Data Rate150 Mbps
LAN Ports4 x 10/100 Mbps
WAN Ports1 x 10/100 Mbps
Operating Temperature0 °C to 40 °C
Wireless StandardIEEE 802.11b/g/n
Security64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
FirewallSPI Firewall
Storage Temperature-20°C to 70°C
Antenna1 external antenna
Storage Humidity5% to 90% non-condensing
