ASUS TS700-E9 Series
4-7

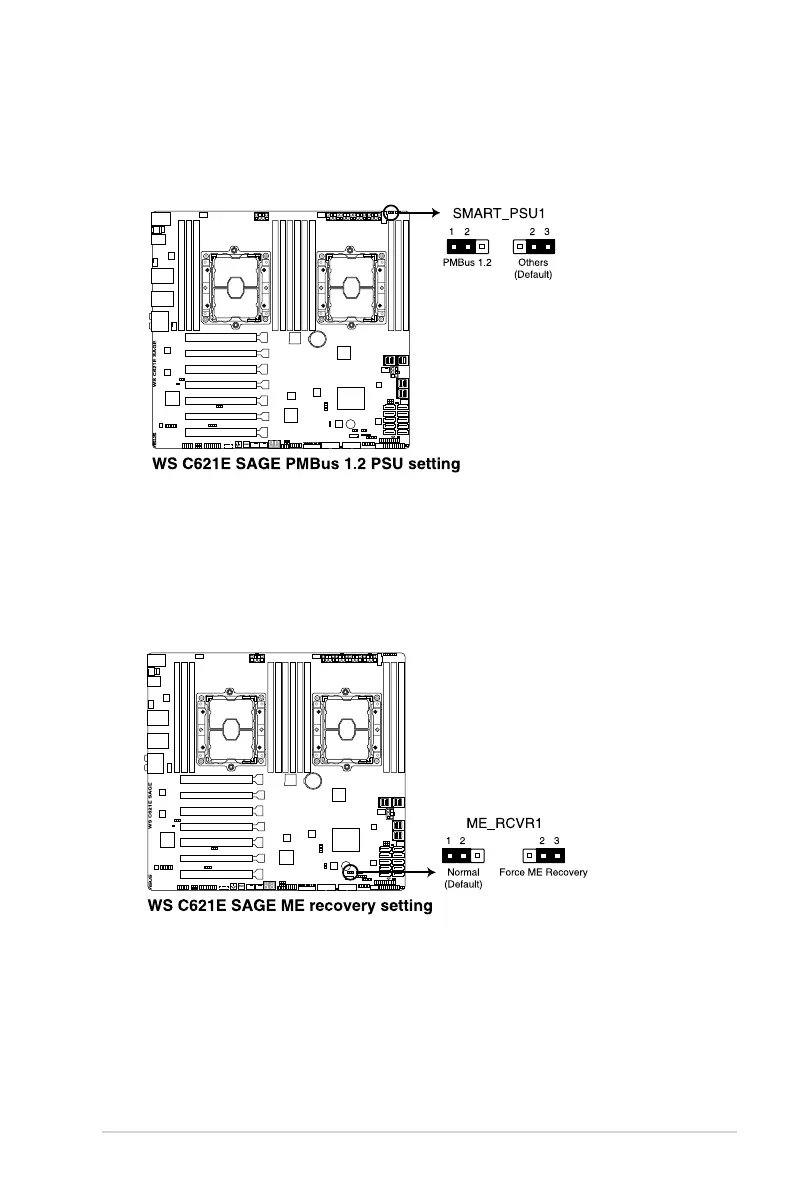

4. PMBus 1.2 PSU select jumper (3-pin SMART_PSU1)
This jumper allows you to select PSU PMBus version. Set to pins 1–2 for PMBus, set
to pins 2–3 for others.
5. ME firmware force recovery setting (3-pin ME_RCVR1)
This jumper allows you to quickly recover the Intel Management Engine (ME) rmware
when it becomes corrupted.
