Chapter 4: Motherboard Information
4-12

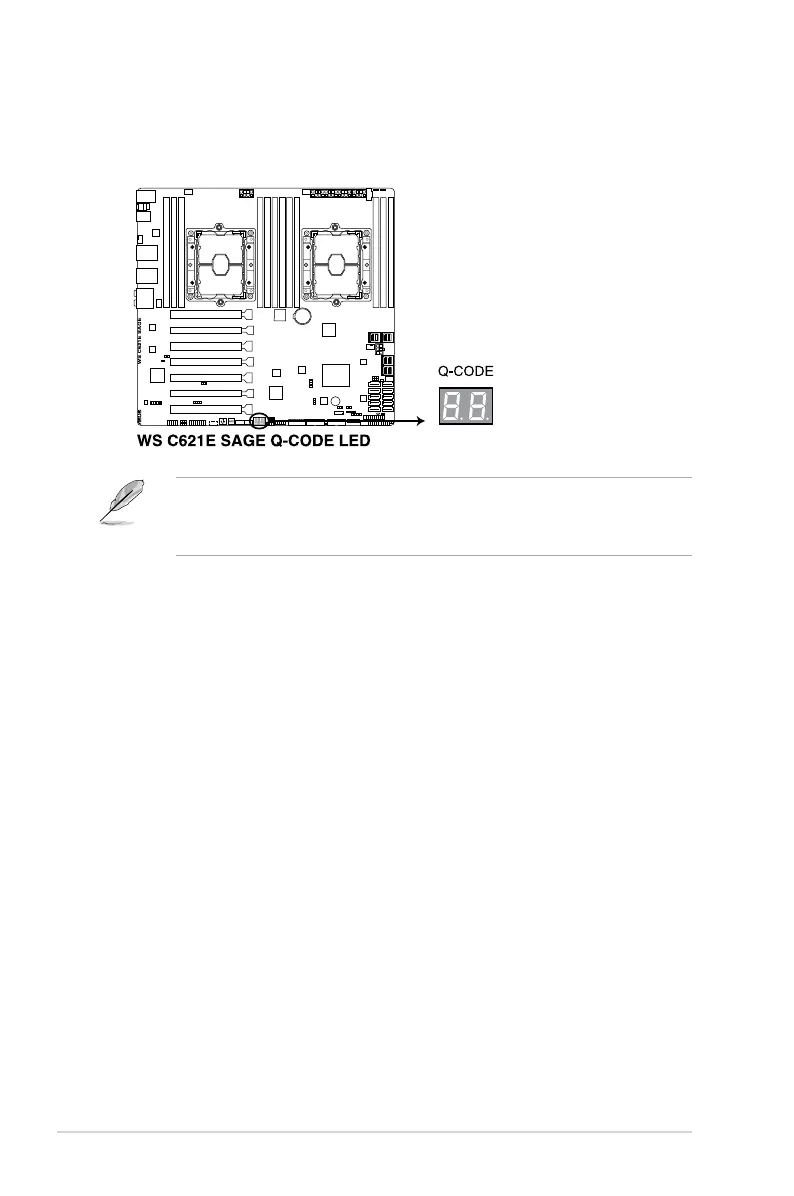

5. Q-Code LEDs
The Q-Code LED design provides you with a 2-digit error code that displays the system
status. Refer to the Q-Code table on the next page for details.
• The Q-Code LEDs provide the most probable cause of an error code as a starting
point for troubleshooting. The actual cause may vary from case to case.
• Please refer to the Q-Code table in the Appendix section for more details.
To Next Page
