2.1.3 Using the C-clamp arm

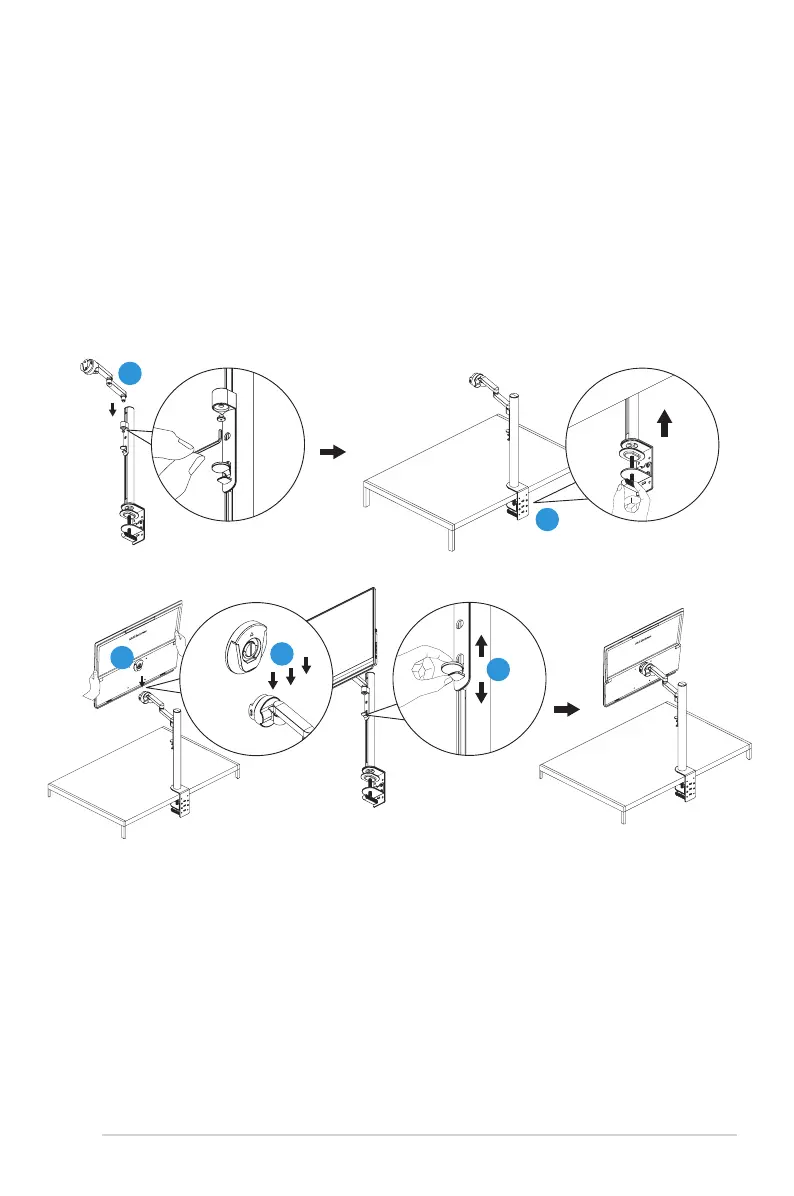

1. Install the z-axis adjustable clip to the C-clamp arm. Then attach the
screwandsecureitusinganL-shapedscrewdriver.
2. Install the C-clamp arm to your desk. Then tighten the hand screw to
secure the pole in place.
3. Fold the the kickstand upward and install the tripod socket to the rear
of the monitor. Then tighten the hinged D-ring screw to secure the
tripod socket in place.
4. Attachthetripodsocketofthemonitortotheclip.
