18

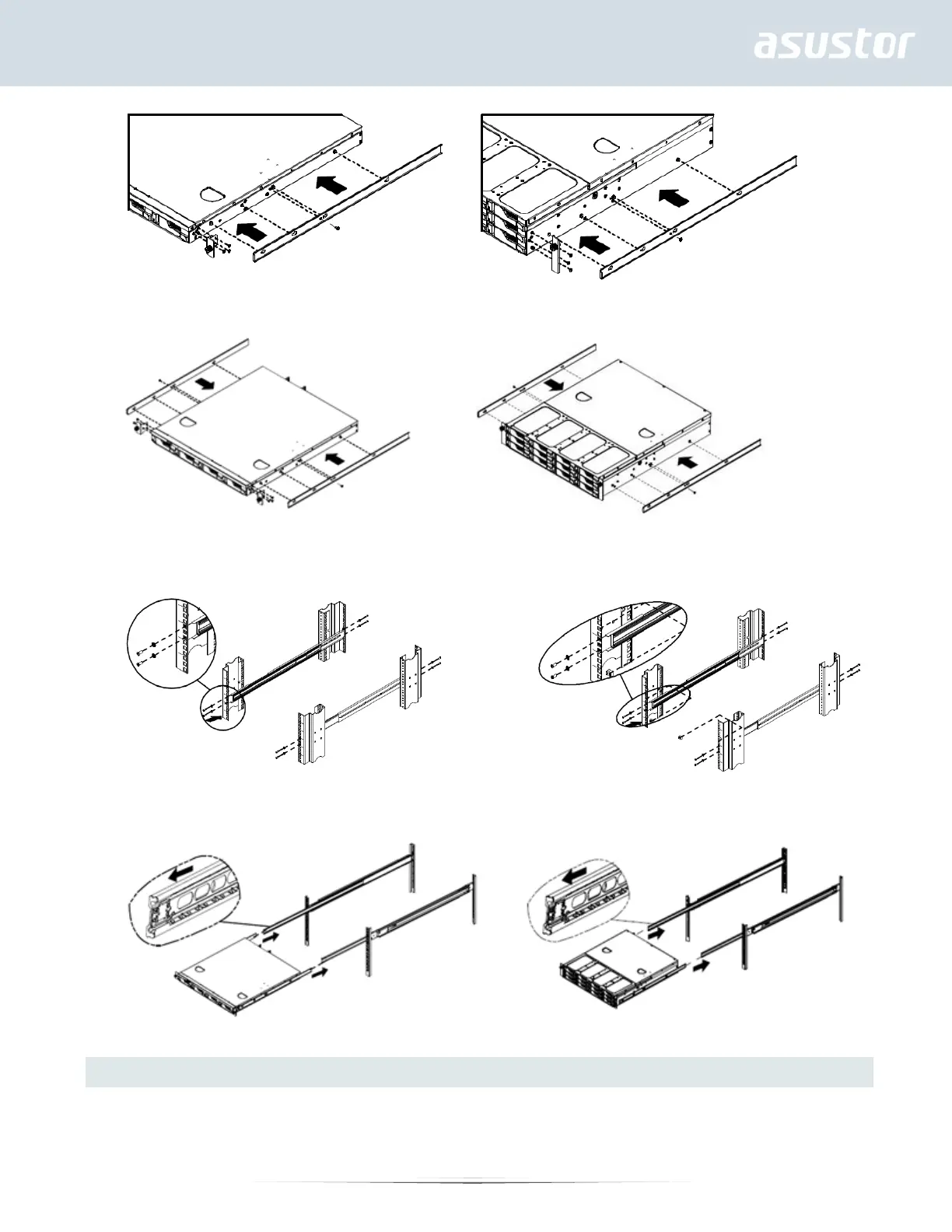

Mount the inner rails to the system chassis using the provided mounting screws.
Mount the outer rail assembly to your rack. Please note that both the front and back of the outer rail assembly will
need to be fastened to the rack with two screws.
Align the rails and push the system chassis all the way into the rack.
Replace Malfunctioning PSU
1. Unplug the power cord from the PSU to be replaced.
AS6504RD AS6512RD
