ASV RT-30 - Electrical System; Engine; Undercarriage; Views

3 TECHNICAL DATA
32

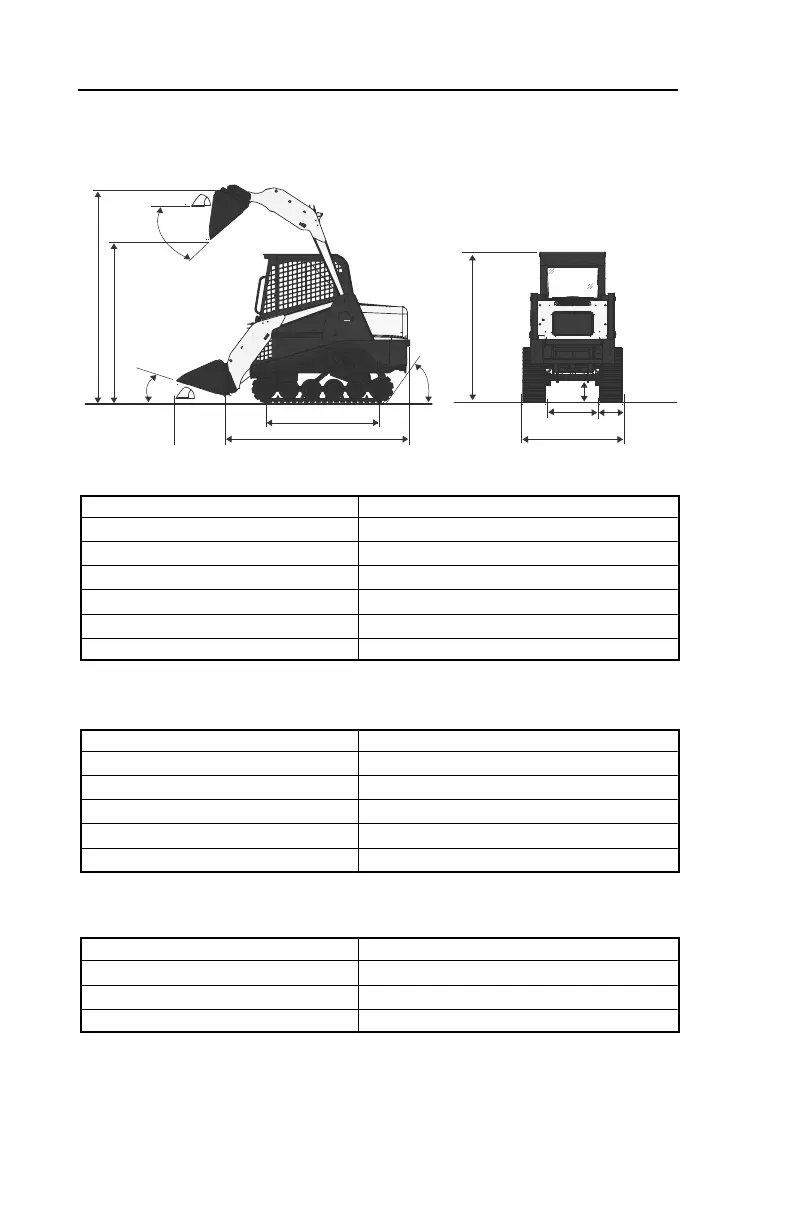

3.2 Views
3.3 Engine
3.4 Electrical System
3.5 Undercarriage
r0
70
t
55 in (1397 mm)
101 in (2565 mm)
77 in (1962 mm)
55º
18º
90.5 in (2299 mm)
40º
Make
Perkins
Type
403-D15
Design
Diesel, 3 cylinder, normally aspirated
Displacement
92 in.³ (1.5L)
Power
33.7 hp (25.1 kW) @ 2800 RPM
Admissible inclined Positions
20° in all directions (engine)
Coolin
g
Water-antifreeze for all-
y
ear o
p
eration
Operating Voltage
12 V
Battery
12V 750 CCA
Alternator
12V 65A
Starter
12V
Starting Aid
Glow Plugs, w/manual pre-heating relay
Lighting System
Cab mounted work lights
Type
Suspended,rubbertrackw/screwtension
Travel Speed (max)
6.5mph(10.5kph)
Power Transmission
fixeddisp./radialpistonmotor
Track length, on ground
55in.(139.7cm)
RT-30 US-AUS / R070T US O&M
0404-642 2017-01
72.5 in (1840 mm)
48 in (1219 mm)
26 in (660 mm)
11 in
(279 mm)
10 in
(254 mm)
32.7 hp (24.4 KW)
