7.4 Lubrication Points

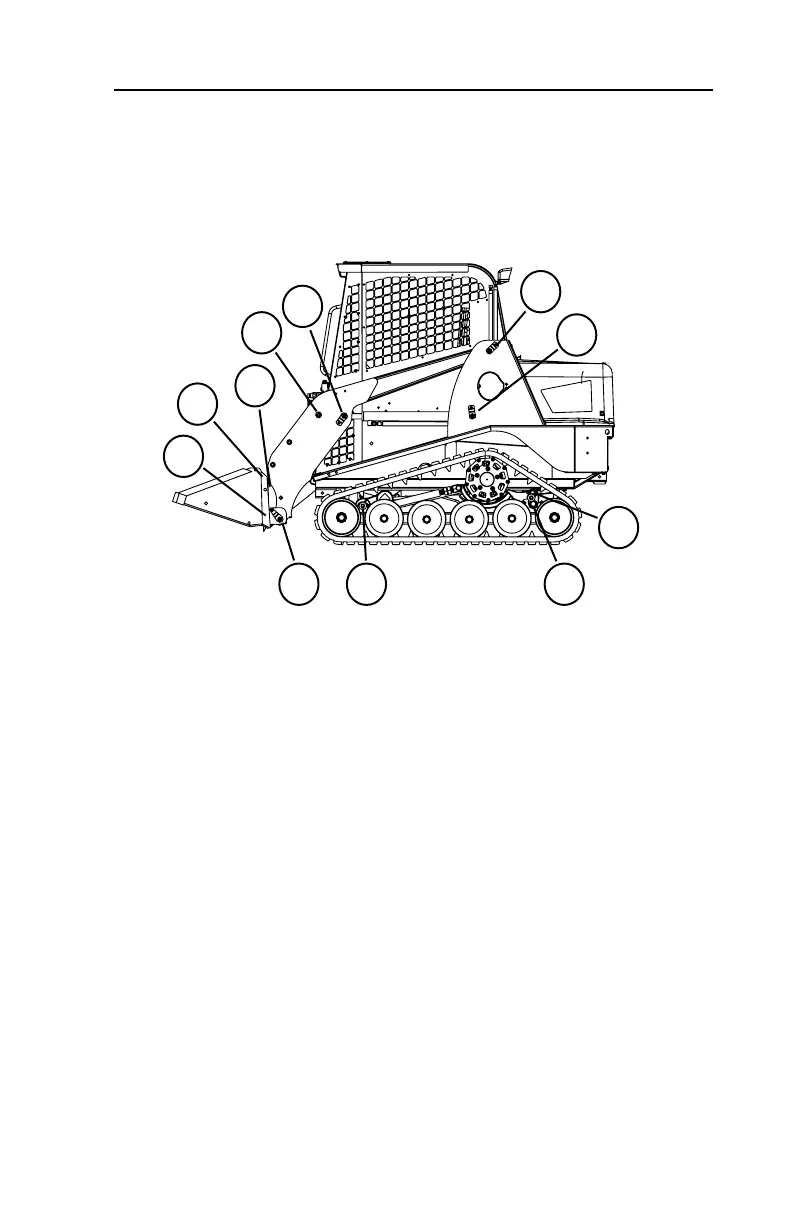

The illustration below shows the location of grease points found on the left side of
the machine. Identical points also exist on the opposite side of the machine.
Lubricate all points daily, prior to operation.
7 MAINTENANCE
65
H
A
B
CD
E
J
K
I
F
G
A - AXLE SWING JOINT, LOWER
B - AXLE SWING JOINT, UPPER
C - FRONT AXLE PIVOT POINT
D - QUICK ATTACH HINGE POINT
E - QUICK ATTACH PINS
F - QUICK ATTACH LEVER PIVOT
G - QUICK ATTACH CYLINDER PIVOT
H - QUICK ATTACH CYLINDER PIVOT
I - LIFT CYLINDER PIVOT
J - LIFT CYLINDER PIVOT
K - LIFT ARM HINGE POINT
