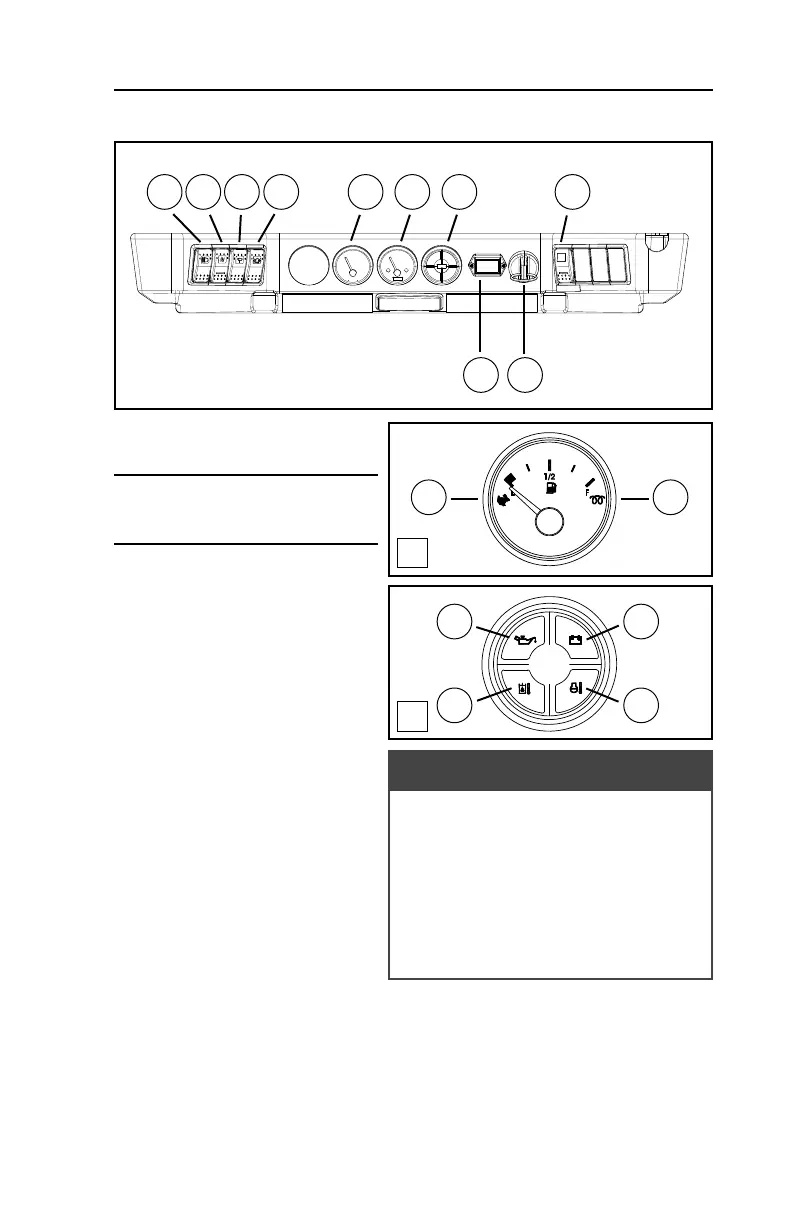

4.1 Display Elements
Learn the location and function of these
items prior to operation.
Note: The presence and location of
switches / instruments may vary depend-
ing on machine configuration.
Switches
1 - Lights, front and rear
2 - Heater Fan (optional)
3 - Front wiper (optional)
4 - Beacon (optional)
9 - Ignition, glow plug (pre-heat)
10 - Auxiliary Hydraulics
Instruments
5 - Tachometer
6 - Fuel Level Gauge
7 - Warning Indicators (4-in-one)
8 - Hour Meter
11 - (not used)
12 - Glow Plug Operation Light
13 - Oil Pressure Warning Light
14 - Battery Voltage Warning Light
15 - Hydraulic Oil Temp. Warning Light
16 - Engine Temp. Warning Light
If the battery voltage light (13) illuminates, drive the machine to a suitable location and
shut the engine off. Diagnose the problem and make any necessary repairs before resum-
ing operation.
The glow plug operation light (11) will illuminate only when the key switch is turned to
engine pre-heat, showing normal operation.
4 MACHINE DESCRIPTION / CONTROLS
1
2 3 4
5 6
8 9
10
13
15
14
11 12
5
6
16
Should the engine temperature gauge read
excessive temperatures, or should the oil
pressure or hydraulic oil temperature warning
lights illuminate during normal operation, shut
the machine down immediately (in a safe
location). Diagnose the problem and make
needed repairs before continuing to operate.
NOTICE
37
RT-30 US-AUS / R070T US O&M
0404-642 2017-01
7
