ASV VT-70 - Page 71

6 TRANSPORTATION
69
VT-70 High Output US ISO O&M
0404-853 2019-09
6.2-1
FRONT
6.3-1
TOP VIEW SIDE VIEW
A
B
REAR
Bucket excluded from illustration for clarity.

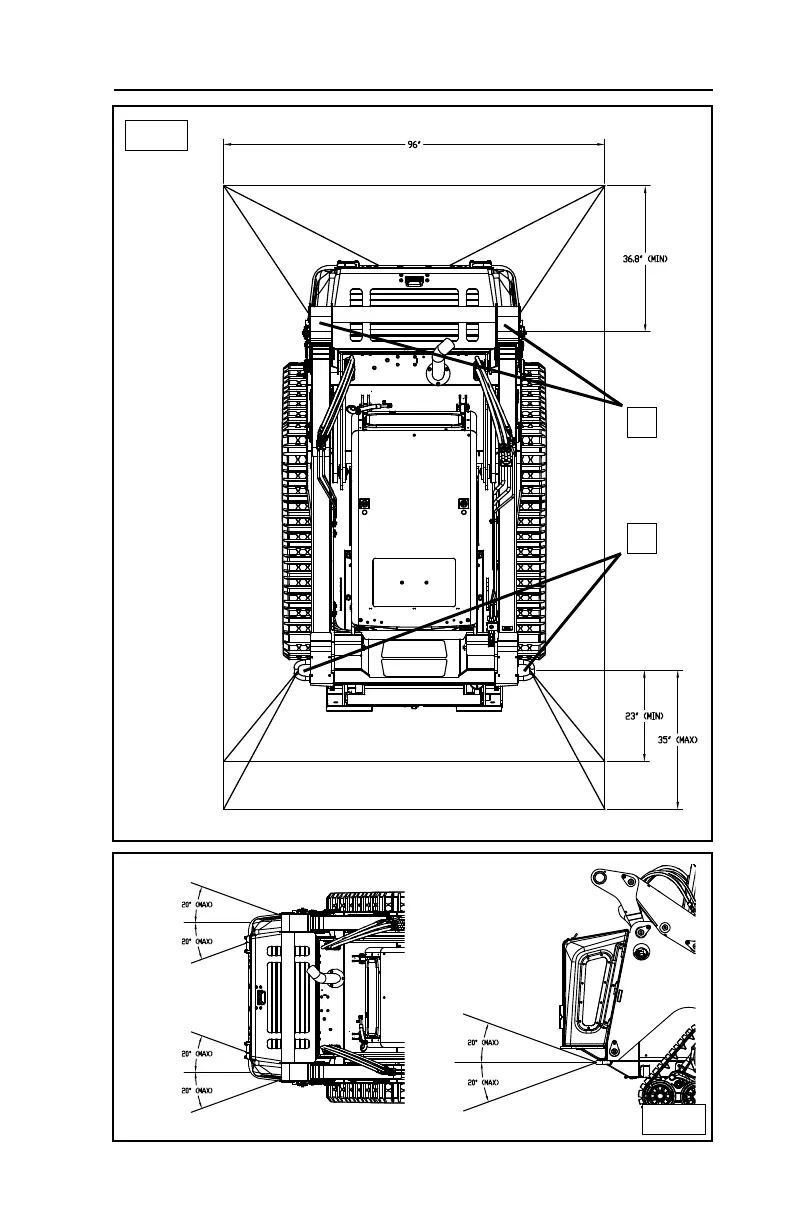

Note: Tie
down points
“B” are D
shaped rings
found on the
underside of
the machine
(fig. 6.1-2).
Note: If an
attachment
causes
machine
weight to
exceed
9500lb, the
attachment
must also be
secured.
