7 MAINTENANCE
77
7.4 Lubrication Points

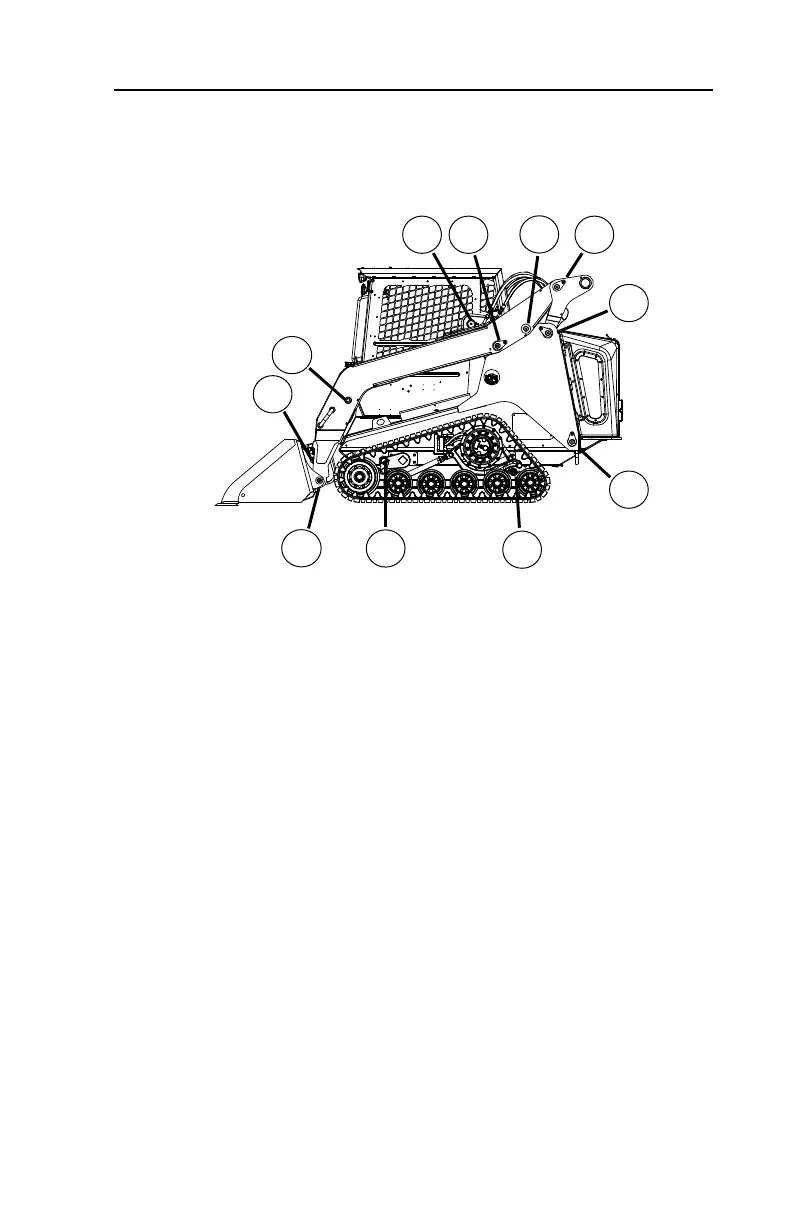

The illustration below shows the location of grease points found on the left side of
the machine. Identical points also exist on the opposite side of the machine.
Lubricate all points daily, prior to operation.
A. Lower Bucket Cylinder Pivot
B. Upper Bucket Cylinder Pivot
C. Front Control Arm Pivot
D. Upper Lift Cylinder Pivot
E. Rear Control Arm Pivot
F. Rear Lift Arm Pivot
G. Rear Lift Arm Linkage Pivot
H. Lower Lift Cylinder Pivot
I. Rear Axle Pivot (2)
J. Front Axle Pivot (2)
K. Lower Bucket Pivot
J
I
E
F
K
A
B
C
VT-70 High Output US ISO O&M
0404-853 2019-09
G
D
H
