7.5 Engine Oil Check
1. Shut the machine down according
to the procedure in section 5.13.
2. Open the hood and side panels,
then pivot the cooler to gain access
to the engine compartment.
3. Locate and remove the engine oil

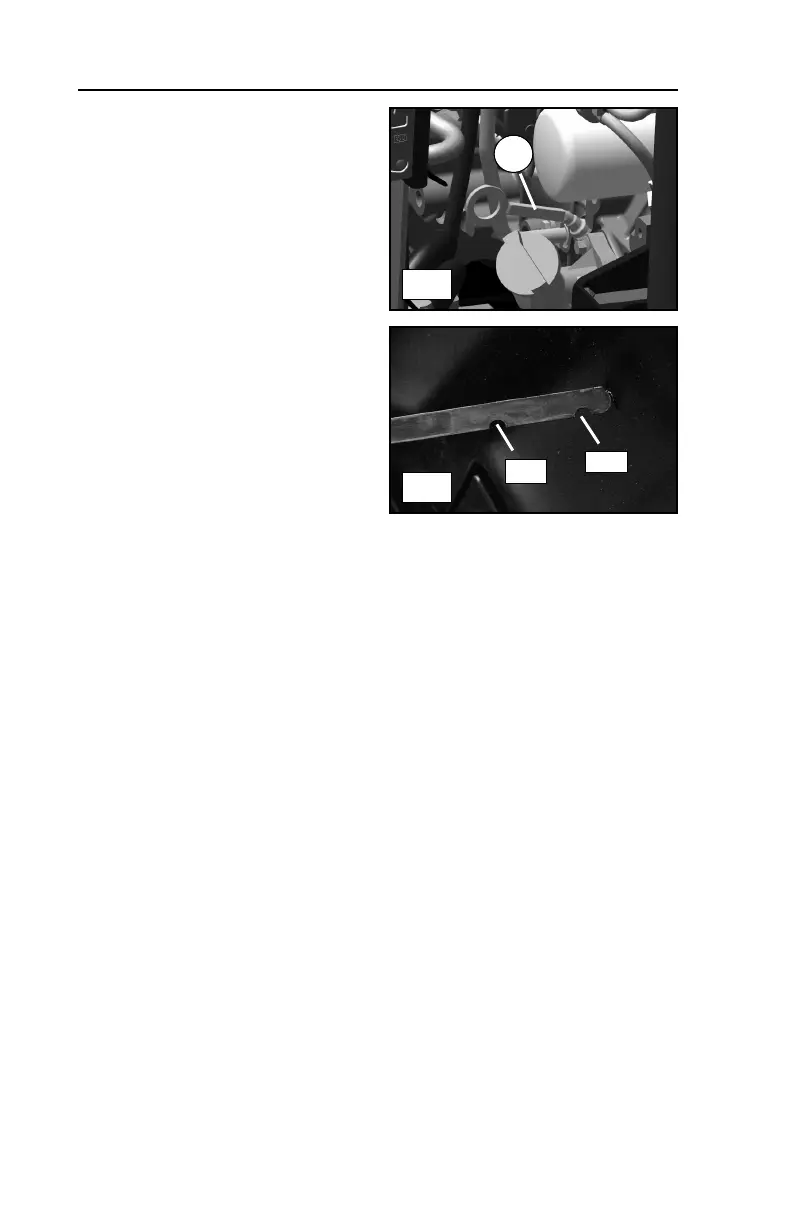

dipstick (1) from its tube. (fig. 7.5-1)
4. Wipe the dipstick with a clean shop
cloth and reinsert it into the tube
until it comes to rest in its seated
position.
5. Remove the dipstick once again and
inspect the end for oil on the level
indicator.
6. Oil should be present on the
dipstick up to, but not over the upper (full) level indicator notch. If the level
is correct, reinstall the dipstick and then reverse step 2 to complete the
procedure. (fig. 7.5-2)
7. If the level is low, add the proper grade and viscosity engine oil and
re-check as necessary until the proper level has been achieved. Then
reinstall the dipstick and filler cap and reverse step 2 to complete the
procedure.
1
7.5-1
7.5-2
Full
Low
