6 TRANSPORTATION
71
VT-70 High Output US ISO O&M
0404-853 2019-09

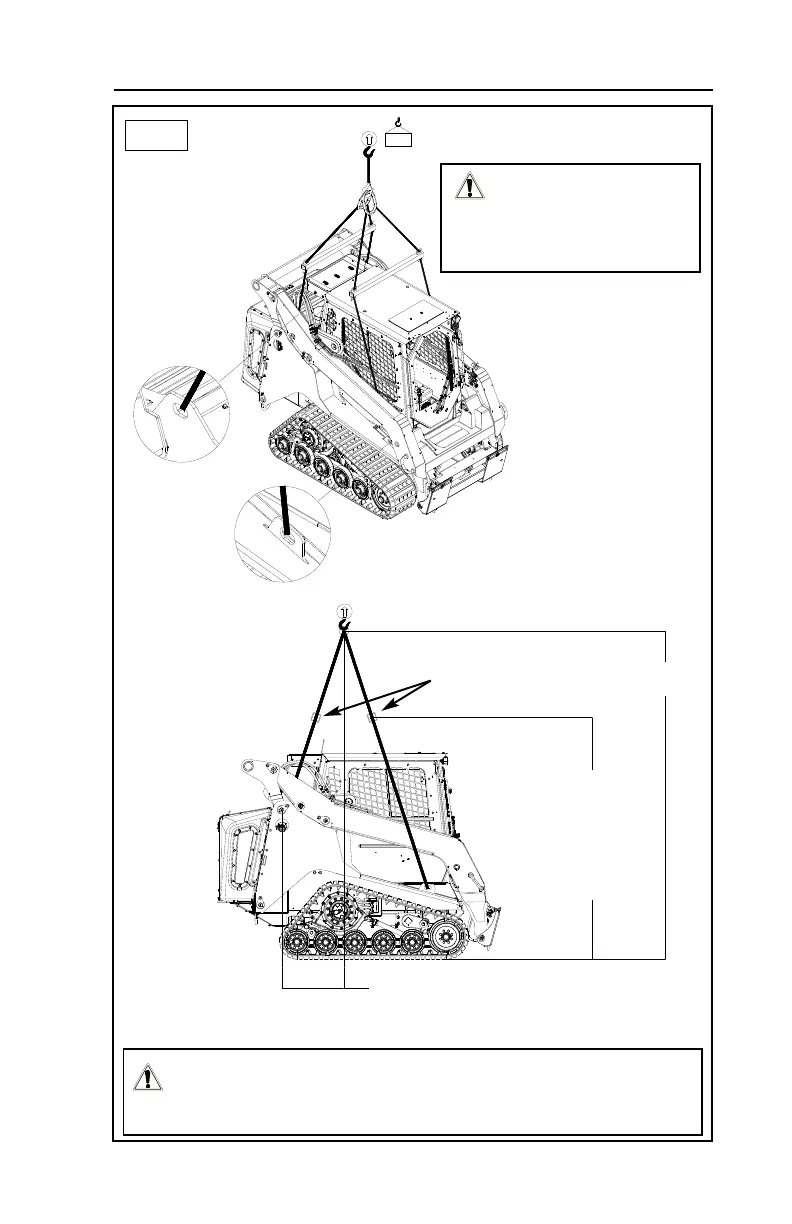

When lifting the machine, attach suitable lifting chains / straps to all
four lift points and lift vertically directly above the center of gravity
as shown (fig. 6.5-1).
Weight of machine being
lifted must not exceed
9500Lb. Spreader beams
must be rated for 10 tons.
9500 lbs (4309 Kg)
6.5-1
130 in. (min.)
24.73 in. (C of G - lift here)
Spreader
beams
must
clear
cab.
Spreader beams
(3 ft. span)
