Atag iR 15 - Controls and Explanation of the Functions

Installation & Servicing instructions ATAG iR-Range
34
%
bar
°C
+
-
-
+
reset
eco
(OK)
(ESC)
ECO

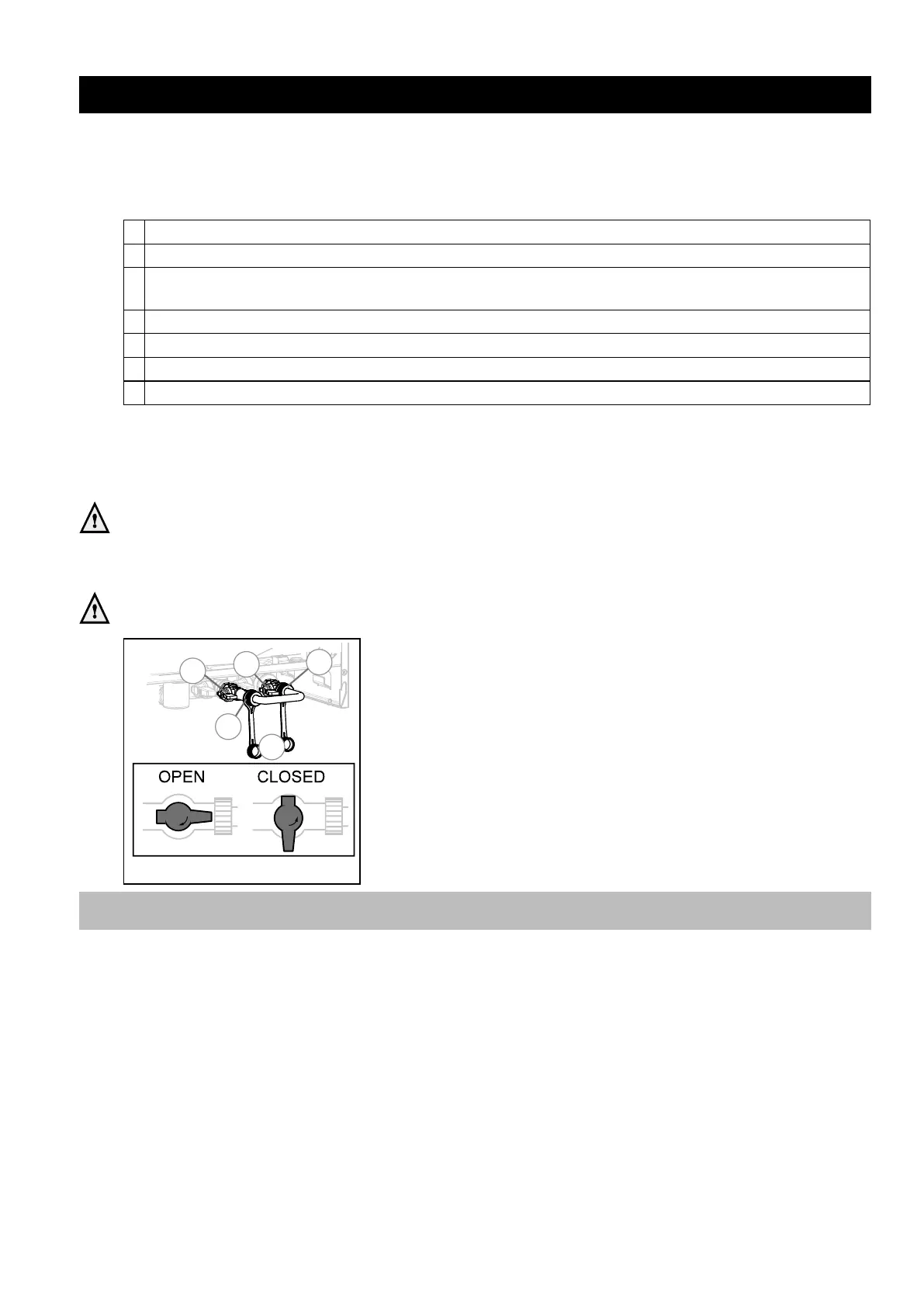

12.1 Controls and explanation of the functions
Central heating
Setting the CH water temperature:
Brieypress+or–;thedisplaywillshowtheashingpresetvalue;
Brieypress+or–tochangethesetvalue.Eachchangebecomesactivedirectly.
CHprogramOFF:Press–untilthelowestvalueisreachedandthenpress–again.The
display is showing - - .
Switching on works in reverse order.
Boiler information
Requesting current data:
Press the eco-button for 6 seconds in order to obtain the following value using the scroll
buttons:
A0 Flow water temperature in °C
A1 Return water temperature in °C
A2 n.a.
A3 T-set temperature (calculated) in °C
A4 Fluegastemperature(onlyifauegassensorisconnected)in°C
A5 Outside temperature (only if an outside sensor is connected) in °C
A6 Water pressure in bar
A7 n.a.
A8
Ionisation current in mA.
A9 rpm of fan (x100)
To return to the standard view press ESC.
Reset button
The reset button allows the boiler to restart if an error has occurred.
In case of an error the
symbol is displayed with a XXX code.
In other cases the Reset button does not function and will not respond to operation.
See chapter 17 for a brief overview of codes
Ancillary functions:
Both + buttons = Commissioning-mode for checking the CO
2
CH+button=OK(conrm)
DHW Button: Scroll function
(‘scrolling’ through parameters)
CH–button=ESCfunction
(back to standard display)
