Installation & Servicing Instructions ATAG Q-Series
19
Boiler conversion from concentric to parallel
It is also possible to use a parallel pipe connection of 2x 80mm. In this case a conversion
kit 'concentric to parallel' should be ordered. Art.nr. S4440520.
A. 1. Push the 2 clips slightly outwards.
B. 2. Pull the concentric adaptor out of the boiler.
3. Press the cover in the connection at the back from inside out.
C. 4. Pull the rubber seal around the bottom of the ue connector.
5. Push the ue connector in the boiler, in the boiler ue pipe until
‘CLICK’.
6. Push the ø125mm cover over the ue connector in the ø125mm
opening until ‘CLICK’.
7. Push the rubber plug in open position in the O
2
measuring opening and
close the stop.
8. Push the gasket around the top of the ue connector.
D. Connect the parallel ue gas and air intake system (2x ø80mm).
Q51S and Q60S Boiler conversion from parallel to concentric
It is possible to convert the Q51S and Q60S boiler from the standard 2x 80 mm parallel
to a concentric ue connection ø80/125mm. In this case use the concentric ue adapter
ø80/125 mm supplied with the boiler.
Conversion of the boiler should be done following the description above in reverse order.
A
1
B
2
3
C
4
7
5
6
8
D
boiler conversion from
concentric to parallel

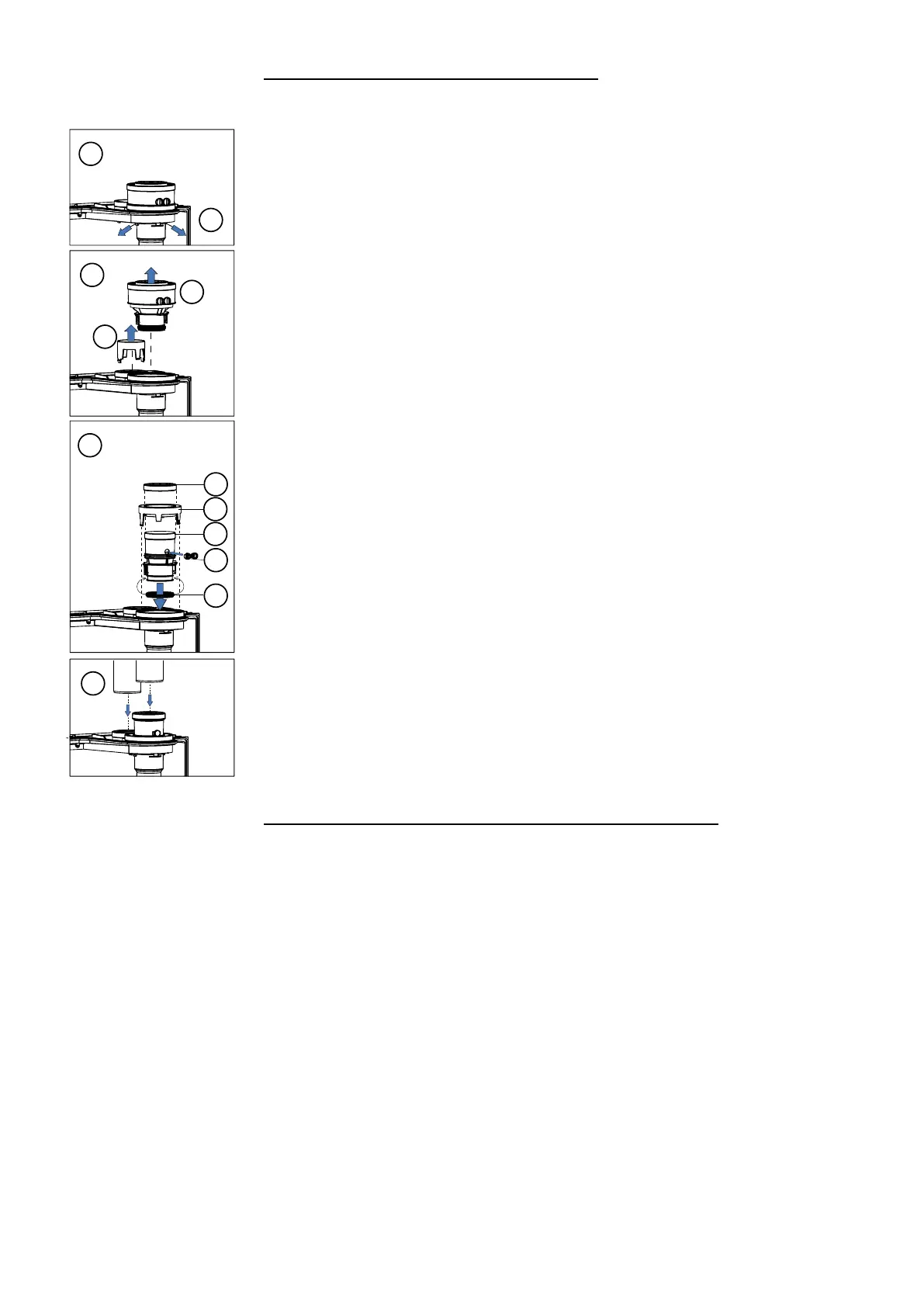

gure 6.8.a
