Installation & Servicing Instructions ATAG Q-Series
46

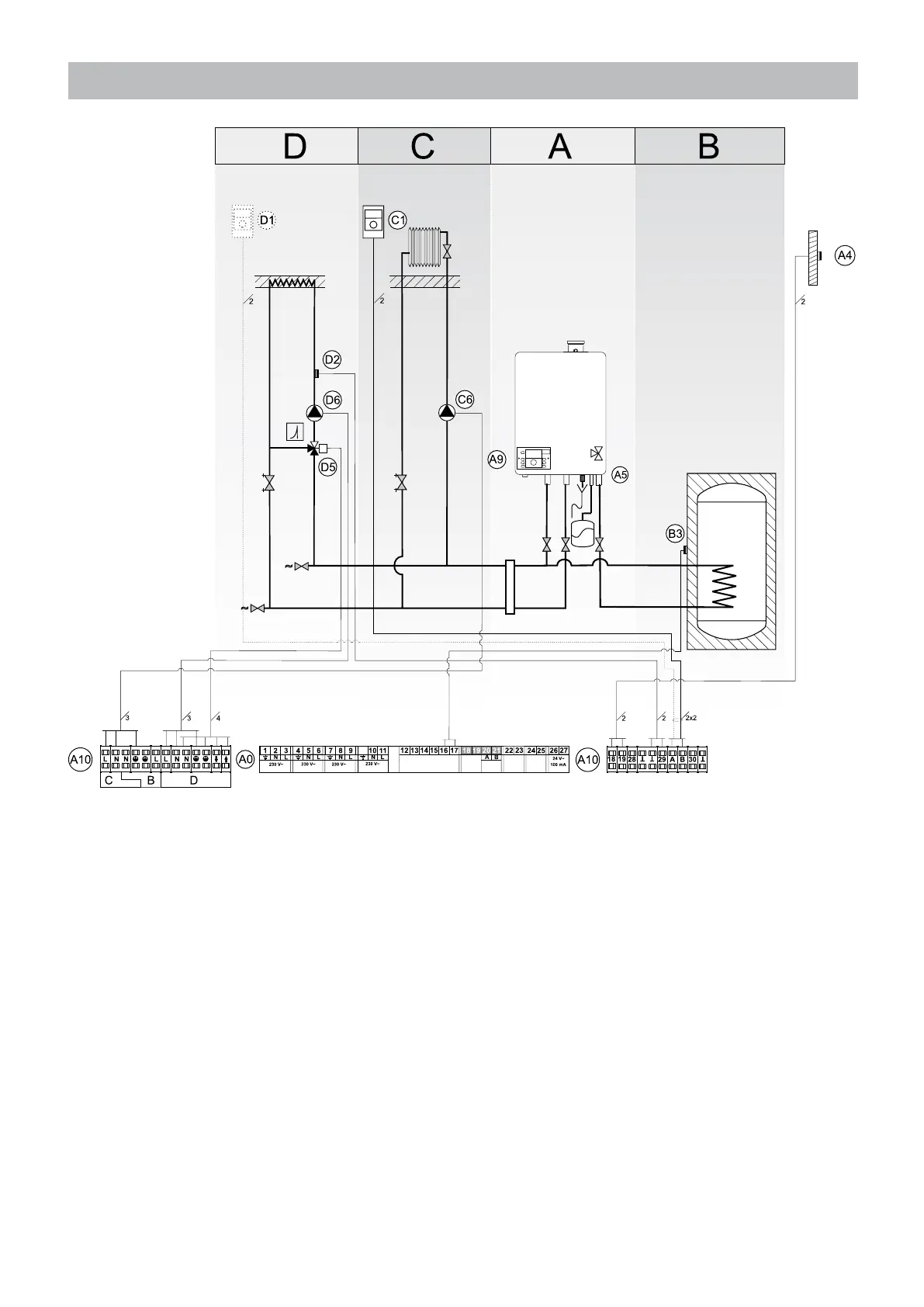

D.2 Radiator installation with underoor heating zone
A Boiler:
A0 Connection terminal ATAG Q
A4 Outside sensor ARV12
A9 ATAG MadQ zone coltroller 23BC
A10 Connection terminal MadQ built in
B Cylinder:
B3 Cylinder sensor
C Direct zone:
C6 Pump direct zone
D Mixing zone:
D2 Flow sensor mixing zone
D5 Three way valve mixing zone 230V~
D6 Pump mixing zone
See also the installation manual ATAG MadQ Zone controller.
Q25S
Q38S
