Boiler Installation
Electrical connection

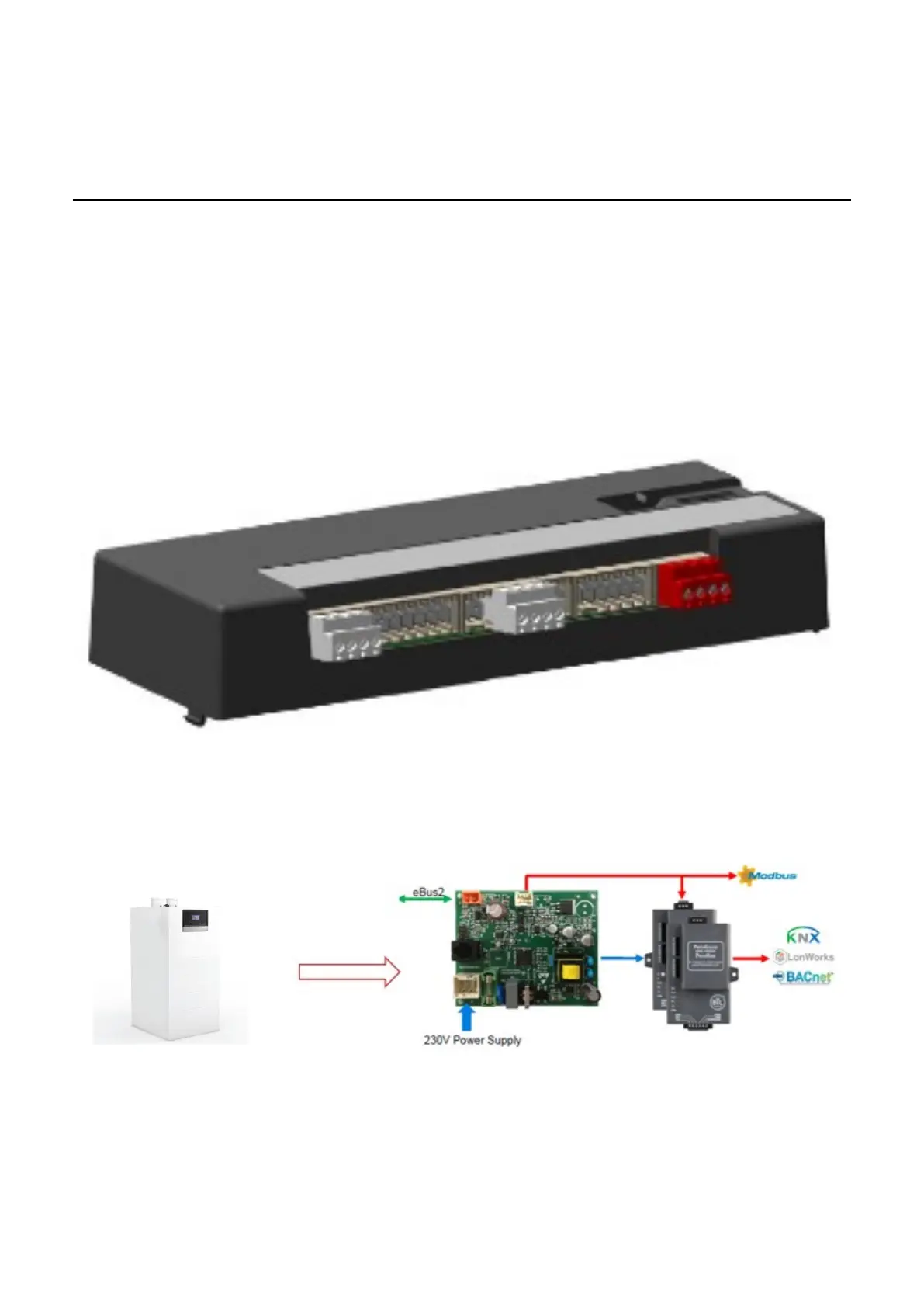

The 3 MIXING ZONES Clip Manager is an accessory that manages up to 3 heating zone (direct, mixing or a combination of
them) directly from boiler.
This accessory is connected to the boiler via eBus and it can be connected to Ariston Thermo Group heating system (boilers,
heat pumps, solar applications, etc.) through the eBus connection.
A special setting of a second 3 MIXING ZONES Clip permits to connect two clips via eBUS, in
order to control up to 6 zones (direct, mixing or a combination of them). This means, connect one clip-in on a single boiler
and up to 2 clip-in into a cascade, in order to manage a maximum of 6 zone.
Every heang zone has to be connected through a sensor or thermostat, a pump and, if present, a mixing valve
3 MIXING ZONES Clip Manager
NEW BUS modules for BMS management: Complete integration with building management systems is possible with XL
-W boilers with the supported protocols MODBUS, KNX, LON, BACNET
*Separate accessories for different protocols is required.
