Preparing the Network Interface
The local telephone company should have installed a network interface with
1-line jacks (RJ11-type), 2-line jacks (RJ14-type), or a multiline connector
(RJ21-type) for connecting your MERLIN system to your outside telephone

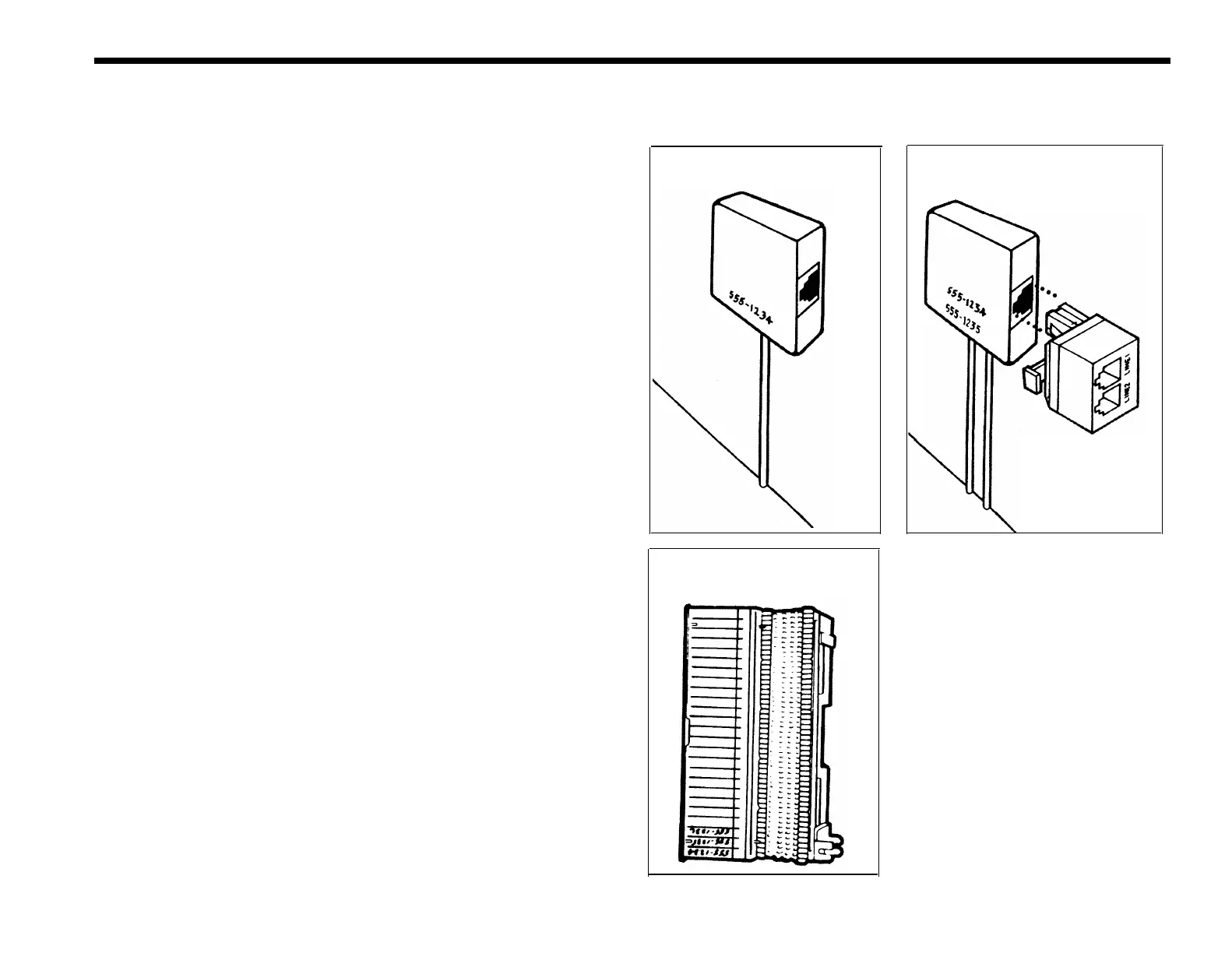

lines. The drawing, right, shows the three types of interfaces and the 2-line
adapter (267C) for the 2-line network interface jack. The table, on page 8, tells
you what to do next depending on the type of network interface you have.
1-Line jack (RJ11-type)
2-Line jack
(RJ19-type)
2-Line adapter
66-Type block with
Multiline connector (RJ21-type)
