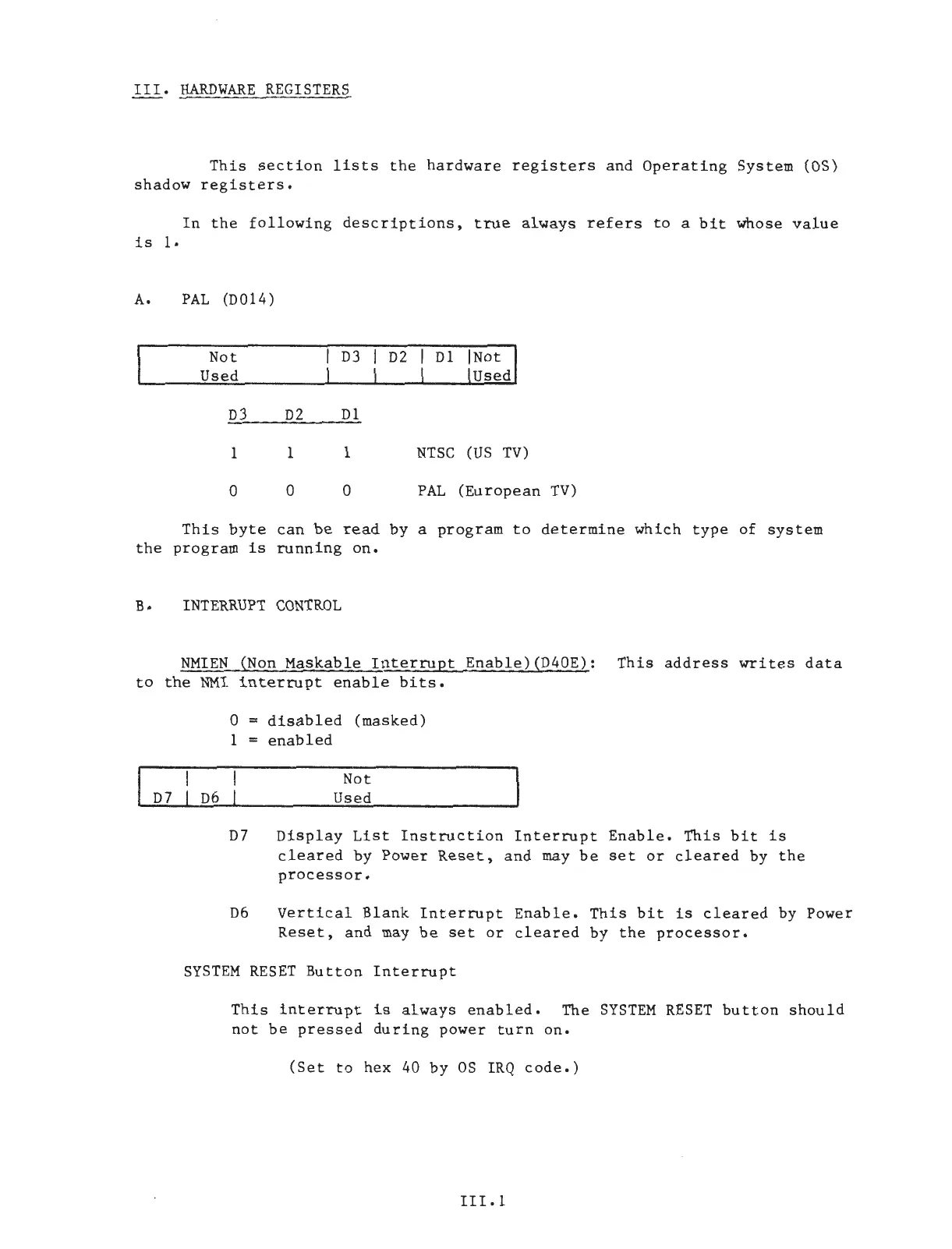

III.
HARDWARE
REGISTERS
This
section
lists
the
hardware
registers
and
Operating
System
(OS)
shadow
registers.
In
the
following
descriptions,
true
always
refers
to
a
bit
whose
value
is
1.
A.
PAL
(D
014)
Not
D3 D2
D1
!Not I
Used !Used
D3
D2
D1
1
1
1
NTSC
(US
TV)
0 0 0
PAL
(European
TV)
This
byte
can
be
read
by a
program
to
determine
which
type
of
system
the
program
is
running
on.
B.
INTERRUPT
CONTROL
NMIEN
(Non
Maskable
Interrupt
Enable)(D40E):
This
address
writes
data
to
the
NMI
interrupt
enable
bits.
D7
D6
0
disabled
(masked)
1
=
enabled
Not
Used
D7
Display
List
Instruction
Interrupt
Enable.
This
bit
is
cleared
by Power
Reset,
and
may
be
set
or
cleared
by
the
processor.
D6
Vertical
Blank
Interrupt
Enable.
This
bit
is
cleared
by Power
Reset,
and
may
be
set
or
cleared
by
the
processor.
SYSTEM
RESET
Button
Interrupt
This
interrupt
is
always
enabled.
The
SYSTEM
RESET
button
should
not
be
pressed
during
power
turn
on.
(Set
to
hex
40 by
OS
IRQ
code.)
