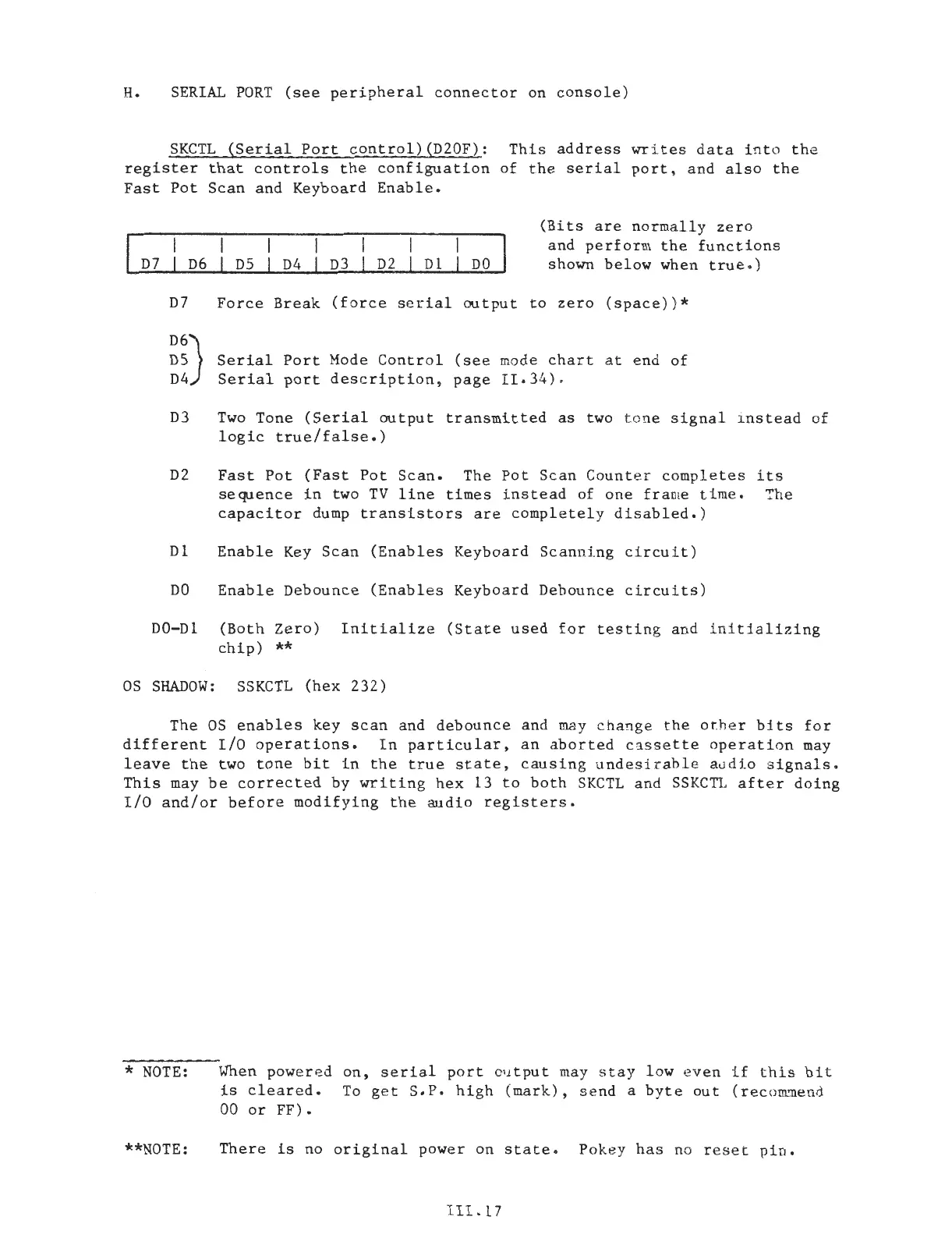

H. SERIAL PORT (see peripheral connector on console)
SKCTL (Serial Port control)(D20F): This address writes data into the
register that controls the configuation of the serial port, and also the
Fast Pot Scan and Keyboard Enable.
D7 D6
D7
D6)
DS
D4
D3
D2
D1
DO
D5 D4 D3 D2 D1 DO
(Bits are normally zero
and perform the functions
shown below when true.)
Force Break (force serial output to zero (space))*
Serial Port Mode Control (see mode chart at end of
Serial port description, page II.34) .
Two Tone (Serial output transmitted as two tone signal instead of
logic true/false.)
Fast Pot (Fast Pot Scan. The Pot Scan Counter completes its
sequence in two TV line times instead of one frame time. The
capacitor dump transistors are completely disabled.)
Enable Key Scan (Enables Keyboard Scanning circuit)
Enable Debounce (Enables Keyboard Debounce circuits)
DO-D1 (Both Zero) Initialize (State used for testing and initializing
chip) **
OS SHADOW: SSKCTL (hex 232)
The
OS enables key scan and debounce and may change the other bits for
different I/O operations. In particular, an aborted cassette operation may
leave the two tone bit in the true state, causing undesirable audi o signals.
This may be corrected by writing hex 13 to both SKCTL and SSKCTL after doing
I/O and/or before modifying the audio registers.
* NOTE:
**NOTE:
When powered on, serial port ou tput may stay low even if this bit
is cleared. To get S.P. high (mark), send a byte out (recommend
00 or FF).
There is no original power on state. Pokey has no reset pin.
III .17
