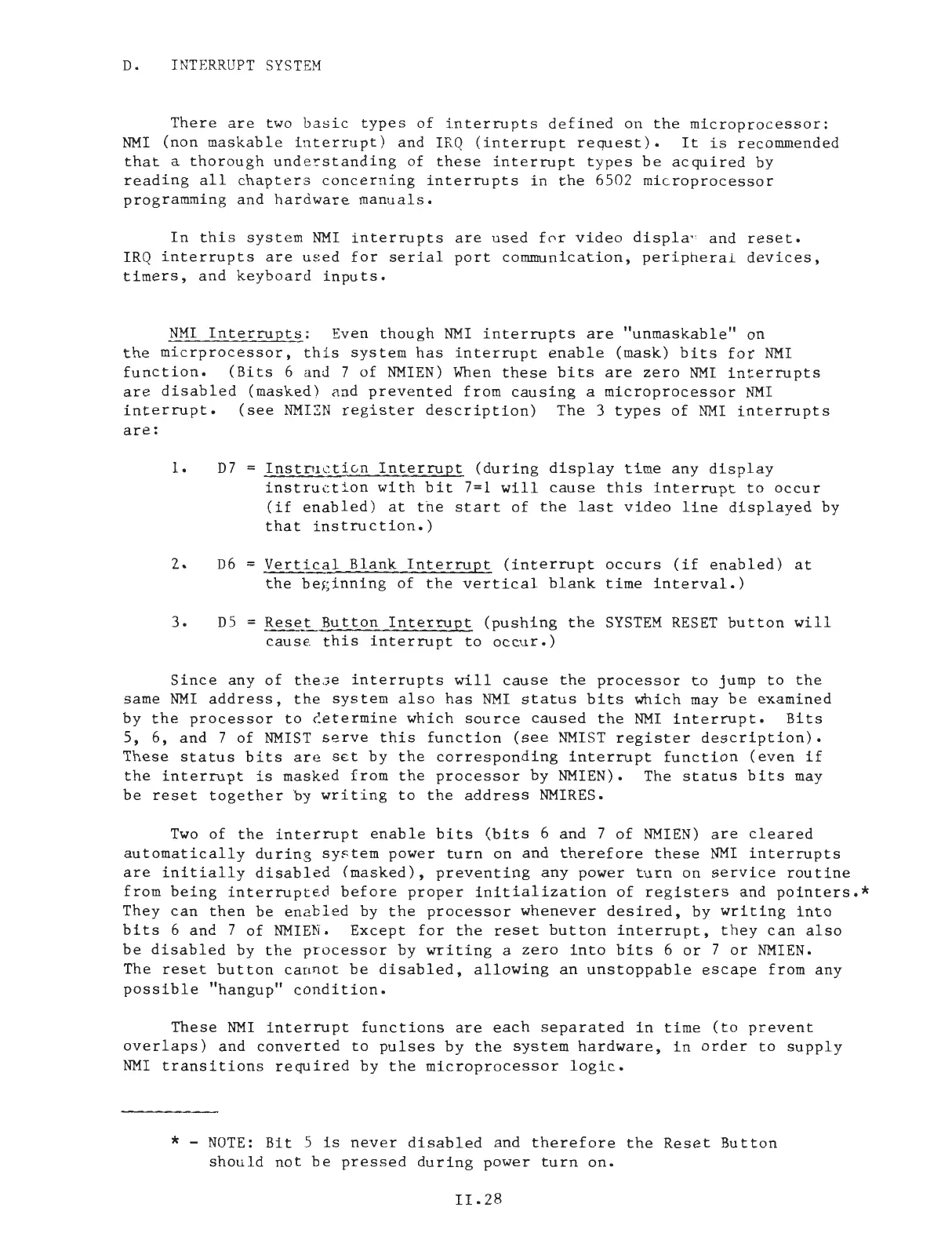

D.
INTERRUPT
SYSTEM
There
are
two
basic
types
of
i.nterrupts
defined
on
the
microprocessor:
NMI
(non
maskable
interrupt)
and
IRQ
(interrupt
request).
It
is
recommended
that
a
thorough
understanding
of
these
interrupt
types
be
acquired
by
reading
all
chapters
concerning
interrupts
in
the
6502
microprocessor
programming
and
hardware
manuals.
In
this
system
NMI
interrupts
are
used
for
video
displa
v
and
reset.
IRQ
interrupts
are
used
for
serial
port
communication,
peripheral
devices,
timers,
and
keyboard
inputs.
NMI
Interrupts:
Even
though
NMI
interrupts
are
"unmaskable"
on
the
micrprocessor,
this
system
has
interrupt
enable
(mask)
bits
for
NMI
function.
(Bits
6
and
7
of
NMIEN)
When
these
bits
are
zero
NMI
interrupts
are
disabled
(masked)
and
prevented
from
causing
a
microprocessor
NMI
interrupt.
(see
NMIZN
register
description)
The 3
types
of
NMI
interrupts
are:
1.
D7
2.
D6
3.
DS
Instructi
.
c,n
Interrupt
(during
display
time
any
display
instruction
with
bit
7=1
will
cause
this
interrupt
to
occur
(if
enabled)
at
the
start
of
the
last
video
line
displayed
by
that
instruction.)
Vertical
Blank
Interrupt
(interrupt
occurs
(if
enabled)
at
the
beginning
of
the
vertical
blank
time
interval.)
Reset
Button
Interrupt
(pushing
the
SYSTEM
RESET
button
will
cause
this
interrupt
to
occur.)
Since
any
of
the3e
interrupts
will
cause
the
processor
to
jump
to
the
same
NMI
address,
the
system
also
has
NMI
status
bits
which
may
be
examined
by
the
processor
to
cetermine
which
source
caused
the
NMI
interrupt.
Bits
5,
6,
and
7
of
NMIST
serve
this
function
(see
NMIST
register
description).
These
status
bits
are
set
by
the
corresponding
interrupt
function
(even
if
the
interrupt
is
masked
from
the
processor
by NMIEN). The
status
bits
may
be
reset
together
by
writing
to
the
address
NMIRES.
Two
of
the
interrupt
enable
bits
(bits
6
and
7
of
NMIEN)
are
cleared
automatically
during
system
power
turn
on
and
therefore
these
NMI
interrupts
are
initially
disabled
(masked),
preventing
any
power
turn
on
service
routine
from
being
interrupted
before
proper
initialization
of
registers
and
pointers.*
They
can
then
be
enabled
by
the
processor
whenever
desired,
by
writing
into
bits
6
and
7
of
NMIEN.
Except
for
the
reset
button
interrupt,
they
can
also
be
disabled
by
the
processor
by
writing
a
zero
into
bits
6
or
7
or
NMIEN.
The
reset
button
cannot
be
disabled,
allowing
an
unstoppable
escape
from
any
possible
"hangup"
condition.
These
NMI
interrupt
functions
are
each
separated
in
time
(to
prevent
overlaps)
and
converted
to
pulses
by
the
system
hardware,
in
order
to
supply
NMI
transitions
required
by
the
microprocessor
logic.
* -
NOTE:
Bit
5
is
never
disabled
and
therefore
the
Reset
Button
should
not
be
pressed
during
power
turn
on.
II.28
