SELF-TEST-SWITCH
---VOLUME
CONTROL
VOLUME
DECREASE:
COUNTER-
CLOCKWISE

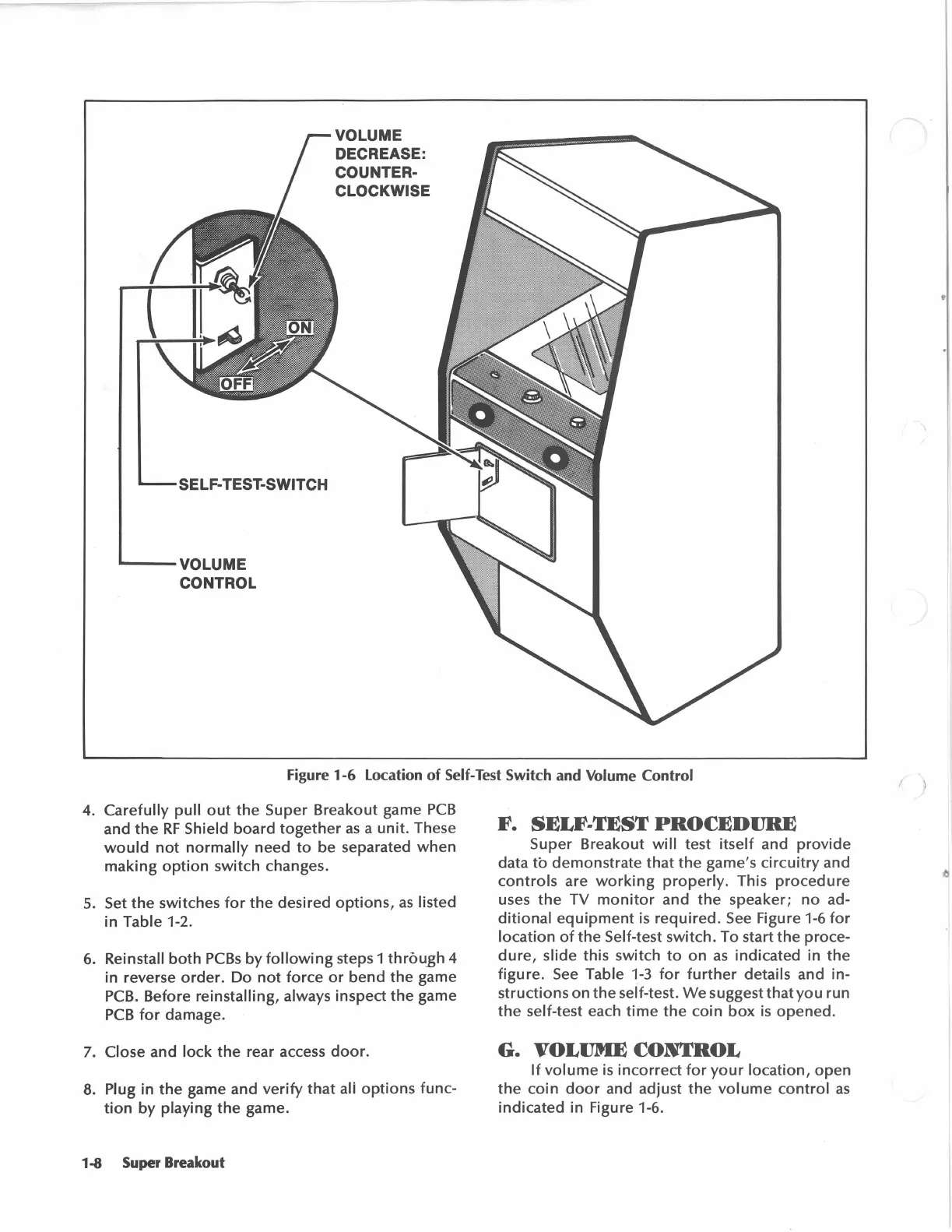

Figure 1-6 Location of Self-Test Switch and Volume Control
4. Carefully pull out the Super Breakout game PCB
and the RF Shield board together as a unit. These
would not normally need to be separated when
making option switch changes.
5. Set the switches for the desired options, as listed
in Table 1-2.
6. Reinstall both PCBs by following steps 1throu_gh4
in reverse order. Do not force or bend the game
PCB. Before reinstalling, always inspect the game
PCB for damage.
7. Close and lock the rear access door.
8. Plug in the game and verify that ali options func-
tion by playing the game.
1-8 Super Breakout
F. SELF-TEST PROCEDURE
Super Breakout will test itself and provide
data fo demonstrate that the game's circuitry and
controls are working properly. This procedure
uses the TV monitor and the speaker; no ad-
ditional equipment is required. See Figure 1-6 for
location of the Self-test switch. To start the proce-
dure, slide this switch to on as indicated in the
figure. See Table 1-3 for further details and in-
structions on the seif-test. We suggest that you run
the self-test each time the coin box is opened.
G. VOLUME CONTROL
If volume is incorrect for your location, open
the coin door and adjust the volume control as
indicated in Figure 1-6.
•
