LAMP/SPEAKER ASSEMBLY REMOVAL
1. Remove
three
button-head screws.
2.
Remove Plexiglas retainer.
3.
Remove ·Plexiglas shield.
4.
Slide
out
lamp/speaker
assembly.
FLUORESCENT
LAMP
REMOVAL
5.
Remove
retainer
clips
which
hold
built
in
socket.
6.
Gently
rotate
fluorescent
bulb until
it
slips
out
of
socket. Remove
fluorescent
bulb.
5

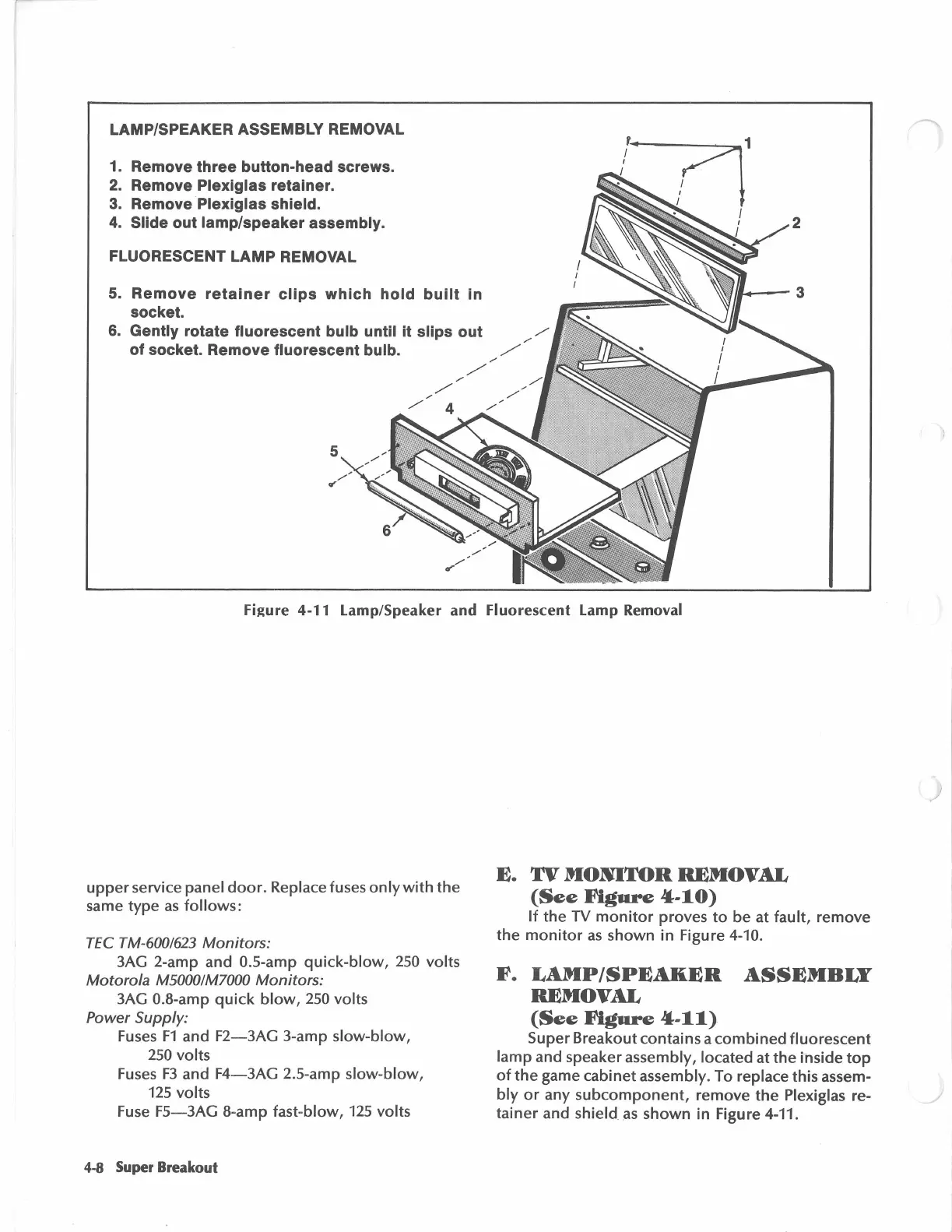

Figure 4-11 Lamp/Speaker
and
Fluorescent
Lamp Removal
upper
service panel
door.
Replace fuses
only
with
the
same
type
as
follows:
TEC
TM-6001623
Monitors:
3AG 2-amp
and
0.5-amp
quick-blow,
250
volts
Motorola
M5000/M7000
Monitors:
3AG 0.8-amp
quick
blow,
250 volts
Power Supply:
Fuses
F1
and
F2-3AG
3-amp
slow-blow,
250
volts
Fuses
F3
and
F4-3AG
2.5-amp
slow-blow,
125
volts
Fuse
F5-3AG
8-amp
fast-blow,
125
volts
4-8
Super Breakout
E.
TV
MONITOR
REMOVAL
(See
Figure
4-10)
If
the
TV
monitor
proves
to
be
at
fault,
remove
the
monitor
as
shown
in
Figure 4-10.
F.
LAMP/SPEAKER
ASSEMBLY
REMOVAL
(See
Figure
4-11)
Super
Breakout
contains
a
combined
fluorescent
lamp
and speaker assembly,
located
at
the
Inside
top
of
the
game
cabinet
assembly. To replace
this
assem-
bly
or
any
subcomponent,
remove
the
Plexiglas re-
tainer
and
shield
as
shown
in
Figure 4-11.
