Atari Super Breakout User Manual

CONTROL
PANEL
ALLEN-HEAD
SET SCREW

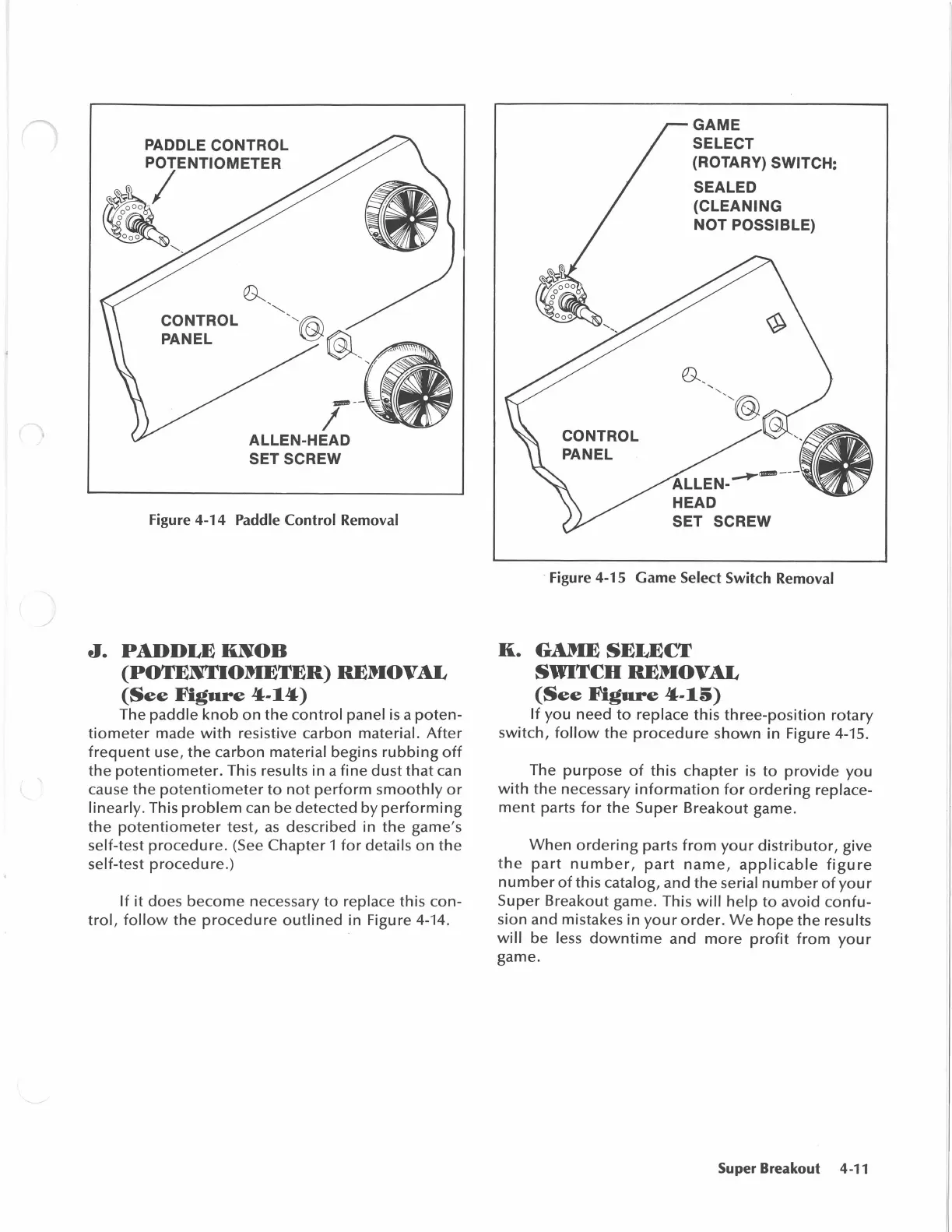

Figure 4-14 Paddle Control Removal
J. PADDLE KNOB
(POTENTIOMETER) REMOVAL
(See Figure 4-14)
The paddle knob on the control panel is a poten-
tiometer made with resistive carbon material. After
frequent use, the carbon material begins rubbing off
the potentiometer. This results in a fine dust that can
cause
the potentiometer to not perform smoothly or
linearly. This problem can be detected by performing
the potentiometer test, as described in the game's
self-test procedure. (See Chapter 1 for details on the
self-test procedure.)
If it does become necessary to replace this con-
trol, follow the procedure outlined in Figure 4-14.
GAME
SELECT
(ROTARY) SWITCH:
SEALED
(CLEANING
NOT POSSIBLE)
ALLEN------ - ~
HEAD
SET SCREW
-Figure 4-15 Game Select Switch Removal
Ii. GAME SELECT
SWITCH REMOVAL
(See Figure 4-15)
If you need to replace this three-position rotary
switch, follow the procedure shown in Figure 4-15.
The
purpose of this chapter is to provide you
with the necessary information for ordering replace-
ment parts for the Super Breakout game.
When ordering parts from your distributor, give
the part number, part name, applicable figure
number of this catalog, and the serial number of your
Super Breakout game. This will help to avoid confu-
sion and mistakes in your order. We hope the results
will be less downtime and more profit from your
game.
Super Breakout 4-11
