LINE VOLTAGE-CHANGING
VOLTAGE PLUG WIRE COLOR
95 VAC
BLACK
110 VAC
ORANGE
.
(installed at factory)
210 VAC
GREEN
220 VAC RED
ORANGE--
CONNECTOR
(FACTORY-
INSTALLED)
@
@-
0
0- N/OFFAND
INTERLOCK
SWITCH
QQ
V.mp,250V.
Slow-blow
VOLTAGE SELECTION
CONNECTOR
8 Amp, 125V.
Fast-Blow
2.5 Amp .125 V.
Slow-blow
POWER SUPPLY
CHASSIS

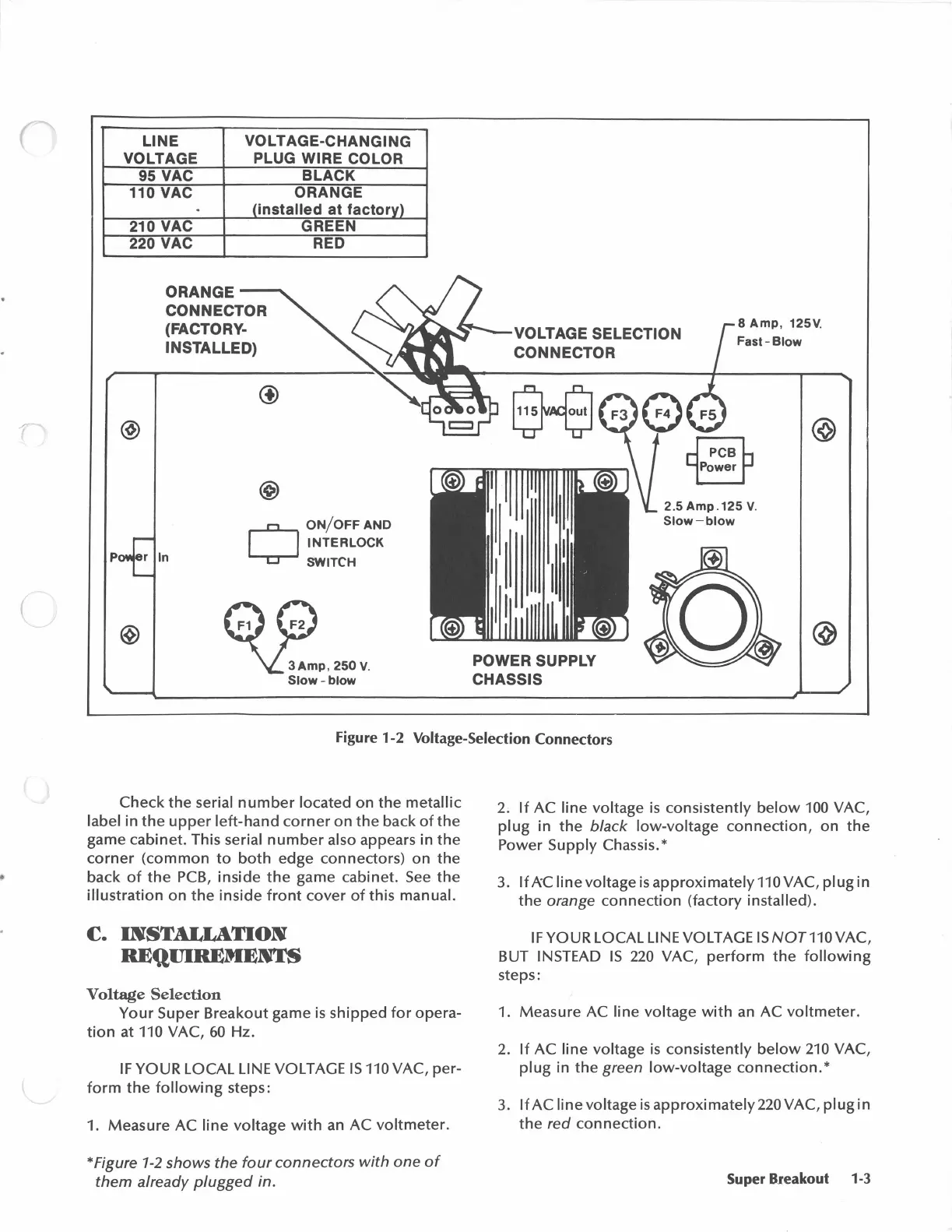

Figure 1-2 Voltage-Selection Connectors
Check the serial number located on the metallic
label in the upper left-hand corner on the back of the
game cabinet. This serial number also appears in the
corner (common to both edge connectors) on the
back of the PCB, inside the game cabinet. See the
illustration on the inside front cover of this manual.
C. INSTALLATION
RE~mREMENrS
Voltage Selection
Your Super Breakout game is shipped for opera-
tion at 110 VAC, 60 Hz.
IF YOUR LOCAL LINE VOLTAGE IS 110VAC, per-
form the following steps:
1.
Measure AC line voltage with an AC voltmeter.
*Figure 1-2 shows the four connectors with one of
them already plugged in.
2; If AC line voltage is consistently below 100 VAC,
plug in the black low-voltage connection, on the
Power Supply Chassis.*
3.
If AC line voltage is approximately110VAC, plug in
the orange connection (factory installed).
IF YOUR LOCAL LINE VOLTAGE ISNOT110VAC,
BUT INSTEAD IS 220 VAC, perform the following
steps:
1.
Measure AC line voltage with an AC voltmeter.
2. If AC line voltage is consistently below 210 VAC,
plug in the green low-voltage connection.*
3. If AC line voltage is approximately220VAC, plug in
the red connection.
Super Breakout 1-3
