SERVE LED -------
PUSHBUTTON
PADDLE CONTROL ----
KNOB
ONE-PLAYER ------------r-----
START PUSHBUTTON
TWO-PLAYER --------1---m
START
PUSHBUTTON
CONTROL---------
PANEL

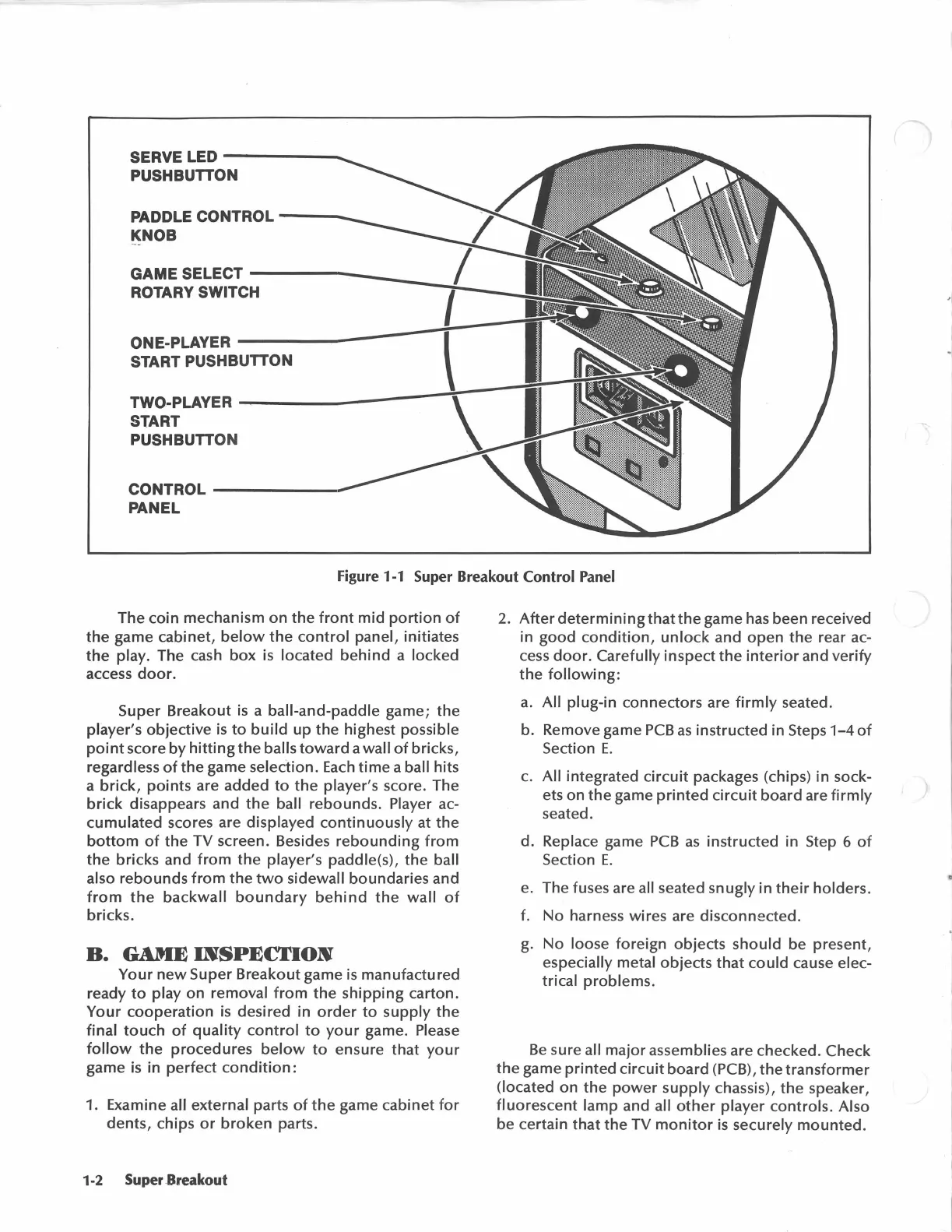

Figure 1-1 Super Breakout Control Panel
The coin mechanism on the front mid portion of
the game cabinet, below the control panel, initiates
the play. The cash box is located behind a locked
access door.
Super Breakout is a ball-and-paddle game; the
player's objective is to build up the highest possible
point score by hitting the balls toward a wall of bricks,
regardless of the game selection. Each time a ball hits
a
brick, points are added to the player's score. The
brick disappears and the ball rebounds. Player ac-
cumulated scores are displayed continuously at the
bottom of the TV screen. Besides rebounding from
the bricks and from the player's paddle(s), the ball
also
rebounds from the two sidewall boundaries and
from the backwall boundary behind the wall of
bricks.
B. GAME INSPECDON
Your new Super Breakout game is manufactured
ready to play on removal from the shipping carton.
Your cooperation is desired in order to supply the
final touch of quality control to your game. Please
follow the procedures below to ensure that your
game is in perfect condition:
1. Examine all external parts of the game cabinet for
dents, chips or broken parts.
1-2
Super .Breakout
2. After determining that the game has been received
in
good condition, unlock and open the rear ac-
cess door. Carefully inspect the interior and verify
the following:
a. All plug-in connectors are firmly seated.
b. Remove game
PCB as instructed in Steps 1-4 of
Section E.
c. All integrated circuit packages (chips) in sock-
ets on the game printed circuit board are firmly
seated.
d.
Replace game PCB as instructed in Step 6 of
Section E.
e. The fuses are all seated snugly in their holders.
f. No harness wires are disconnected.
g. No loose foreign objects should be present,
especially metal objects that could cause elec-
trical
problems.
Be sure all major assemblies are checked. Check
the game printed circuit board (PCB), the transformer
(located on the power supply chassis), the speaker,
fluorescent lamp and all other player controls. Also
be certain that the TV monitor is securely mounted.
I
