Atari Super Breakout User Manual

Table 1-1 Installation Requirements
Power Requirements
Power Supply: 110 VAC @60 Hz
200
Watts
220 VAC @50 Hz
Temperature Range
On Location and No lower than 0 degrees Celsius
In Stora5e:
(32 degrees Fahrenheit)
Humidity Range
Relative
Humidity:
No higher than 49 degrees
Celsius
(120 degrees Fahrenheit)
No more than 95%
Location Space Requirements*
Height: 169 centimeters (66 inches)
Width: 62 centimeters (25 inches)
Depth: 70 centimeters (28 inches)
TV Monitor
19-inch Black and White
*See Figure 1-3.
Type of Power Cord
Atari has added a strain-relief cord to your Super
Breakout game. The advantage of this type of cord is
that if pulled accidentally, the strain relief will hold
the cord in place at the cabinet wall. The plastic strain
relief "cushions" the impact of the shock and
prevents the cord from pulling the wires out of the
harness connector.
D. INTERLOCK, POWER ON/OFF
SWITCH AND OTHER
OPERATOR CONTROLS
To minimize the hazard of electrical shock while
you are working on the inside of the game cabinet,
two interlock switches have been installed. One is
located behind the rear access door and one behind
the coin door. These switches remove all the power
from the game cabinet while the doors remain open.
To help conserve energy, a power on/off switch has
been placed on the game so that it can be turned off
during closed periods. This switch is located in the
"--<s
8'!!11!11!!1!1!!!!!!m!lll_........., ·<s //
~ (70 CENTIMETERS)
(62 CENTIMETERS)

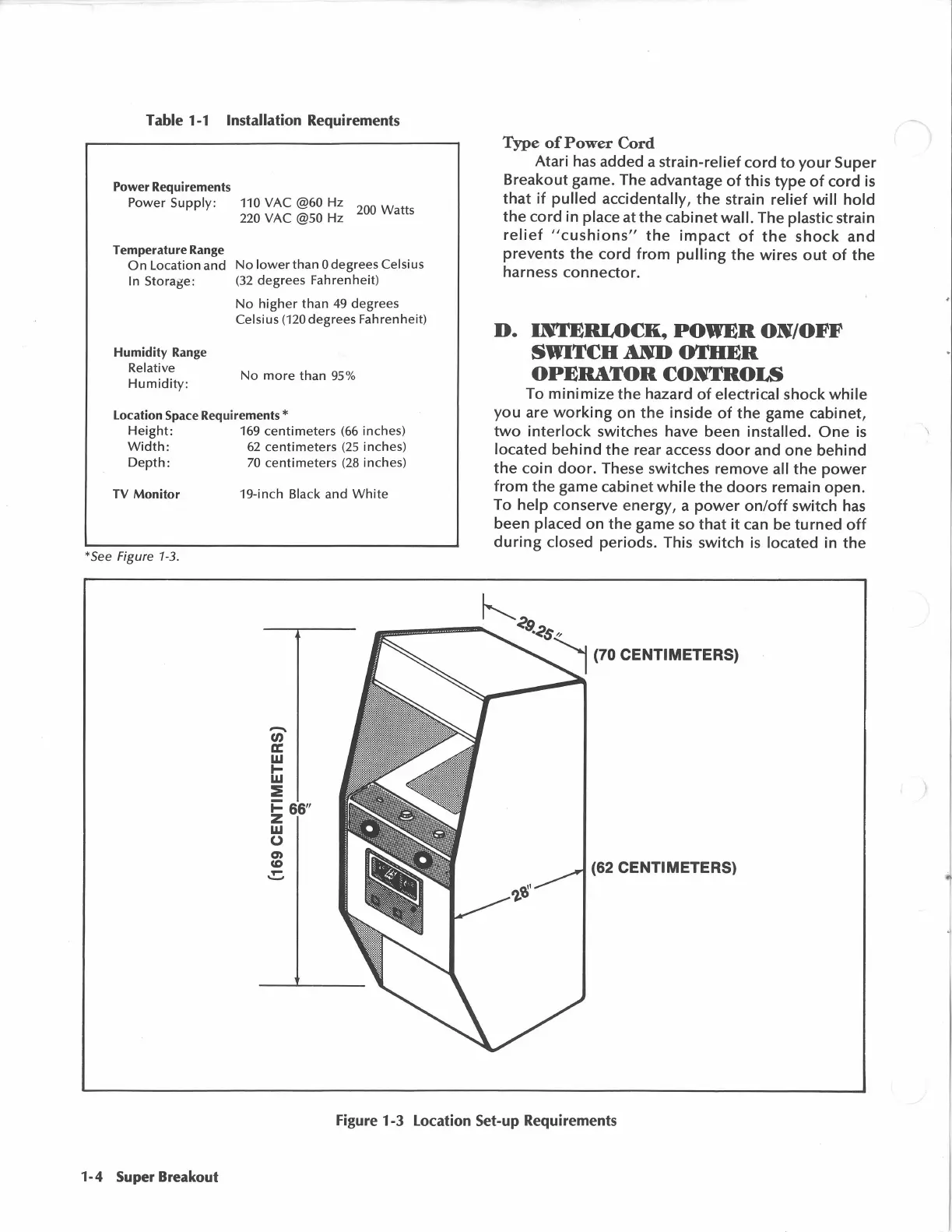

Figure 1-3 Location Set-up Requirements
1-4
Super Breakout
