POWER ON/OFF SWITCH
NOTE:
WHEN TROUBLESHOOTING WITH THE
DOOR (S) OPEN, YOU MUST PULL INTERLOCK
PLUNGER OUT WITH THUMB
AND FOREFINGER
AS INDICATED
BY DIRECTION OF ARROW.
INTERLOCK SWITCH

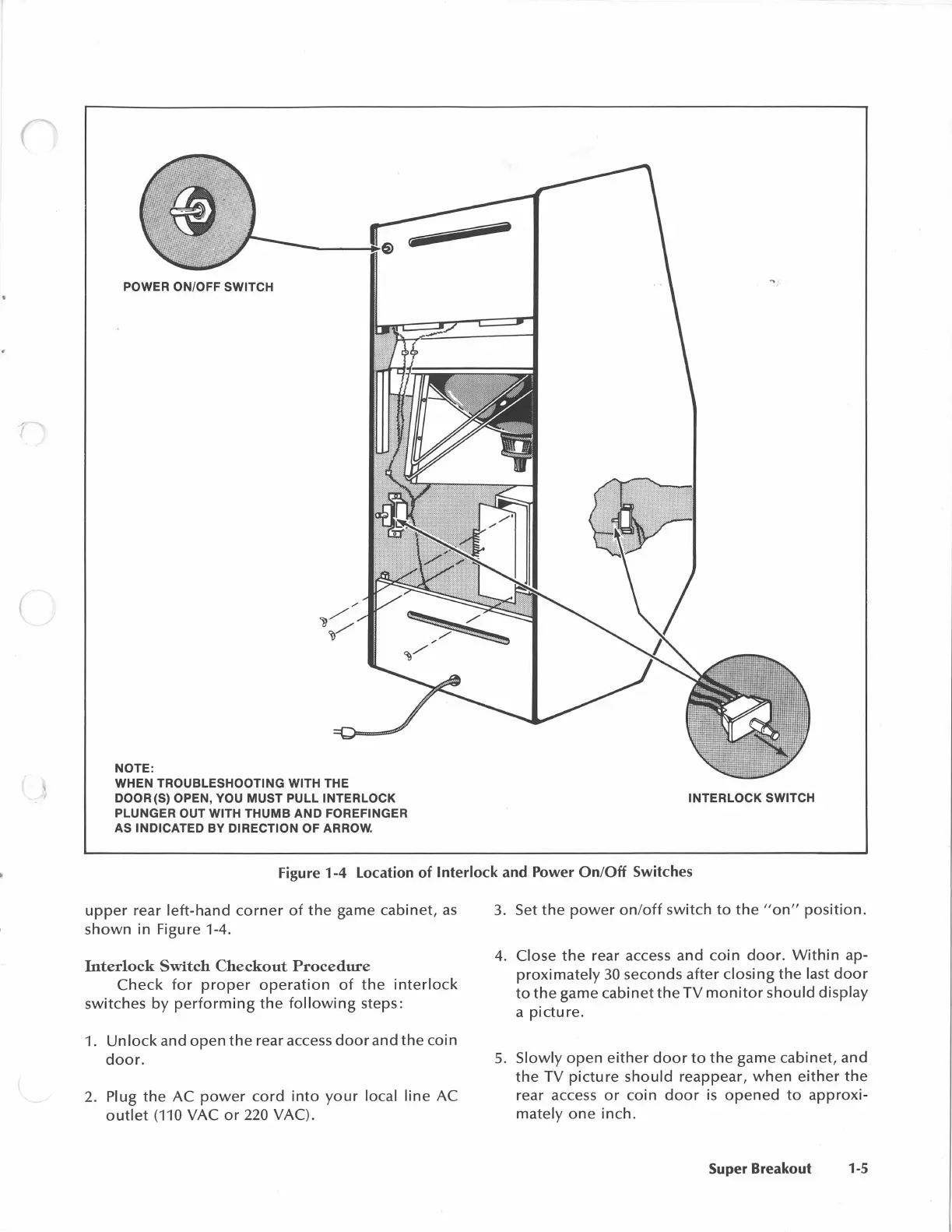

Figure 1-4 Location of Interlock and Power On/Off Switches
upper rear left-hand corner of the game cabinet, as
shown in Figure 1-4.
Interlock Switch Checkout Procedure
Check for proper operation of the interlock
switches by performing the following steps:
1.
Unlock and open the rear access door and the coin
door.
2. Plug the AC power cord into your local line AC
outlet (110 VAC or 220 VAC).
3. Set the power on/off switch to the "on" position.
4. Close the rear access and coin door. Within ap-
proximately 30 seconds after closing the last door
to the game cabinet the TV monitor should display
a picture.
5. Slowly open either door to the game cabinet, and
the TV picture should reappear, when either the
rear access or coin door is opened to approxi-
mately one inch.
Super Breakout 1-5
