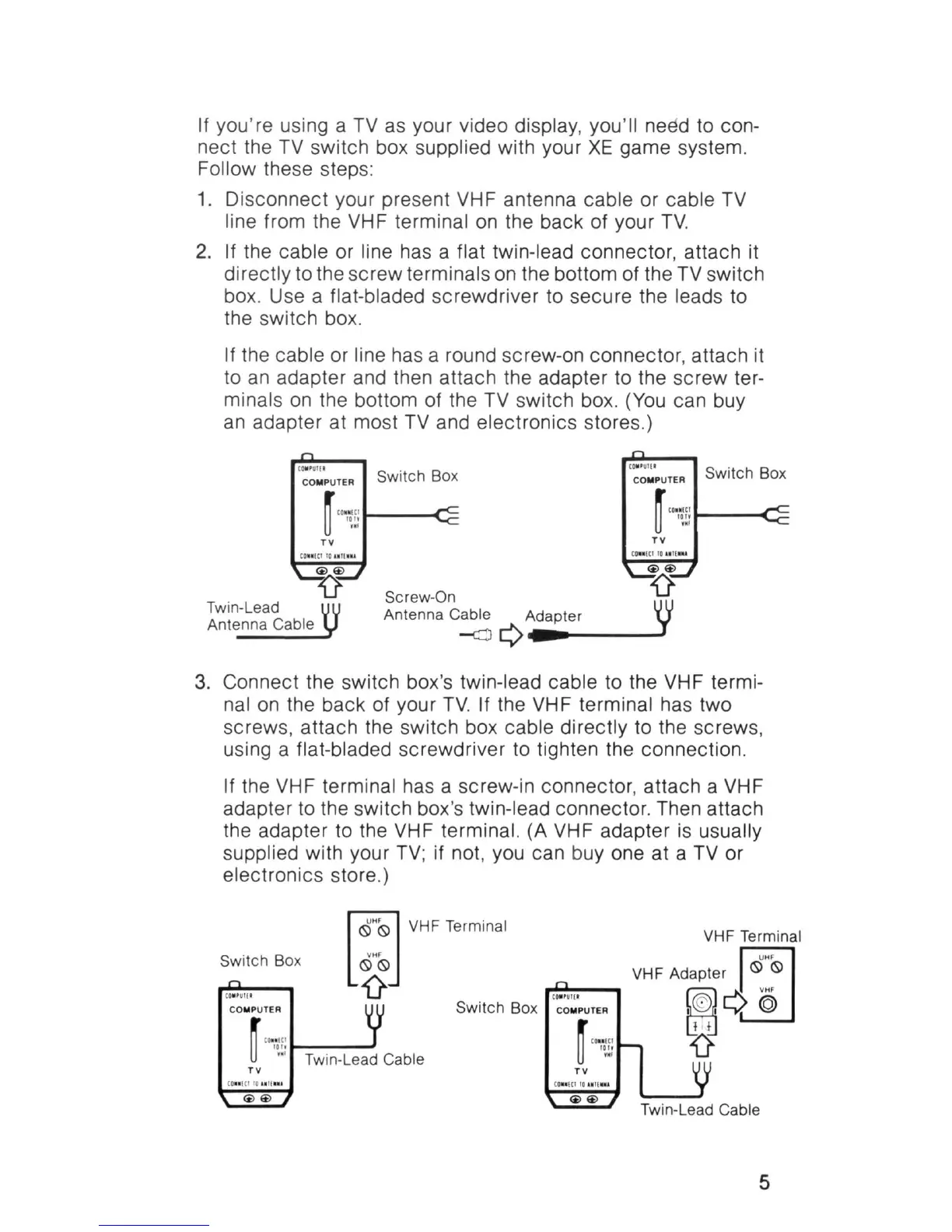

If you '
re
using a
TV
as your video display, you'
II
need to con-
nect the
TV
switch box supplied with your
XE
game system.
Follow these steps:
1.
Disconnect your present VHF antenna cable or cable
TV
line from the VHF terminal
on
the back of your
TV.
2.
If the cable or line has a flat twin-lead connector, attach it
directly to the screw terminals
on
the bottom of the
TV
switch
box. Use a
flat-bladed screwdriver to secure the leads to
the switch box .
If the cable or line has a round screw-on connector, attach it
to
an
adapter and then attach the adapter to the screw ter-
minals
on
the bottom of the
TV
switch box . (You can buy
an
adapter at most
TV
and electronics stores.)
COMPUTER
Switch Box
COMPUTER
Switch
Bo
x
~
"
~
~:;
1---C=
~
C
O
M
1
~1
f
:
1---c=
u
fM
J
TV
TV
Screw-On
Antenna Cable Adapter
-Cl
Q
..
•--
----
3.
Connect the switch box's twin-lead cable to the VHF termi-
nal
on
the back of your
TV.
If the VHF terminal has two
screws, attach the switch box
cable directly to the screws,
using a flat-bladed screwdriver to tighten the connection.
If the VHF terminal has a screw-in connector, attach a VHF
adapter to the switch box 's twin-lead connector. Then attach
the adapter to the VHF terminal. (A VHF adapter
is
usual
ly
supplied with your
TV;
if not, you can buy one at a
TV
or
electronics store.)
VHF
Term
inal
VHF Terminal
Switch
B
ox
COMPUTER
Switch Box
COMPUTER
~
'",:
::;
t----'
U
Tw
in
-L
ead Cable
~
.
..
. ,
..
u
~
~!:
TV
TV
Twin-Lead Cable
5
