Note: If the VHF terminal connections
on
your
TV
are different
from those shown here , refer to your
TV
manual or contact a
TV
service center.
4.
If you like, pull the cover off the adhes i
ve
sqLJare
on
the
back of the switch box, then stick the switch box
securely
to your
TV.

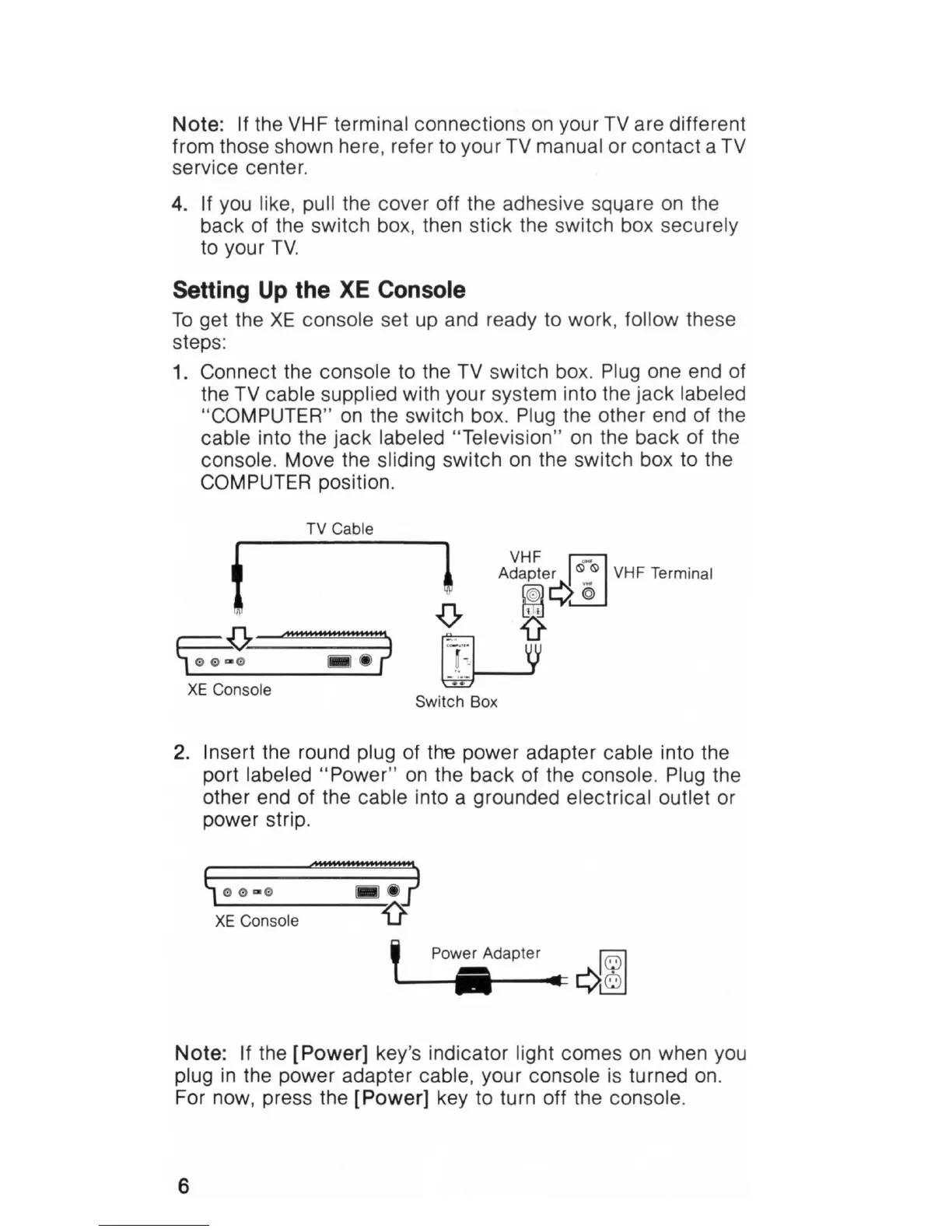

Setting
Up
the XE Console
To
get the
XE
console set
up
and ready to work, follow these
steps:
1.
Connect the console to the
TV
switch box. Plug one end of
the
TV
cable supplied with your system into the jack labeled
"CO
MPUTER
"
on
the switch box . Plug the other end of the
cable into the jack labeled " Television "
on
the back of the
console. Move the sliding switch
on
the switch box to the
COMPUTER position.
TV Cable
t
~~
""'"":";'?
XE Console
Adapter
~
~
~
VHF Terminal
1 VHF
~
·
[@)
~
@
{7
rili1
00
¥
Switch Box
2.
Insert the round plug of the power adapter cable into the
port
labeled " Power"
on
the back of the console . Plug the
other
end
of the cable into a grounded electrical outlet or
power strip.
s 0 e ae
XE
Console
Note: If the [Power] key's indicator light comes
on
when you
plug
in
the power adapter cable, your console
is
turned
on
.
For now, press the
[Power] key to turn off the console.
6
To Next Page
