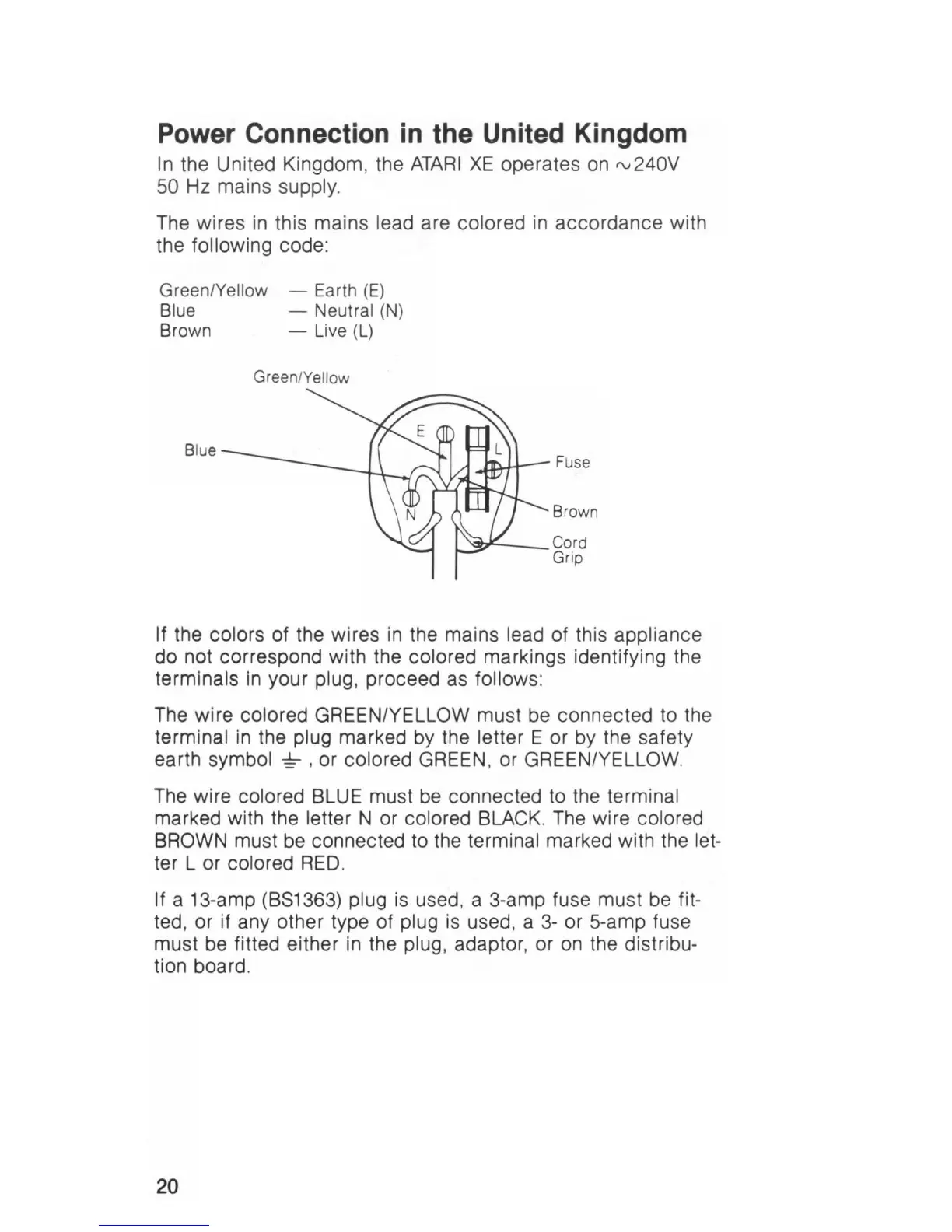

Power Connection
in
the United Kingdom
In
the United Kingdom, the
ATARI
XE
operates
on
rv240V
50
Hz mains supply.
The wires
in
this mains lead are colored
in
accordance with
the following code:
Green/Yellow - Earth
(E)
Blue - Neutral
(N)
Brown - Live
(L)
Green/Yellow
B
lu
e
If the colors of the wires
in
the mains lead of this appliance
do not correspond with the colored markings identifying the
terminals
in
your plug, proceed as follows:
The wire colored GREEN/YELLOW must be connected to the
terminal
in
the plug marked by the letter E or by the safety
earth symbol
-:l:
, or colored
GREEN
, or GREEN/YELLOW.
The wire colored BLUE must be connected to the terminal
marked with the letter N or colored BLACK.
The
wire colored
BROWN
must be connected to the terminal marked with the let-
ter L or colored
RED
.
If a 13-amp (BS1363) plug
is
used, a 3-amp fuse must be fit-
ted, or if any other type of
plug
is
used, a
3-
or 5-amp fuse
must be fitted either
in
the plug , adaptor, or
on
the distribu-
tion board.
