Operating instructions AQUAMAX
®
BASIC/CLASSIC
ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com /
Art.-No.: 9060 0270 / Status: 09.06.2023 /
Page 22 from 36
ATBcontrol
©
3 Connect - Technical data
Casing
Material: ABS with CR sealing material
Type of protection: IP 54
Dimensions: 200 x 120 x 70 mm (W x H x D), incl. fixing attachments and screwed
connections
Power supply
Input voltage: 230VAC, 50/60 Hz ± 10%
Voltage range: 85-305 V AC
Power consumption: type 2.0W
(with unilluminated display and floating contact switched OFF)
Inputs
1 Digital input: 230V AC, opto-decoupled
Outputs
Output voltage: 230 V AC, 50/60 Hz ± 10%
Nominal load current: 16.0 A (contact rating), ohmic load
Output fuse: T 6.3 A (max. !)

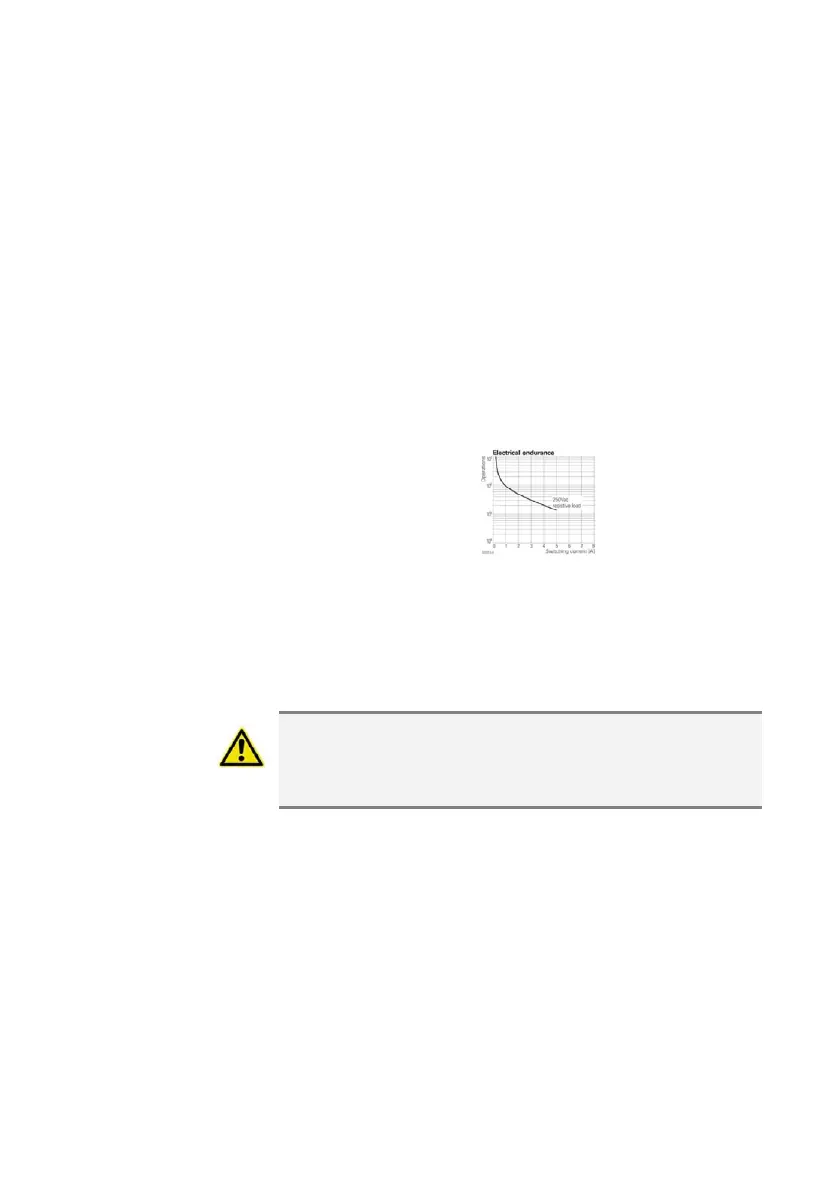

Floating contact
Contact voltage: 250 V AC / 30 V DC
Contact rating: 5A, ohmic load
Temperature range
Equipment function: 0°C to +50°C
Display indicator: 0°C to +50°C
Accumulators: 2xNiMH, 1.2V, Type AA, 2,100 mAH;
Service life: 1000 charge/discharge cycles
with trickle charge: min. 6 years |
25°
with trickle charge: min. 3 years |
45°
ATTENTION!
It is recommended to have the accumulators exchanged every two
years by an authorised specialist firm.
The exchange of the accumulators with batteries is forbidden due to
the danger of explosion!
