PRINCIPLE OF A CYCLE
The measurement cycle is made of 4 main phases: fill, stabilization, test, dumping.
An additional Pressure auto zero phase0 can be placed at the start or at the end of a cycle,
depending on the requirement of the operator.

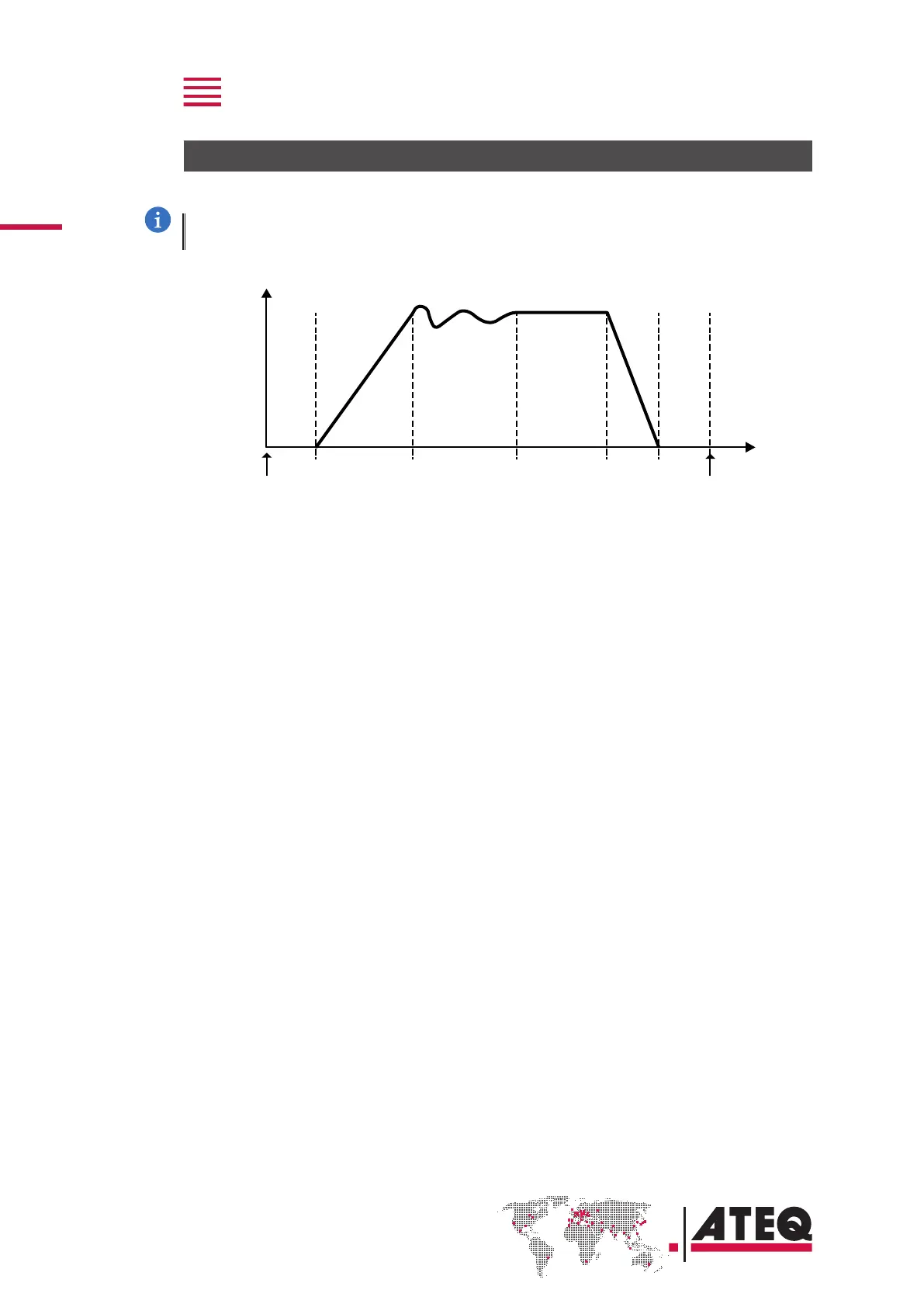

Flow rate
(0) (1) (2) (4) (0)
Time
Cycle start Cycle end
(3)
0 Pressure auto zero phase
1 Fill phase
2 Stabilization phase
3 Test
4 Dumping
