Internal supply only

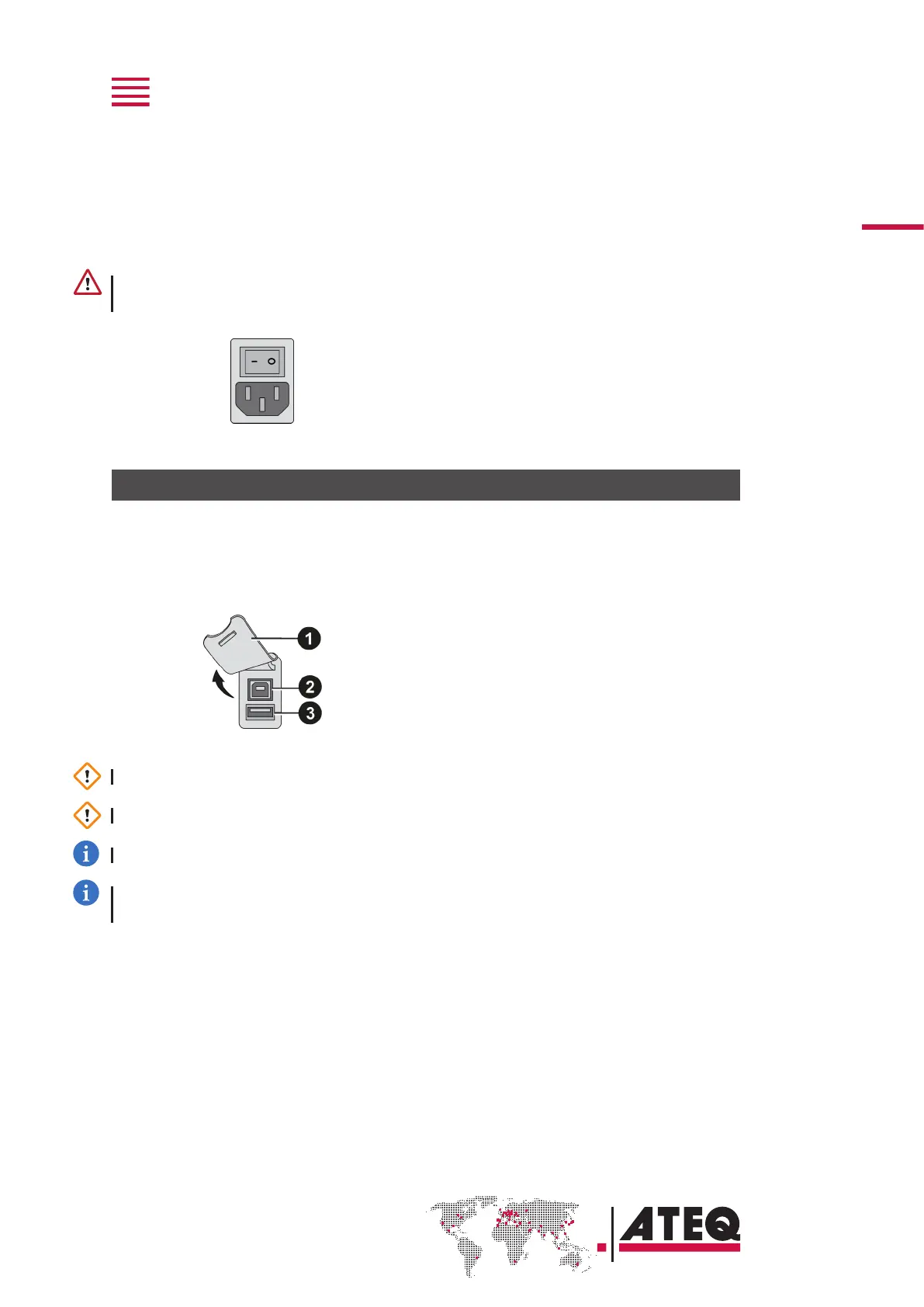

100 / 240 V AC connector (J7) (option)
The device can be connected to a 100/240VAC power supply (option).
This connector has a ON/OFF button.
It is mandatory to connect the device to the ground with a good link to the ground, to protect
against electric hazard or electrocution.
1 ON
0 OFF
DIGITAL LINKS
PC USB connectors (on front face)
USB connectors can be used for connecting miscellaneous compatible USB devices.
The USB connectors are located under the rubber cover1 (see figure).
1 Rubber cover
2 USB connector to PC
3 USB connector to USB key
Do not connect two USB devices at the same time.
Do not use a cable longer than 2 m.
Push the rubber cover1 slightly forward for an easy access to USB connectors2 and3.
Only use this connection for temporary communication. Connection to a PC cannot be used
permanently because the communication can be disconnected by the PC.
