Atlantic Alfea Series User Manual

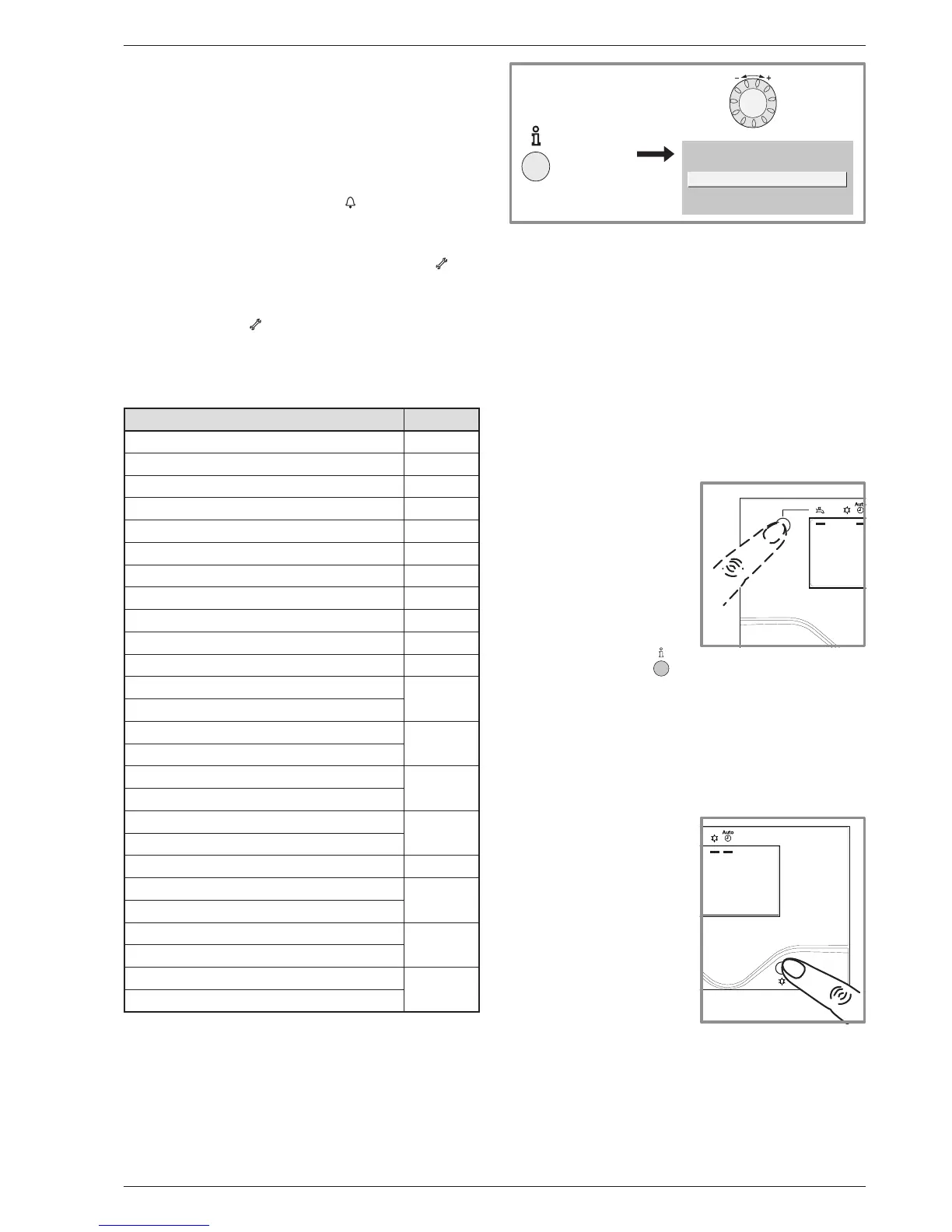

3.7 Information display
Various data can be displayed by pressing the info
button.
Depending on the type of unit, conguration and
operating state, some of the info lines listed below may
not appear.
- Possible error messages from the error code list. The
display shows the "Bell" symbol
.
" Consult your heating technician.
- Possible service messages from the maintenance
code list. The display shows the “Key” symbol
.
" Consult your heating technician.
- Possible special mode messages. The display shows
the “Key” symbol
.
" Consult your heating technician.
Various data (See below).
3.8 Details
If the electrical power supply has been cut off while
the heat pump is operating (electrical power failure or
unprogrammed pressing of the on/off switch on the
hydraulic unit) the display will show error 370 when the
appliance restarts.
Do not be concerned, the communication between the
outdoor and hydraulic unit will re-establish itself in a few
moments.
3.9 Operation of the DHW system
The key enables you to
switch the DHW (domestic
hot water) mode on and
off (If the installation is
tted with a DHW tank with
electrical back-up heating).
The selection is shown by
a bar, which appears under
the corresponding symbol.
Press the info key
to
obtain the details on the
DHW (temperature setting
operation).
To ensure a DHW setting over 45°C, the electrical
backup heating or the boiler must be left on.
3.10 Selecting cooling mode
If the installation is tted with
the cooling kit.
The key activates and
deactivates cooling mode.
gure 9 - Information key
gure 10 - Selecting
the DHW operating mode
(domestic hot water)
gure 11 -
Selecting cooling mode
...
Brief
press
Details of any error
Operating values
Designation Line
Floor drying current setpoint . -
Current drying day. -
Terminated drying days. -
State heat pump. 8006
State supplementary source. 8022
State DHW. 8003
State swimming pool. 8011
State heating circuit 1. 8000
State heating circuit 2. 8001
State cooling circuit 1. 8004
Outdoor temperature. 8700
Room temperature 1.
8740
Room setpoint 1.
Flow temperature 1.
8743
Flow temperature setpoint1.
Room temperature 2.
8770
Room setpoint 2.
Flow temperature 2.
8773
Flow temperature setpoint 2.
DHW (domestic hot water) temperature. 8830
Heat pump return temperature.
8410
Setpoint (return) HP.
Heat pump ow temperature.
8412
Setpoint (ow) HP.
Swimming pool temperature.
8900
Swimming pool temperature setpoint.
Operation manual "1328 - EN" - 15 -
Split system
