2 Overall view of the installation
Your heat pump has been congured by your installer. It
is composed of the following main elements :
- The outdoor unit is positioned, as its name indicates,
outside your dwelling and extracts energy from the
outside air.
- The hydraulic unit positioned in your boiler room, cellar,
garage or even your kitchen, transfers the energy to
the heating circuit (and the domestic hot water).
- The outdoor sensor detects the outdoor temperature.
Optional equipment :
- Room thermostat.
- Room control unit.
Heat pumps are systems that can be connected to any
form of low temperature heat distribution systems : the
heat captured by the heat pump can therefore be used
in different ways :
- Floor-heating systems.
- Radiators or fan coil heaters.
- Domestic hot water (DHW).

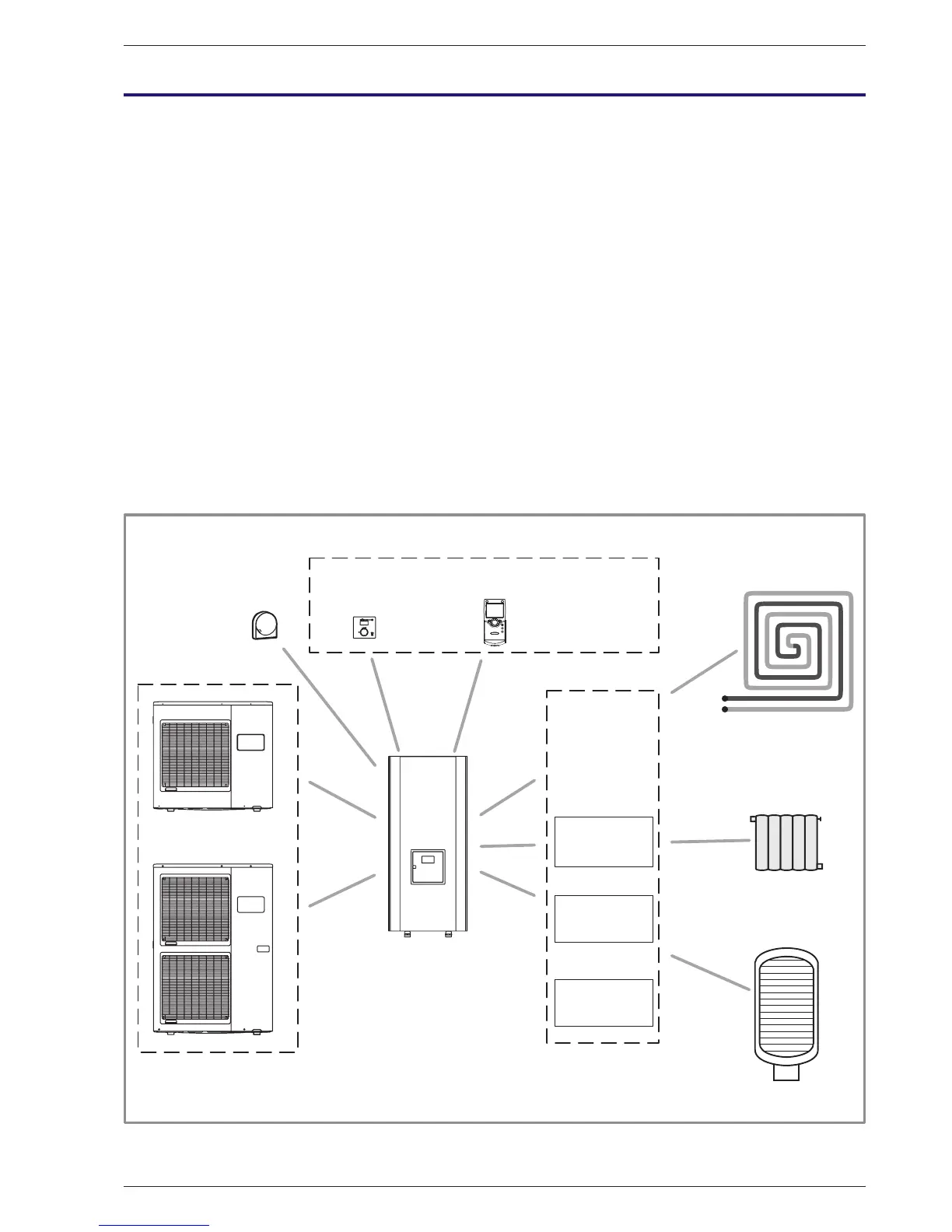

gure 1 - Overall view of the conguration of a complete installation
Room
control unit
or / and
Options
depending
on the system
congurations
Room
thermostat
Outdoor
sensor
Control options
2nd circuit kit
DHW kit
Boiler
connexion kit
The outdoor unit
The hydraulic unit
DHW tank
(with electrical
back-up heating)
Heating circuit
Radiators or
fan convectors
Heating circuit
Floor heating system
or
Operation manual "1328 - EN" - 5 -
Split system
