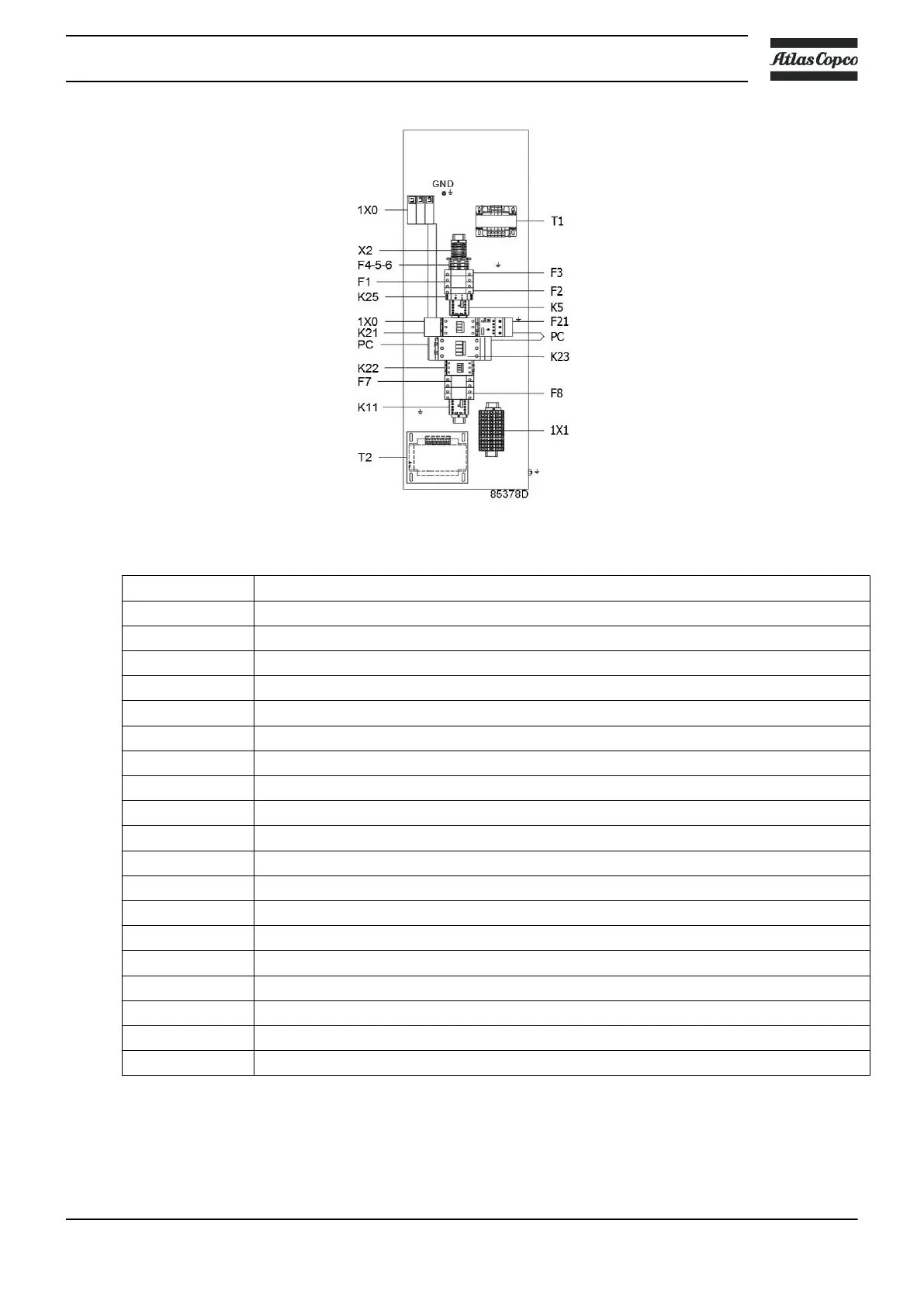

Electric cubicle cULus / cCSAus
Reference Designation
F1 Primary fuse, transformer of the control circuit
F2 Phase sequence relay fuse
F3-4-5-6 Fuses
F7 Primary fuse, transformer of the dryer
F8 Secondary fuse, transformer of the dryer
F21 Motor overload relay
K5 Auxiliary circuit relay
K23 Delta contactor
K21 Line contactor
K11 Dryer relay (only on Full-Feature)
K22 Star contactor
K25 Phase sequence relay
PC Protection cover
T1 Control transformer
T2 Dryer transformer
1X0 Terminal block, power supply
X2 Terminal block of the control circuit
1X1 Terminal block, voltage change of the motor (only on tri-voltage units)
1XM Terminal block, main motor
Instruction book
