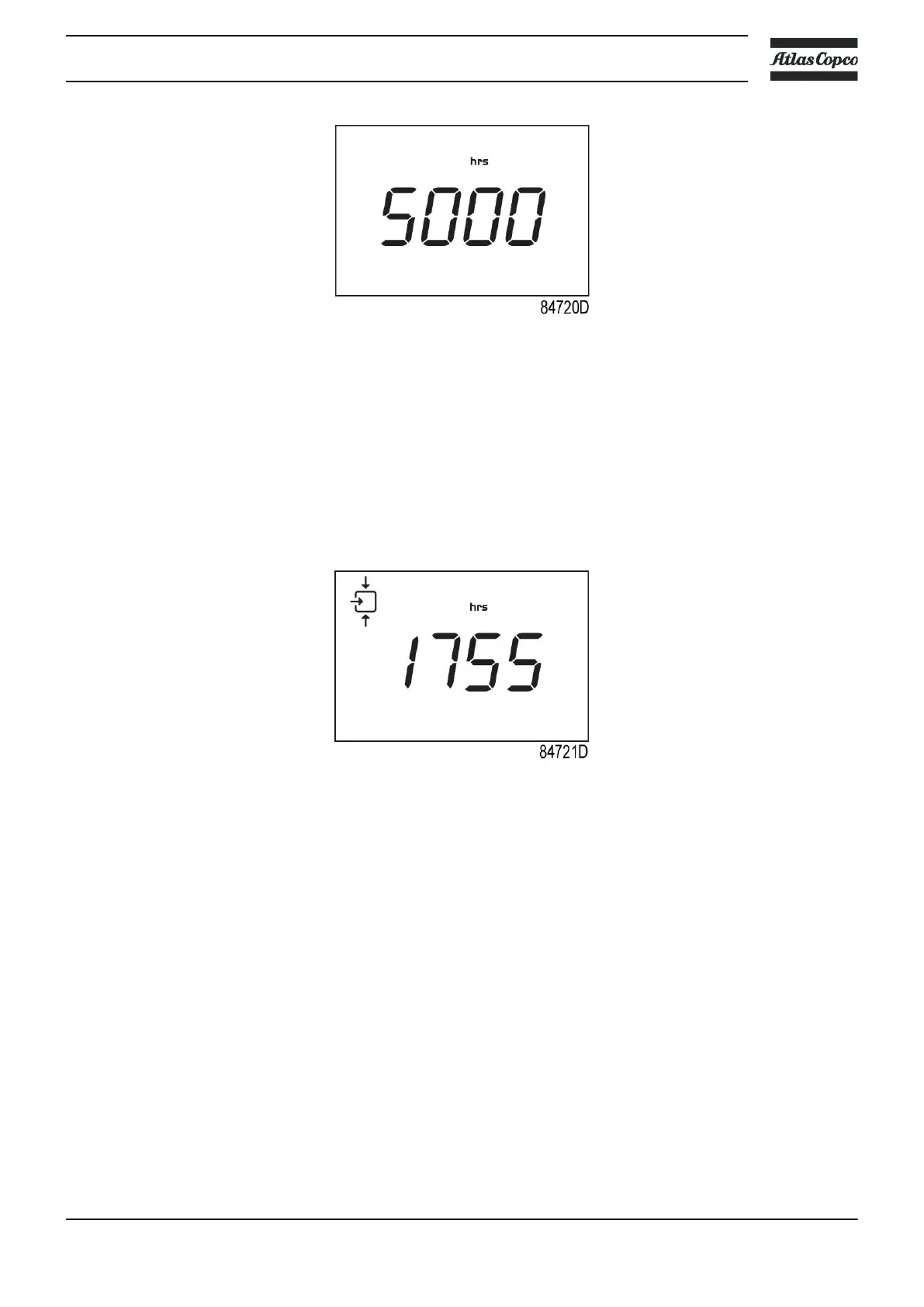

In the example shown, the screen shows the unit used <hrs> and the value <5000>: the
controller module has been in service during 5000 hours.
3.13 Calling up loading hours
Starting from the Main screen:
• Press Enter button (7) for 3 seconds to enter the Main menu.
• Select <dAtA> and press Enter button (7) to enter the Data menu.
• Scroll Up or Down buttons (4-8) until <d.4> and the running loaded symbol is shown.
• Press Enter button (7): the loading time is shown.
The screen shows the unit used <hrs> (or <x1000 hrs>) and the value <1755>: the compressor
has been running loaded during 1755 hours.
3.14 Calling up load solenoid valve
Starting from the Main screen:
• Press Enter button (7) for 3 seconds to enter the Main menu.
• Select <dAtA> and press Enter button (7) to enter the Data menu.
• Scroll Up or Down buttons (4-8) until <d.5> and the running loaded symbol is shown.
• Press Enter button (7): the number of loadings is shown.
Instruction book
2920 7119 21 39
