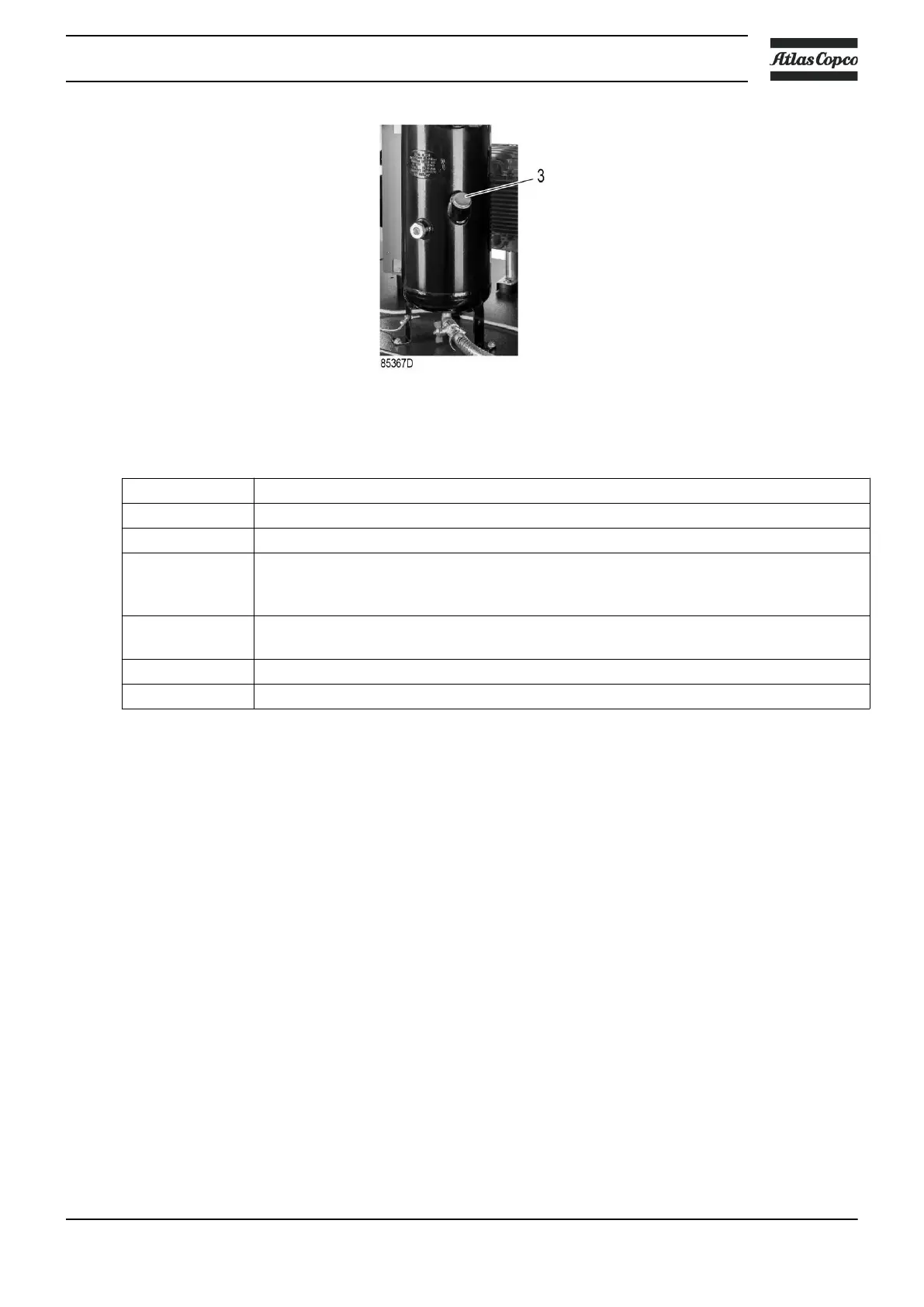

Oil filler plug
This procedure should be carried out at the end of the compressor’s service life.
Step Action
1 Stop the compressor and close the air outlet valve (2).
2 Switch off the voltage and disconnect the compressor from the mains.
3 Depressurize the compressor by opening plug (3) one turn.
Open condensate drain valve (Dm).
Open condensate drain valve (4) of the air receiver.
4 Shut off and depressurize the part of the air net which is connected to the outlet valve.
Disconnect the compressor from the air net.
5 Drain the oil and condensate circuits.
6 Disconnect the compressor condensate outlet and valve from the condensate net.
Instruction book
2920 7119 21 57
