3.12 Test menu

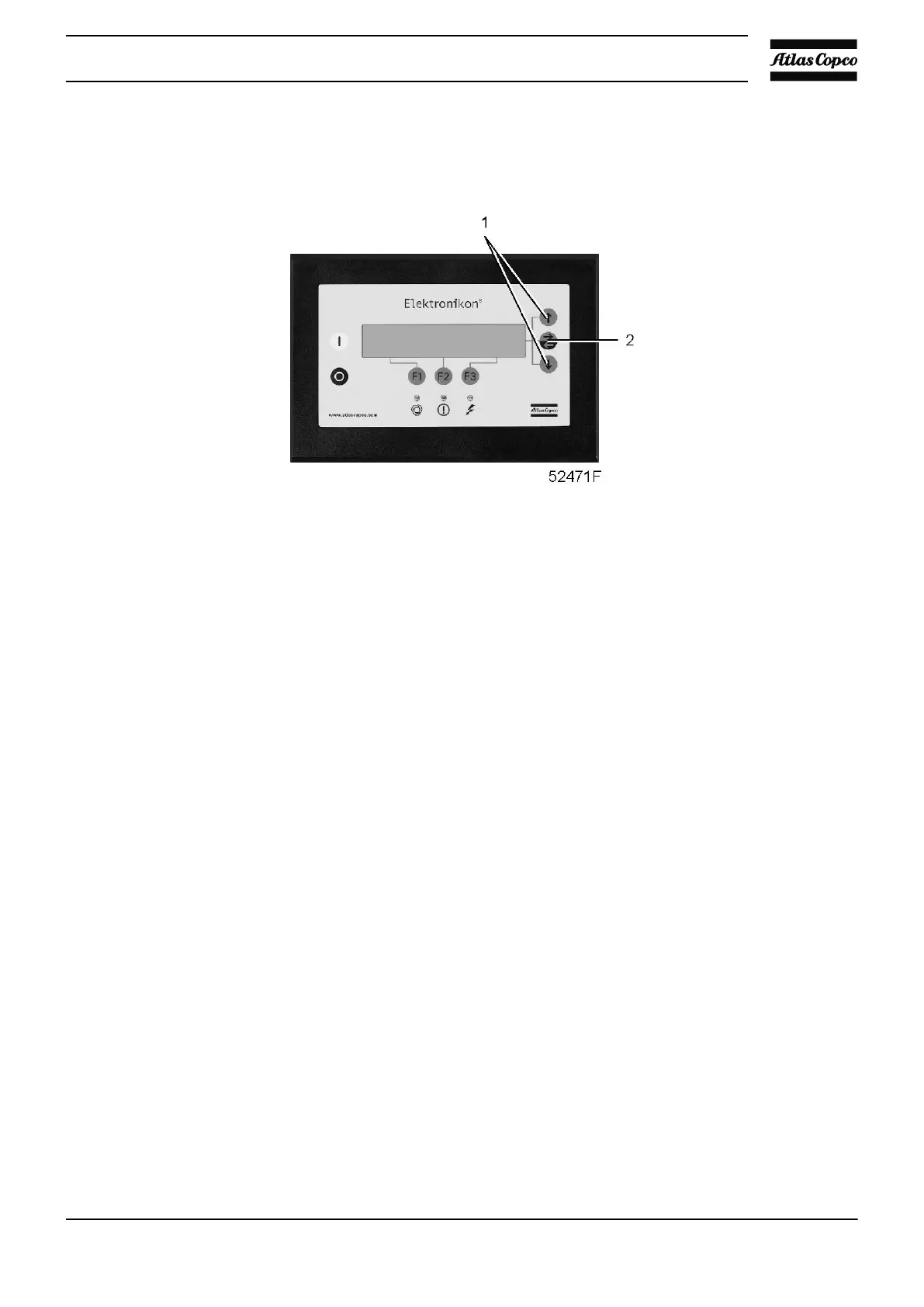

Control panel
Function
To carry out a display test, i.e. to check whether the display and LEDs are still intact.
Procedure
• Starting from the Main screen (see Main screen menu), press the “Menu” (F1) key.
• Press arrow down key (1) until “Test” is followed by a horizontal arrow.
• Activate the menu by pressing the key (2).
To perform a display test:
• If necessary, scroll through the menu until “Display Test” is followed by a horizontal arrow.
• Press the key (2).
• During testing, the regulator will generate a series of patterns on the display which enable the operator to
check that each pixel still functions normally; the LEDs are lit at the same time.
• Press the “Menu” key (F1) to return to the submenu.
3.13 Modify parameters
Function
To modify a number of programmable settings:
• Compressor/motor settings (see section Modifying compressor/motor settings).
• Fan motor settings (see section Modifying fan motor settings).
• Dryer motor settings (see section Modifying dryer motor settings).
• Parameters (see section Modifying parameters).
• Protections (see section Modifying protections).
• Service plan settings (see section Modifying service plan settings).
• Clock function settings (see section Modifying clock function settings).
• Configuration settings (see section Modifying configuration settings).
Instruction book
2920 1728 05 55
