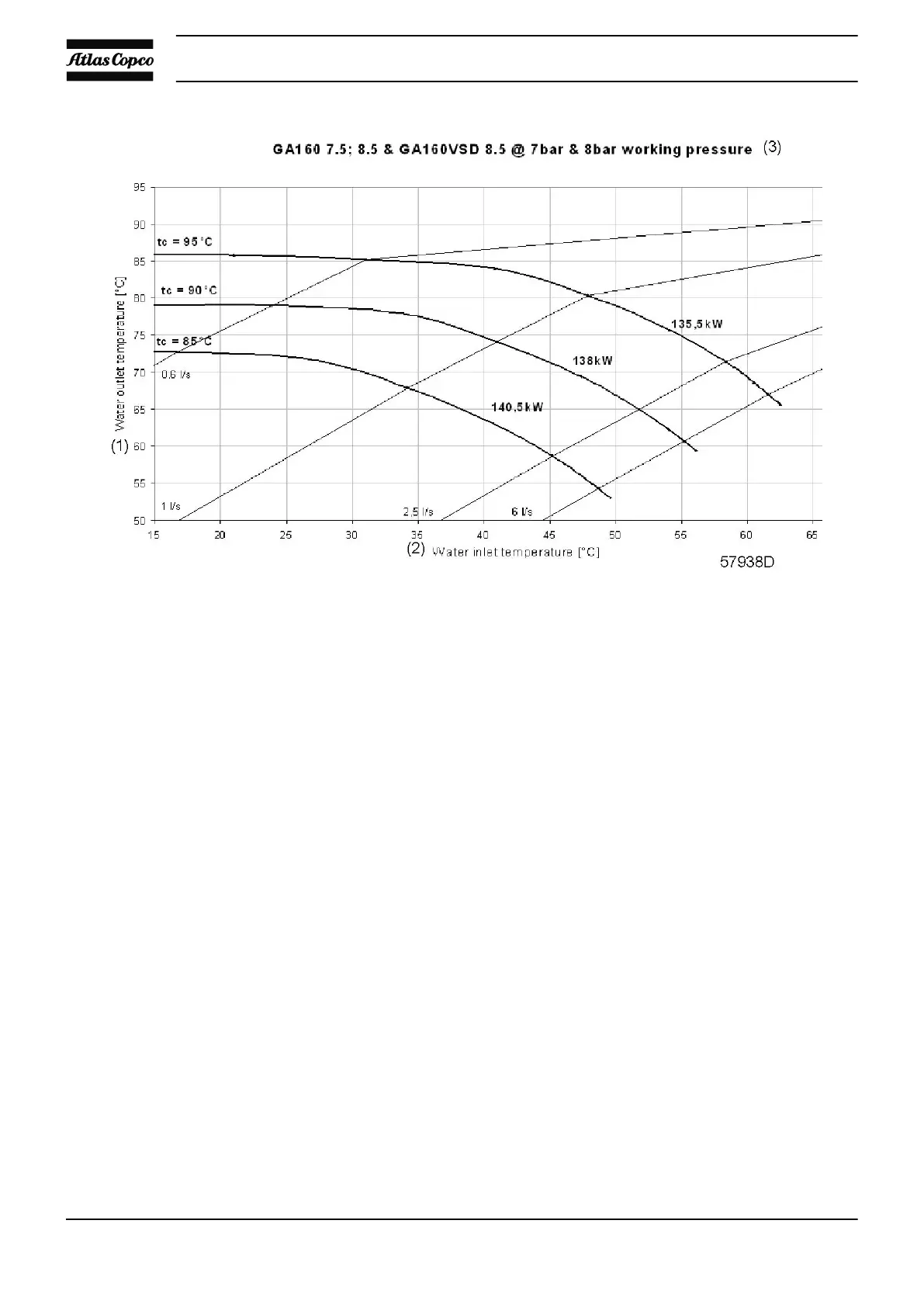

• Compressor unit: GA 160 VSD
• Working pressure: 8 bar / 116 psi
• Water inlet temperature: 30 °C / 86 °F
• Water outlet temperature: 60 °C / 140 °F
The lowest curve is the maximum energy that can be recovered. If it is necessary to work in the area below
the lowest curve, you have to calculate with the 140.5kW anyway.
dT=30 °C/ 54 °F (60 °C - 30 °C / 140 °F - 86 °F)
c = 4.2 J/kgK (for water)
Q= 140.5 kW (lowest curve)
Formula for recovered energy is : ==> Q = m x c x dT
==> m = Q / (c x dT)
==> m = 140.5 / (4.2 x 30)
==> m = 1.115 l/s
Additional safety precautions
• The parts must only be lifted using suitable equipment in accordance with the applicable safety regulations.
Loose or pivoting parts must be securely fastened before lifting.
• Wear a safety helmet when working in the area of overhead or lifting equipment.
• Protect hands to avoid injury from hot machine parts, e.g. during draining of oil.
• Protection caps, bags, etc. must be removed before connecting the pipes.
• Water hoses must be of correct size and suitable for the working pressure.
• The water connections must be free of strain.
• Pipe work or other parts with a temperature in excess of 80˚C (176˚F) must be guarded or insulated. Other
high-temperature pipe work must be clearly marked.
