Instruction book
1 LEADING PARTICULARS
1.1 General description
transformers, fan motor overload relay, etc. is located behind
this panel. The compressor is also provided with an automatic
condensate drain system.
GA Workplace Full-feature
GA Workplace Full-feature are additionally provided with an
air dryer (1-Fig. 1.4) which removes moisture from the
compressed air by cooling the air to near freezing point and
automatically draining the condensate.
GA VSD (Variable Speed Drive) compressors are air-cooled
stationary, single-stage, oil-injected screw compressors, driven
by an electric motor.
GA Workplace (Fig. 1.1)
The compressors are enclosed in a sound-insulated bodywork.
The front panel comprises an emergency stop button (S3) and
an Elektronikon control module (E1) including the start and
stop buttons. An electric cabinet comprising fuses,
E1 Elektronikon control module
S3 Emergency stop button

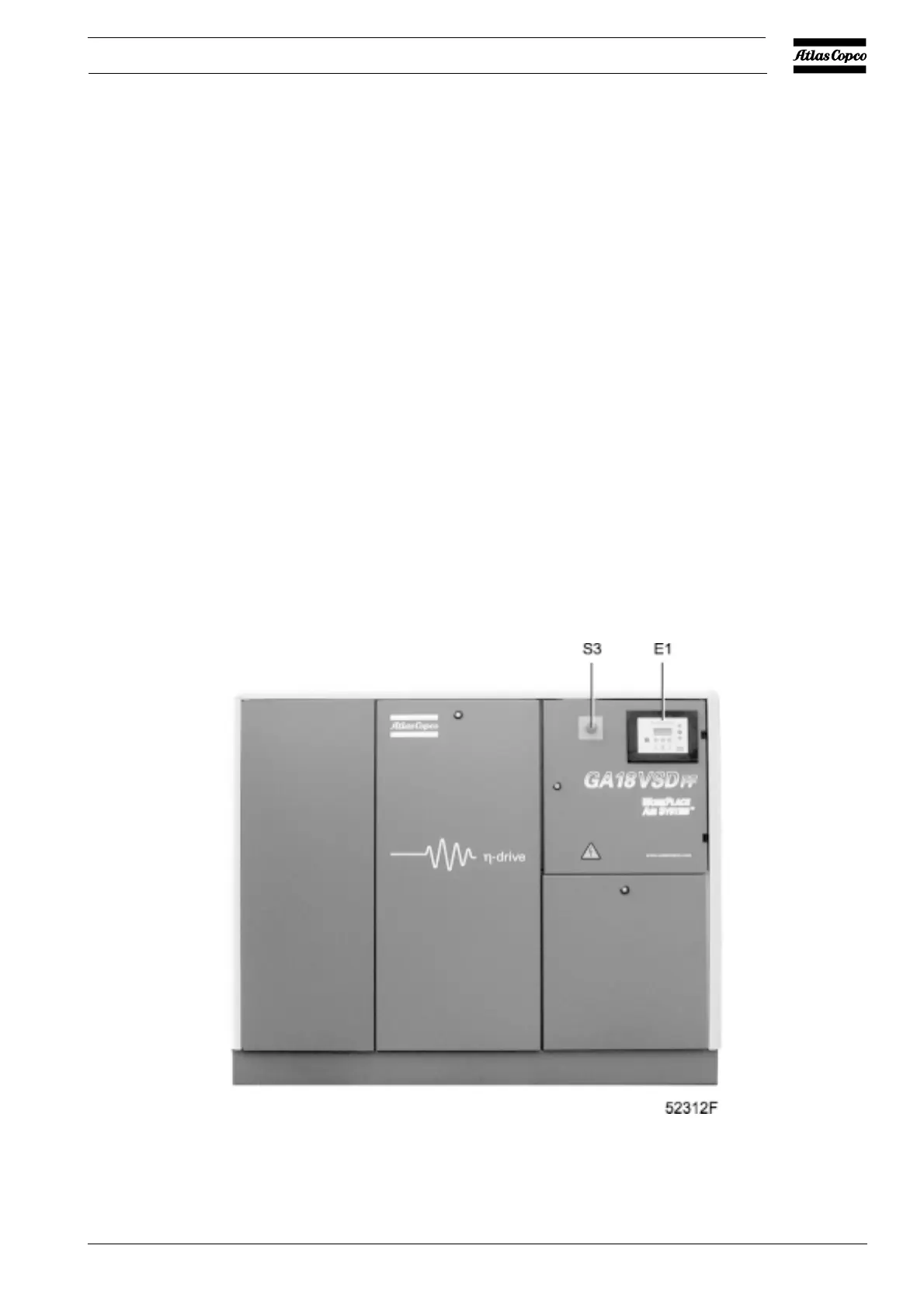

Fig. 1.1 General view of GA18 VSD
