Atlas Copco PHE 26 Series - Mounting SDS-plus Reception; SDS-plus Reception Assembly Steps; Mounting FIXTEC Reception; FIXTEC Reception Assembly Steps

PAGE
12
Repair Instruction No. 169.2/94
PHE 24/26/30-Range

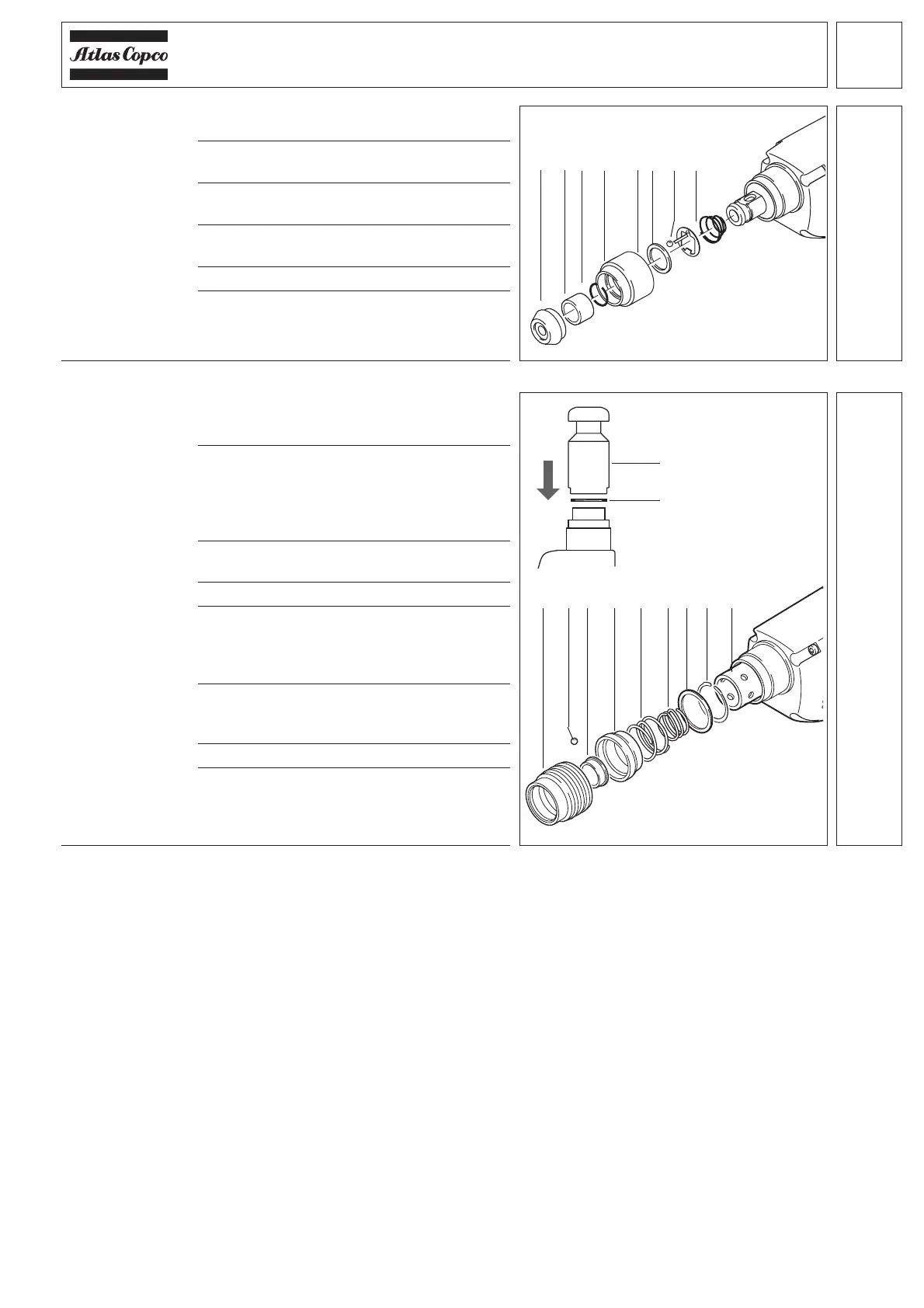

1 Insert the spring (8) and the retaining
disk (7).
2 Depress the retaining disk (7) and insert
the ball (6).
3 Fit the retaining ring (5) and the sliding
sleeve (4).
4 Depress the sliding sleeve and insert the
seal ring (3) into the pass.
5 Fit the spacer (2).
6 Push down the sliding sleeve and fit the
rubber (1).
Mounting the
SDS-plus
Reception
PHE 24 R
PHE 26 R
1
1
12 53 4 786
Mounting the
FIXTEC-reception
PHE 24 RX
PHE 30 RX 2
9
678345 210
2
1
1
2
1 Press in the seal ring (2) with aid of a
sleeve (1) (service tool No. 4931 5990 38)
until it engages.
2 Fit the following parts in this order:
- washer (9)
- inner spring (8)
- outer spring (7)
- locking ring (6)
3 Depress the locking ring (6) and insert the
balls (4).
4 Insert the ejector ring (5).
5 Depress the locking ring (6) (take care that
the balls cannot fall out) and press in the
ejector ring (5) with a used SDS-plus
adapter.
F
Press a locking ring into the spindle in
order to secure the ejector when mounting
the locking sleeve (3).
6 Fix the locking sleeve (3).
7 Remove the locking ring fitted to secure
the ejector.
Carry out a test run and check for strange noises.
Carry out an electrical examination. (See chapter Electrical and Mechanical Test Instruction).
Test run and
electrical
examination
