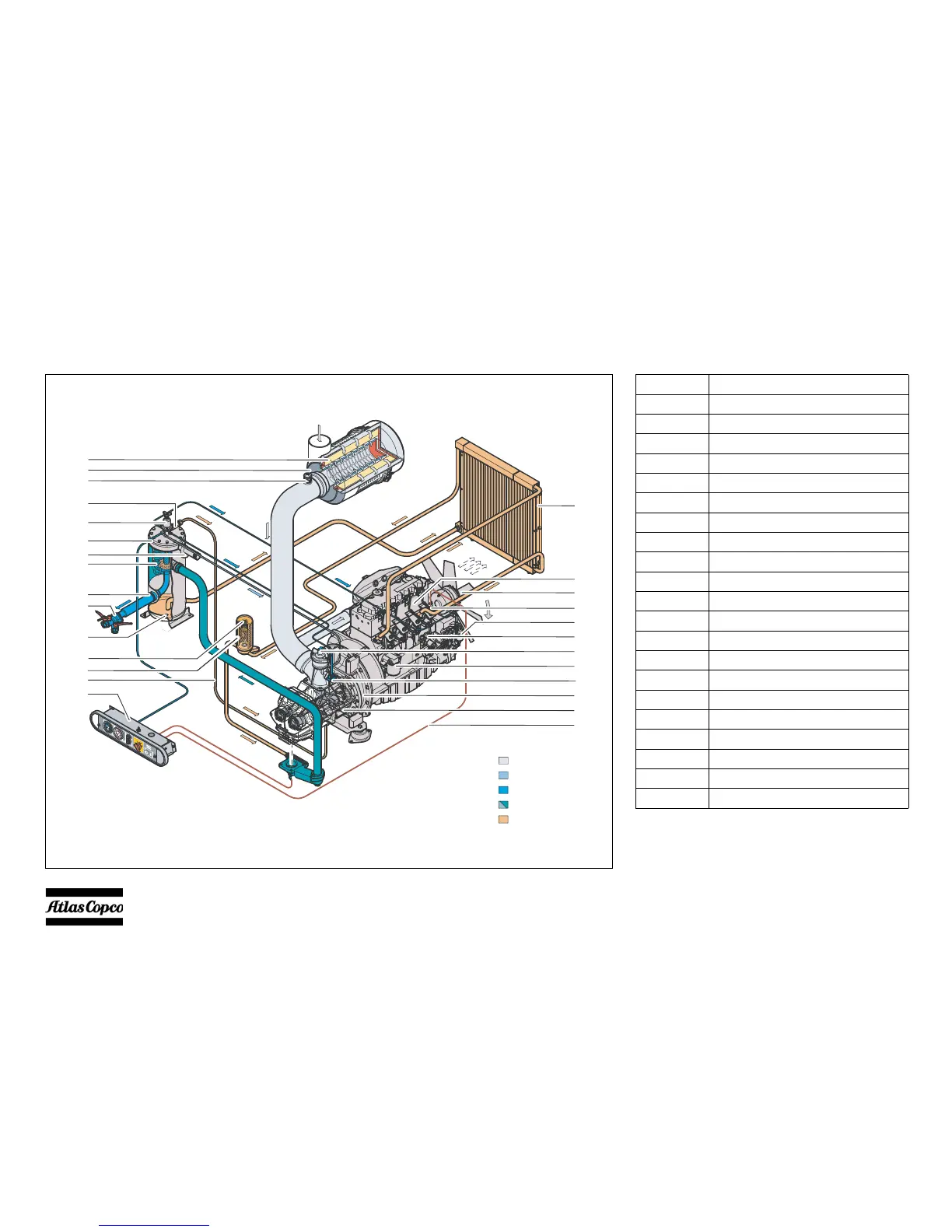

COMPRESSOR REGULATING SYSTEM
OVERVIEW (LOAD CONDITION)
(AFE)
(AFce)
(VI)
(CV)
(RV)
(AR)
(SV)
(OSE)
(R)
(AOV)
(DP)
(BV)
(OFC)
(SL)
(CP)
(OC)
(E)
(F)
(TSE)
(SRE)
(PSE)
(UA)
(OFE)
(BDV)
(CH)
(CE)
(EW)
Air Atmospheric Pressure
Air Regulating Pressure
Air Working Pressure
Air/Oil Mixture
Oil
Reference Name
AFce Air Filter Compressor/Engine
AFE Air Filter Element
AOV Air Outlet Valves
AR Air Receiver/Oil Separator
BDV Blow Down Valve
BV By-Pass Valve Oil Filter
CE Compressor Element
CH Coupling Housing
CP Control Panel
CV Check Valve
DP Drain Plug
EEngine
EW Electrical Wiring
F Cooling Fan
OC Oil Cooler
OFC Oil Filter Compressor
OFE Oil Filter Engine
OSE Oil Separator Element
PSE Pressure Switch Engine
R Restrictor
RV Regulating Valve
