- 30 -
Before starting open the air outlet valve(s) (see
section Compressor regulating system, AOV) and
push circuit breaker button (F1) once (open hood
first). Circuit breaker button should now be in
position B.

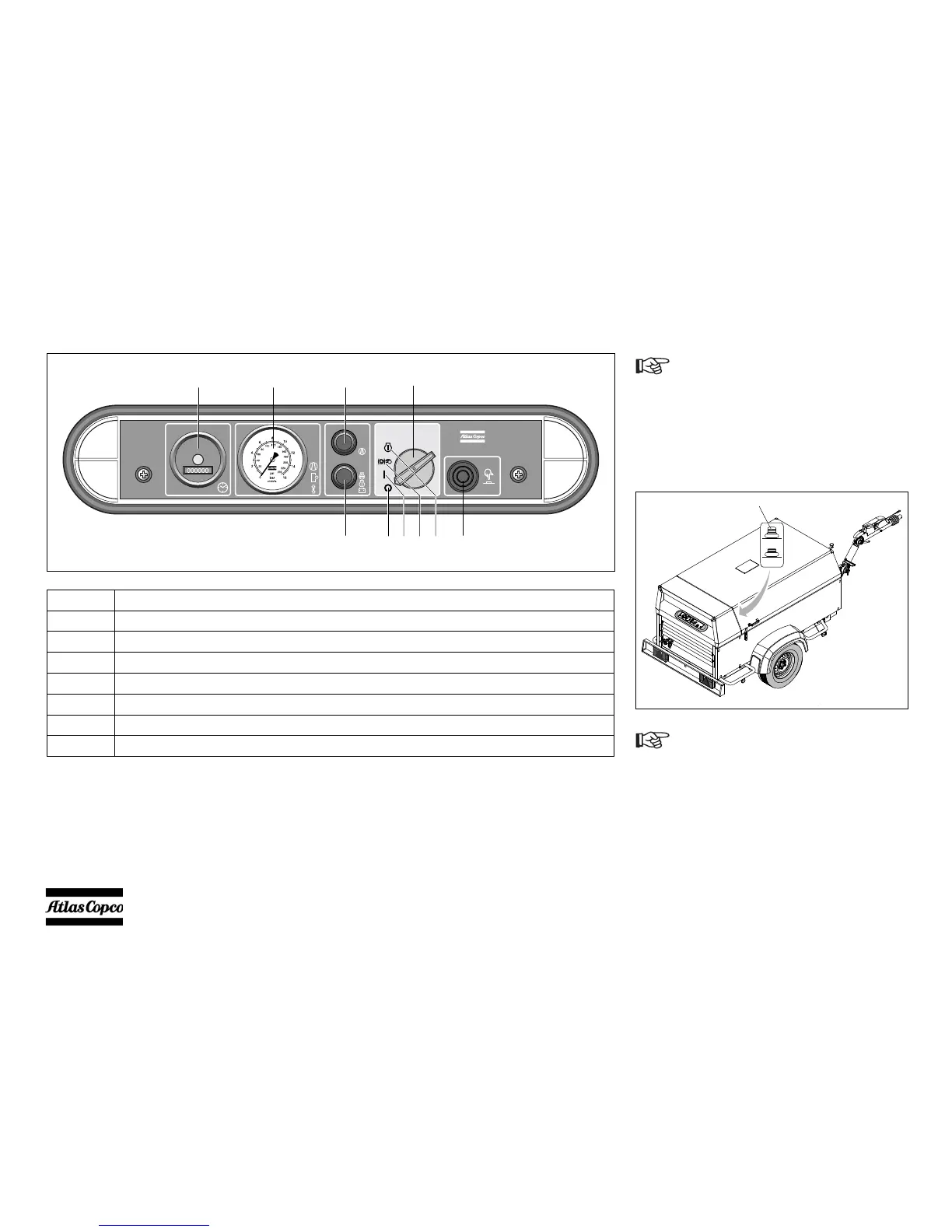

CONTROL PANEL (WITHOUT COLD START)
Reference Name
P1 Hourmeter
F1 Circuit breaker button
PG Working pressure gauge
H1 Temperature alarm lamp (red)
H2 General alarm lamp (red)
S1 Start switch
S4 Lamp test button
The control panel indicates receiver
pressure (PG) and accumulated
operating hours (P1).
The circuit breaker button is a
protection against unintended starting
of the compressor.
