2.3 Main Parts

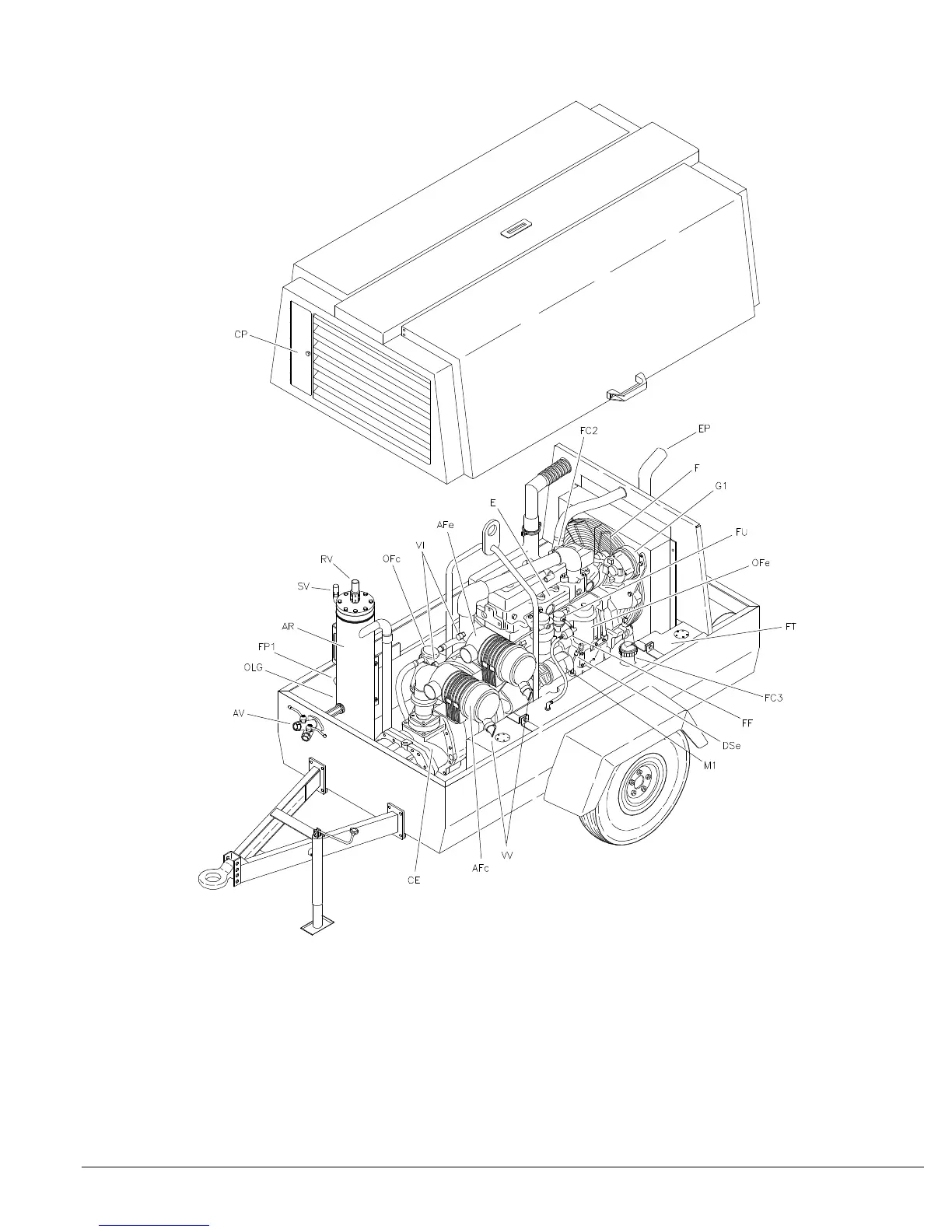

Fig 2.2 Main parts of XAS96 JD
AF Air Filter
AR Air Receiver
AV Air Outlet Valves
BDV Blow Down Valve
CE Compressor Element
CV Check Valve
DB Drive Belt
DP Drain Plug
E Engine
F Fan
FN Flow Nozzle
FP Filling Plug
FR Flow Restrictor
OC Oil Cooler
OF Oil Filter
OLG Oil Level Gauge
OS Oil Separator
PG Pressure Gauge
RV Regulating Valve
SL Scavenge Line
SR Speed Regulator
SV Safety Valve
TS Temperature Switch
UA Unloader Assembly
UV Unloader Valve
VH Vent Hole
VI Vacuum Indicator
