2.7 Electrical System
2.7.1 Circuit Diagram

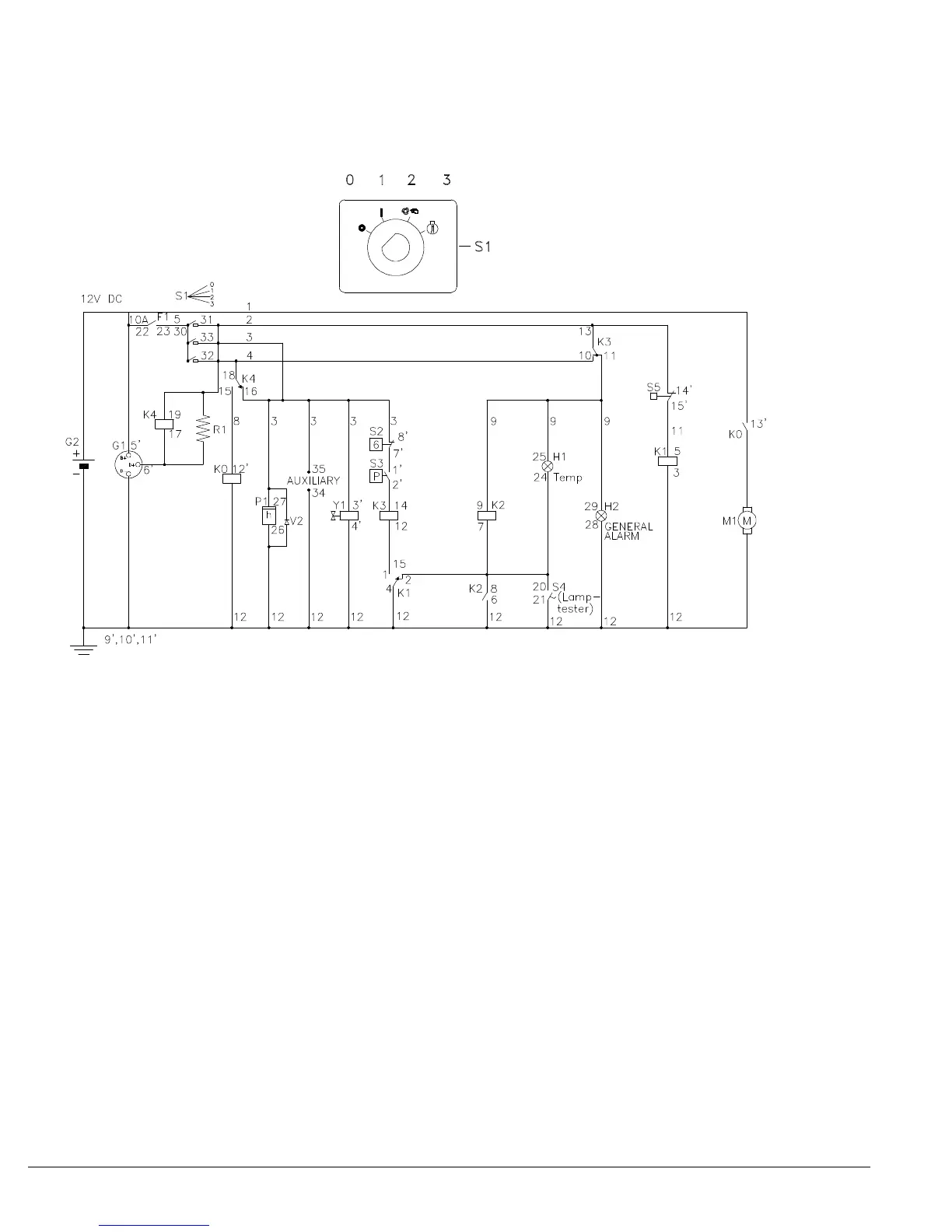

Figure 2.4 Circuit diagram
F1 Circuit breaker (10A)
G1 Alternator
G2 Battery
H1 Temperature alarm
H2 General alarm
K0 Starter solenoid (part of M1)
K1 Relay
K2 Relay
K3 Relay
K4 Relay
M1 Starter motor
P1 Hour meter
S1 Contact switch (Off-On-Override-start)
S2 Temperature switch engine
S3 Oil pressure switch engine
S4 Temperature Lamp test switch
S5 Temperature switch compressor
Y1 Fuel solenoid valve
R1 Resistor
V2 Diode
